Tool Usage

Tool Usage is used to find all the Unique ID Components that have been processed with one or more tools. Like so, in the event of an anomaly in the tool environment, it can be determined which Unique ID Components were processed with this tool and serves as an entry point for further analysis regarding the state of the Unique ID Component.

  1. Open the Part Traceability menu.

  2. Click on Tool Usage.

    pt_tool_usage_view
    Element / Icon Description

    Report Scope

    Defines the Report Scope that is queried

    In case there is no additional Report Scope has been configured, the default Report Scope is used and this input field is not displayed, see Scope Concept and Report Scope Management.

    Tool ID

    Enter Tool Identification Number.
    To edit the entries in an editor, click on list-view.

    Enter Facility ID or Process ID

    Enter Identification Number of a Facility or Process.

    Time Frame

    Define the Time Range via the calendar.

    pt_search_button

    Click to create the Result List

  3. Enter search parameters in the input fields.

  4. Click on Search.

    General information on handling the search parameters and mandatory fields: Search Forms for Creating an Evaluation.

In case more than one result is found, the evaluation is displayed in the Results list, otherwise Part View is opened: Part View of Part Protocol.

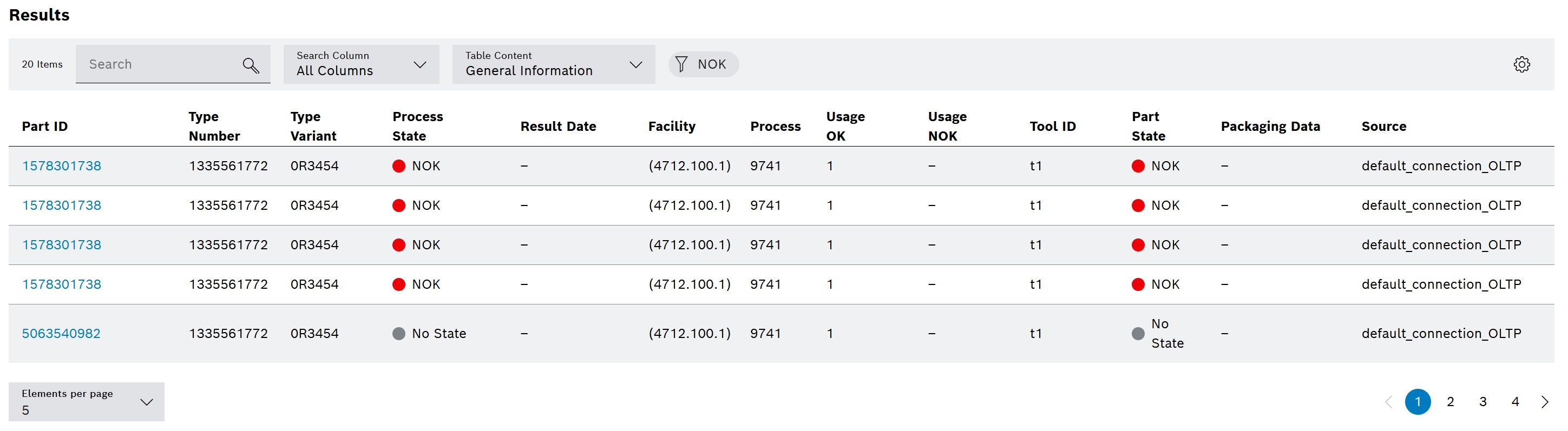

The Result List is displayed. In the header, the General Information view is selected.

pt_tool_usage_result_general
