Process View

The Process View provides a comprehensive overview of the facility and process history of a part. This view graphically presents:

  • The facilities where the part has been processed.

  • The processes the part has undergone.

  • The current status of each process at its respective facility.

Process View is mainly divided into two sections:

  • Part Information: Most important Part Information is displayed in a compact form. In addition, the Part Information provides access to additional information about the part:

    • Packaging

    • Blocks

    • SPC Sessions

    • Additional Information

  • Facility & Process History: Graphical representation of the facilities and processes the part has undergone.

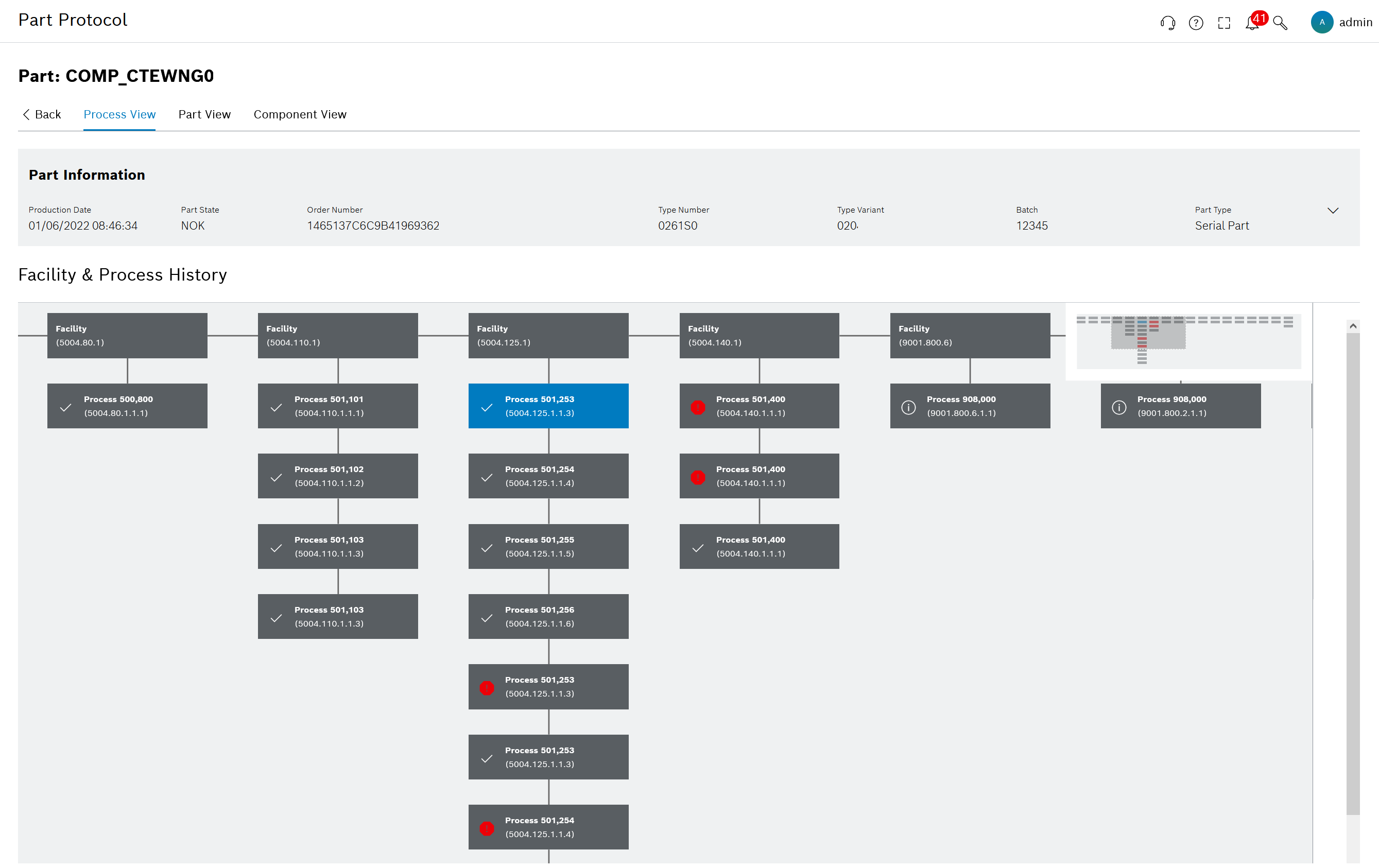

pt_process_view

Use the mouse to navigate and zoom in the graphic or use the overview for navigation.

Element / Icon Description

pt_process_view_navigation

Overview of navigation in the Process View.

checkmark

Process status: OK

alert-error-filled-red

Process status: NOK

alert-info

Process status: UNKNOWN

Tile color

  • Blue:
    Process is selected. The Process Information is displayed.

  • Gray:

    Process is not selected.
