Process Information

The Process Information provides detailed information about the processes that a part has undergone, including Measurements, Unique ID Components, Part Errors, Batch ID Components and Tools.

The process data of a part is displayed in the following views:

  • Part View

    pt_process_data_details
  • Process View

    pt_process_view_details

Find further information on the process states in Process States.

Access Process Information

Option 1

  1. Conduct a search using Part Protocol’s Quick Search or Extended Search.

  2. Click on the Part ID of a part in the Result List to open the Part View.

  3. Click arrow_down in the header of the according facility to expand the Process Information.

    The order of the facilities and processes in the view depends on the Result Date.

    Addional process information is displayed.

    pt_process_data_details

Option 2

  1. Conduct a search using Part Protocol’s Quick Search or Extended Search.

  2. Click on the Part ID of a part in the Result List to open the Part View.

  3. Click on the Component View tab.

  4. Click on a process in the graphical overview.

    Addional process information is displayed.

    pt_process_view_details

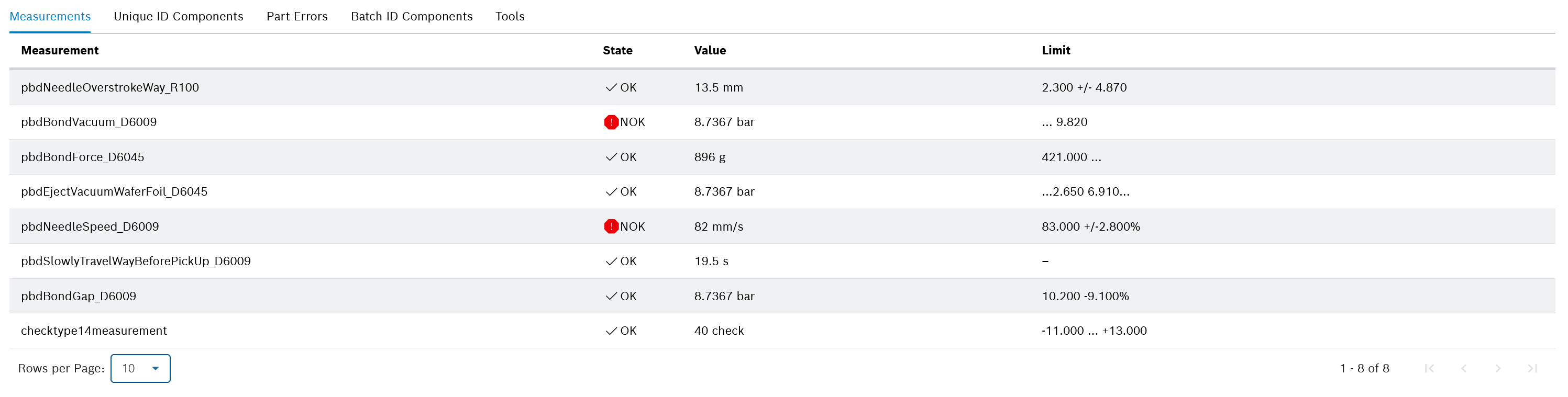

Measurements

The Measurements tab provides detailed data about the measurements taken during the processes a part has undergone. This includes information such as measurement values, units, and timestamps, enabling users to analyze and verify process outcomes effectively.

pt_measurements

Further information on the displayed data can be found in Measurement States.

Unique ID Components

A summary of unique identifier elements ensuring traceability.

pt_part_view_unique_components

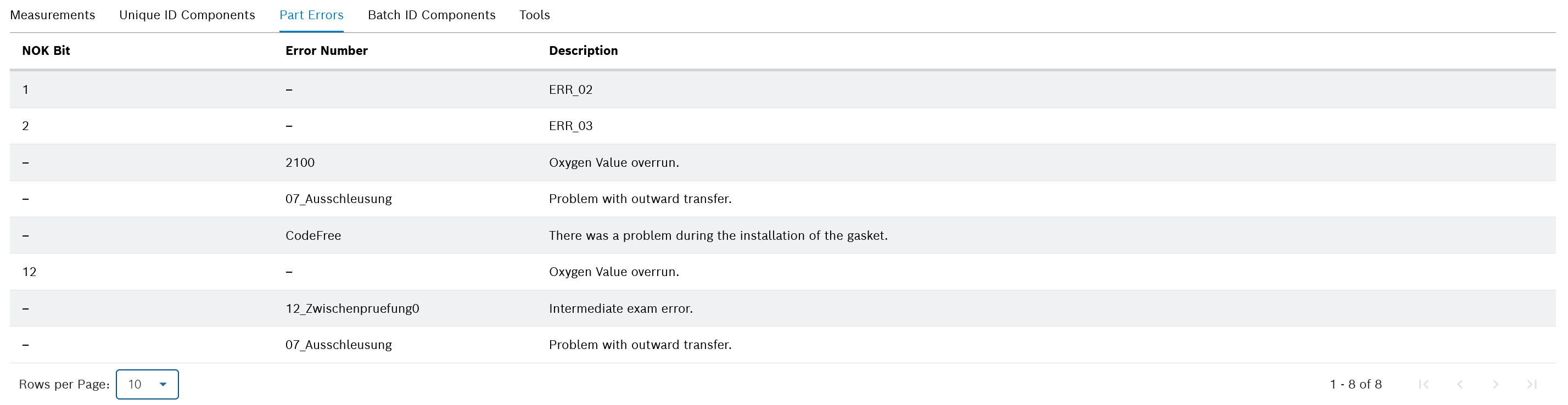

Part Errors

The Part Errors tab details errors encountered during part processing. Each error is accompanied by a unique code and a brief description.

pt_part_error

Batch ID Components

Batch IDs are composed of distinct components that collectively ensure each production batch is uniquely identified.

pt_part_view_batch_components

Tools

The Tools tab lists available tools with their current usage states.

pt_tools_list
