Component View

The Component View shows all components that are installed in a part. Component View is mainly divided into two sections:

  • Part Information: Most important Part Information is displayed in a compact form. In addition, the Part Information provides access to additional information about the part:

    • Packaging

    • Blocks

    • SPC Sessions

    • Additional Information

  • Component Information: Detailed information about the built-in components of a part. Two different views are available:

    • Graphical View.

    • Table View.

In general, two different types of components are distinguished:

cubes Unique ID Components: Each component is identified with a Part ID and a specific Component Type.

cube Batch ID Components: These components can not be uniquely identified but identified via Material ID and a Component Class.

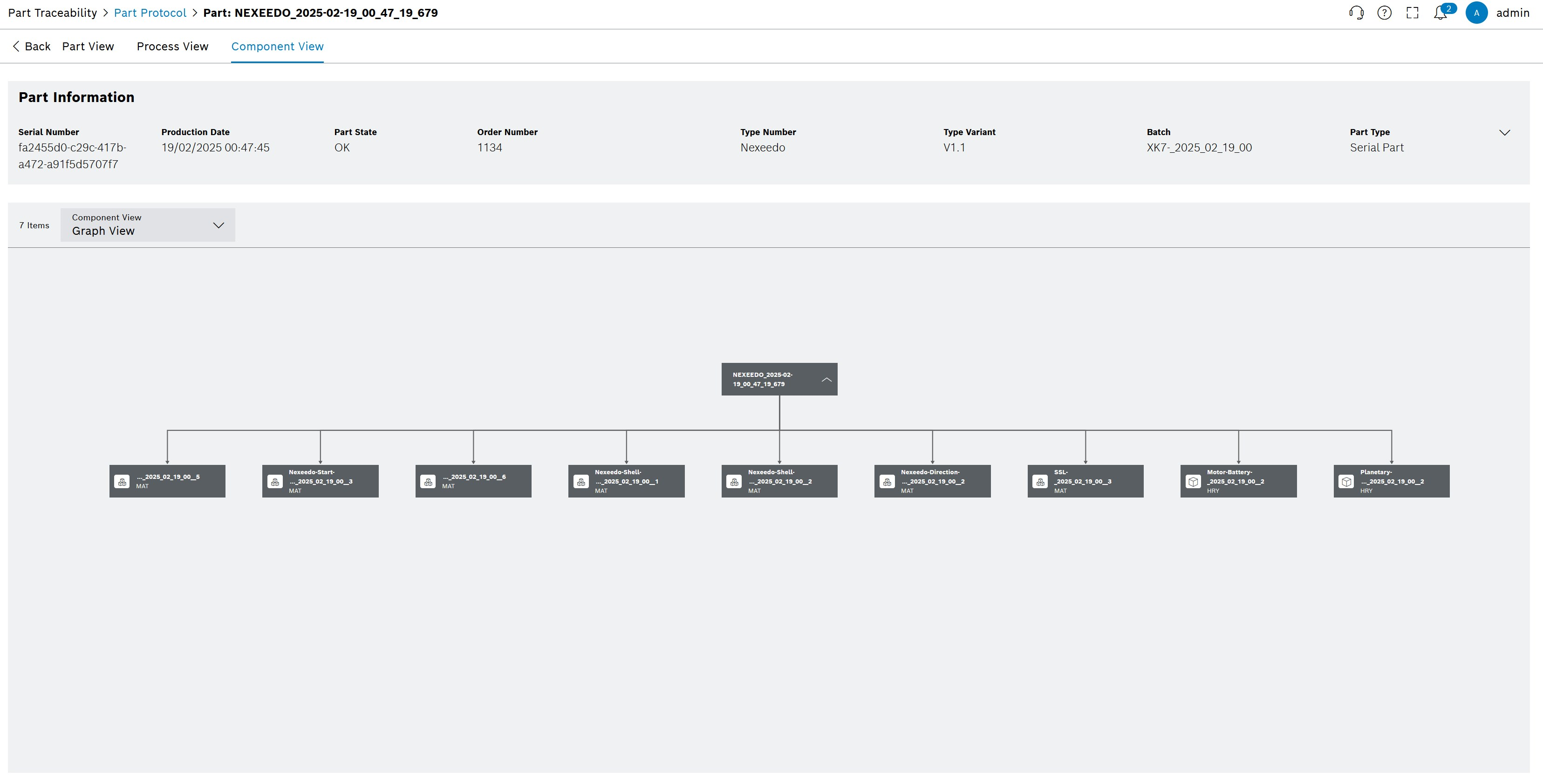

Graphical View

The graphical view depicts Unique ID Components and Batch ID Components as a tree, thus visualizing the nesting of parts and components.

pt_comp_view_graph

Use the mouse to navigate and zoom within the diagram.

Element / Icon Description

<n> entries

Number of entries in the list.

Search search

Enter the search term to filter the entries.

Search Column

Search for the search term in all columns or in a specific column.

Component View

Switch between Graphical View and Table View.

process_tile

Representing a part or component in the tree view.

cube

Identifies the tile of a Unique ID Component with the following information:

  • Part ID

  • Component Type

cubes

Identifies the tile of a Batch ID Component with the following information:

  • Material ID

  • Component Class

pt_quickfilter_disassembled

Shows only parts that have been disassembled during production.

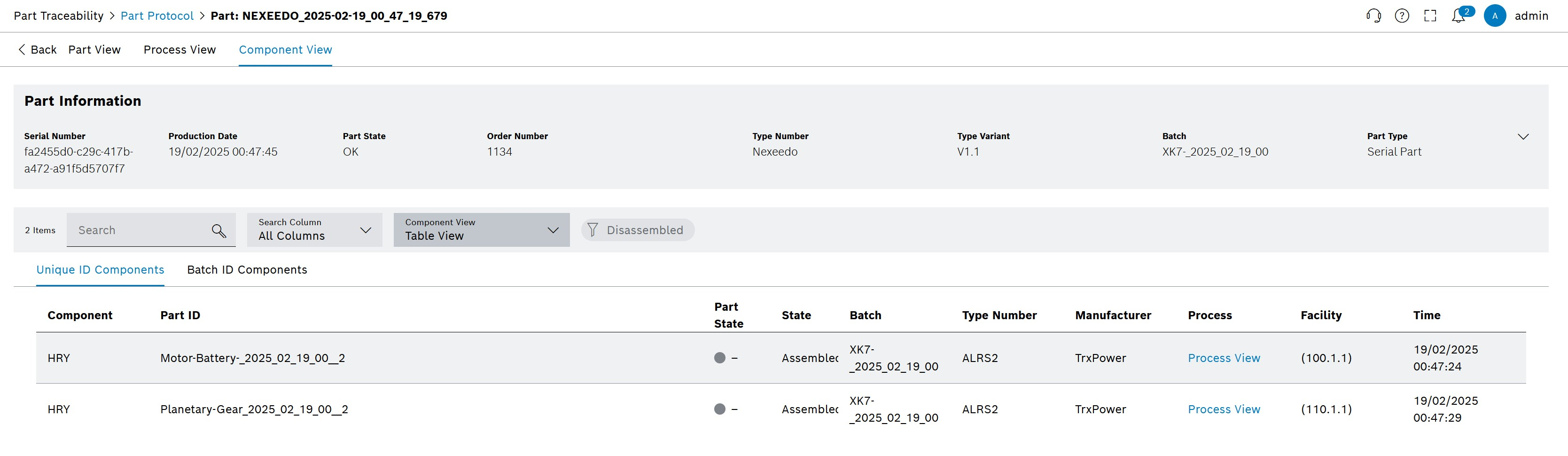

Table view

The table view offers a structured overview of the components installed in a part. It presents component details in a sortable and filterable tabular format. It is distinguish between Unique ID Components and Batch ID Components.

pt_comp_view_list
Element / Icon Description

process_tile

Representing a part or component in the tree view.

cube

Identifies the tile of a Unique ID Component with the following information:

  • Part ID

  • Component Type

cubes

Identifies the tile of a Batch ID Component with the following information:

  • Material ID

  • Component Class

Access Component View

Option 1

  1. Conduct a search using Part Protocol’s Quick Search or Extended Search.

  2. Click on the Part ID of a part in the Result List to open the Part View.

  3. Click on the Component View tab.

    Graphical view of Component View opens

Option 2

  1. Conduct a search using Part Protocol’s Quick Search or Extended Search.

  2. Click on the Part ID of a part in the Result List to open the Part View.

  3. Click the Process View tab

  4. Click on a process tile in the graphical overview.

    Component view opens on the right.

pt_comp_view_in_process_view
