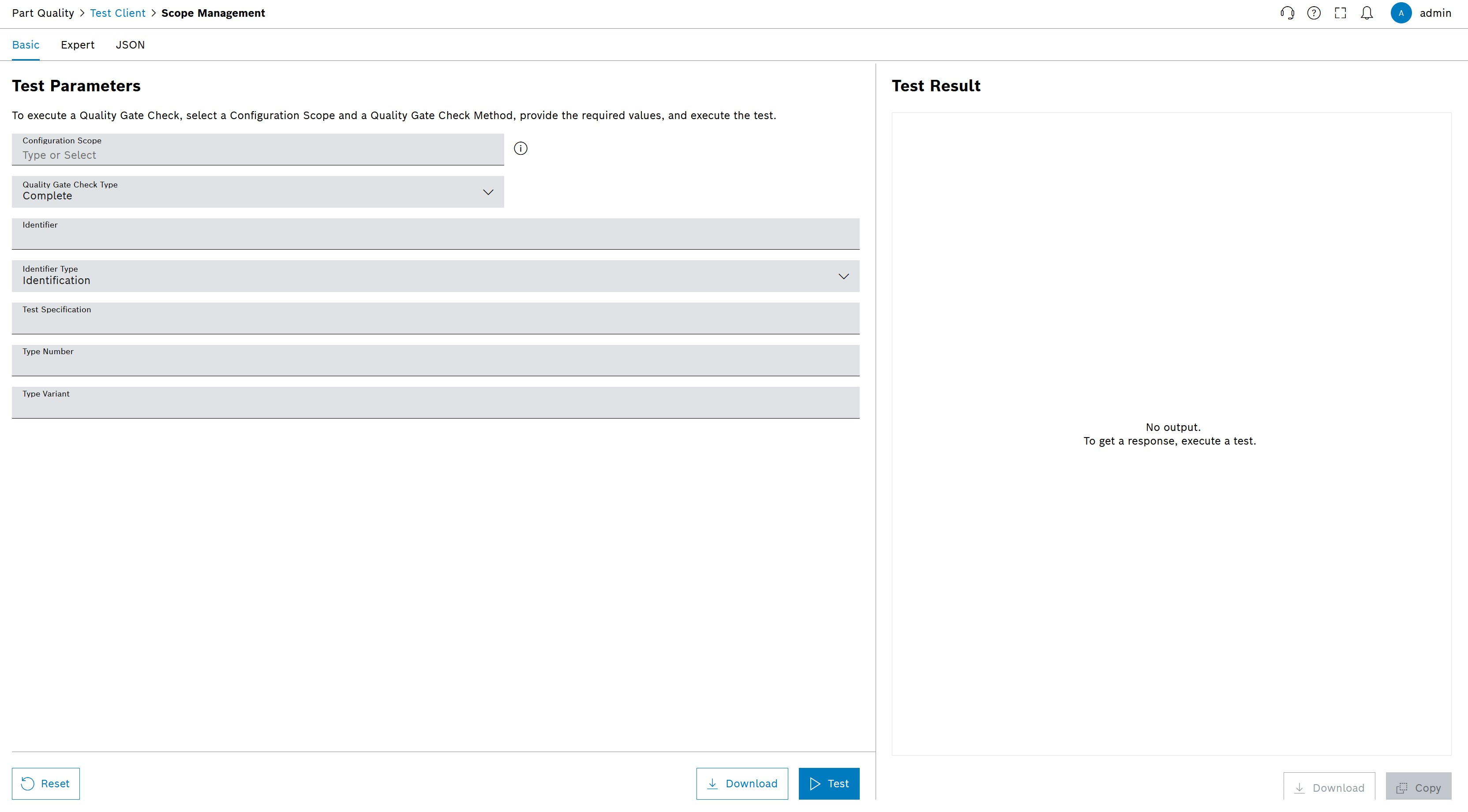

Basic test client

The input in the basic test client is provided via a form. The form based client is used by providing input in predefined input fields. The Test Parameters are provided in the form and can be reset and downloaded. The Test Result is displayed in the user interface and can be downloaded and copied to the clipboard.

Element / Icon

Description

Configuration Scope

Enter the Configuration Scope.

Quality Gate Check Type

Enter the type of Quality Gate Checks

Further input fields depend on the selected Quality Gate Check Type. See, Testing of Test Specifications for more information.

reset_button

Reset all input fields.

download_button

Download

the current state of Test Parameters as .json file.
the Test Result as .json file.

test_button

Run the Test Client with the current Test Parameters.

copy_button

Copy the Test Parameters to the clipboard in JSON format.

Conduct a Quality Gate Check

This section and the following sections are using the check block lists type of Quality Gate Check as an example.

Prerequisite

Products are stored in the quality database.
Import Test Specification(s) has been performed.

Procedure

Open Part Quality > Test Client menu entry.
Select the Configuration Scope and the Quality Gate Check Type.

The input fields change depending on the selected Quality Gate Check Type.
Enter the Test Parameters in the input fields.
Click on to run the Test Client.

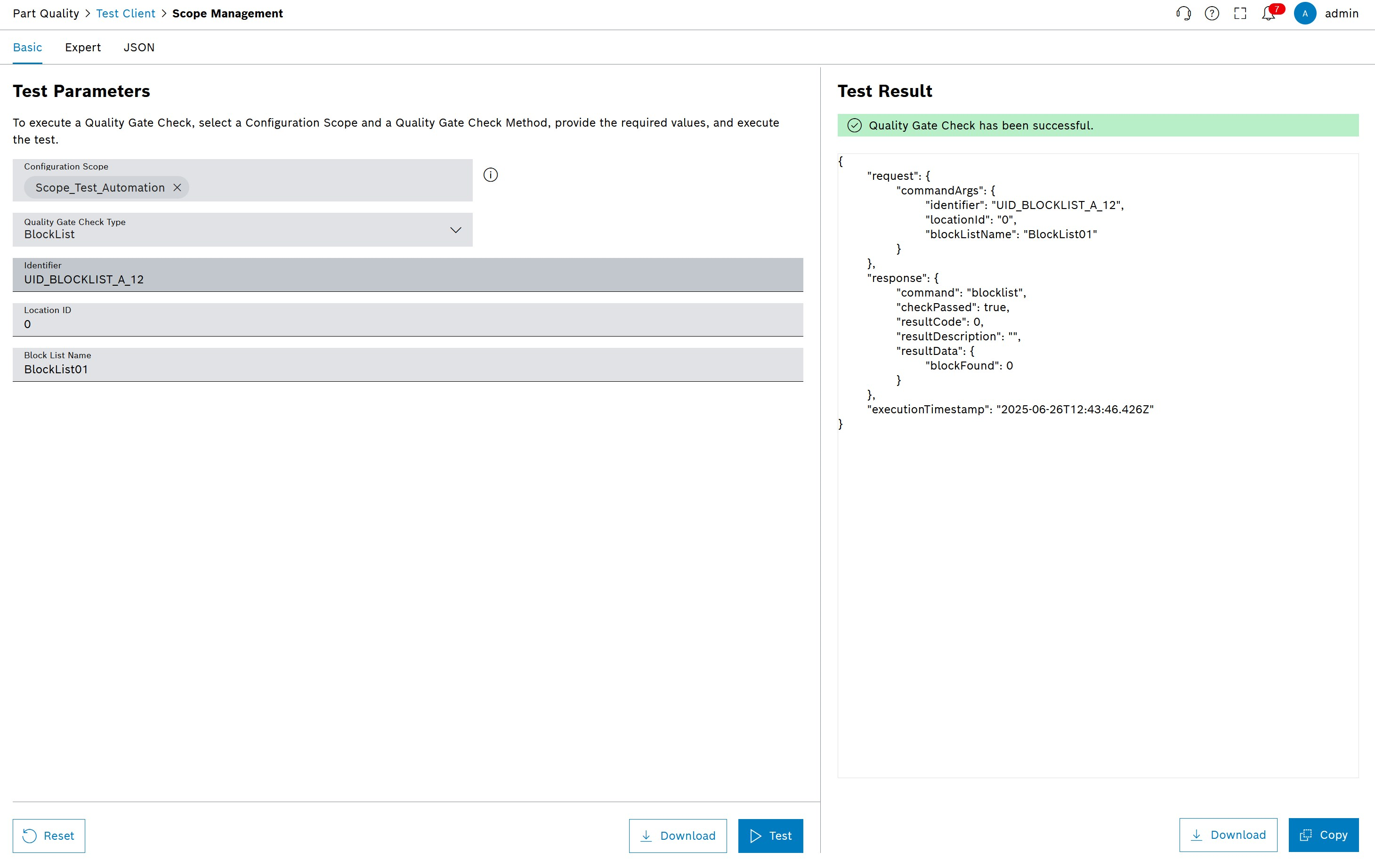

The test result is displayed in the user interface.

For better interpretation of the Test Result (response), see Part Traceability’s API documentation.
