Part Information

The most important Part Information for a part is displayed in compact form in the Part Header. The Part Header is part of every view in the Part Protocol.

pt_part_information

Element / Icon Description

arrow_down

Click to expand further part information.

The Part Information can also be expanded by clicking the header directly.

Expand Part Information

Additional part related information is displayed in the Part Information section.

  1. Conduct a search using Part Protocol’s Quick Search or Extended Search.

  2. Click on the Part ID of a part in the Result List to open the Part View.

  3. Click arrow_down to expand the Part Information.

    Additional information is displayed in the header of Part Information section as well as in the tabs underneath. The Part Information tabs are divided into:

    • Packaging

    • Blocks

    • SPC Sessions

    • Additional Information

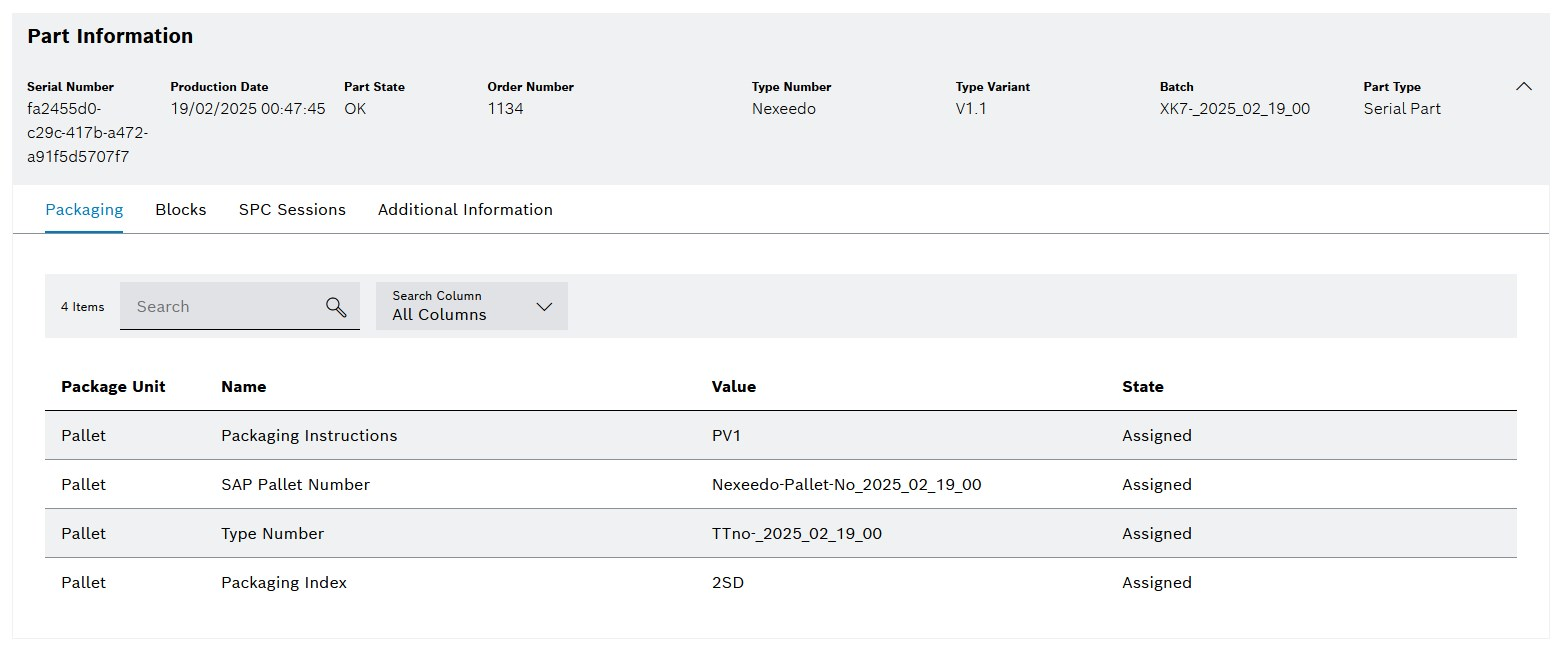

pt_part_information_expanded

Further information on the part state can be found in Part States.

Packaging

Packaging tab provides access to a selection of detailed information about the packaging of a part. More Packaging related information and possibilities for creating evaluations is available in Packaging Information.

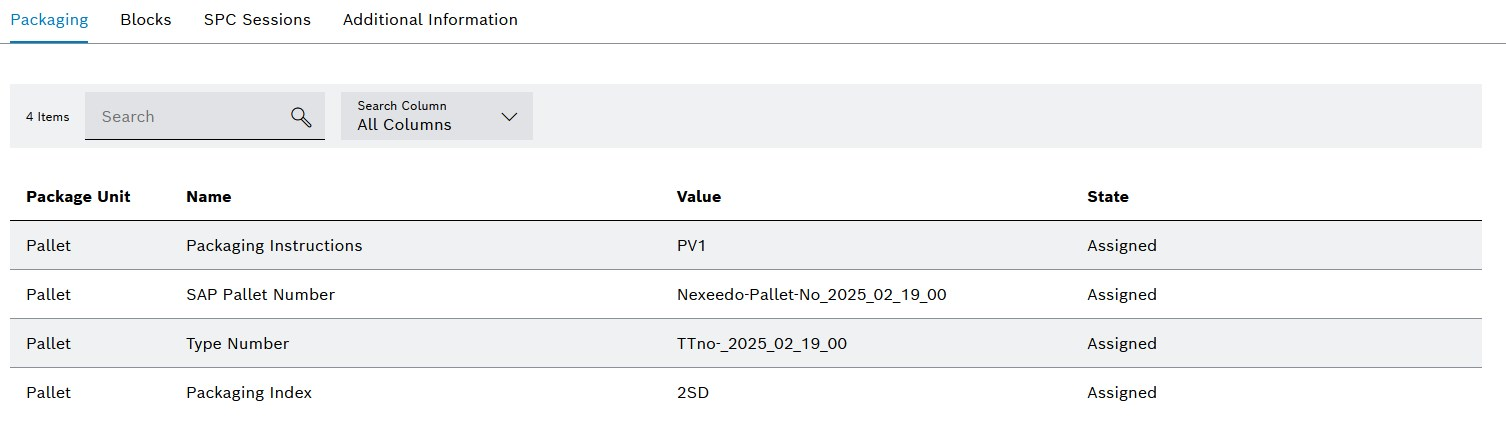

pt_packaging

Blocks

The Blocks tab displays information on blocks that exist for a part, thus preventing further processing in the production process. Such blocks are implemented to ensure quality expectations are met and that production processes remain controlled. The view indicates whether a block is currently active or not.

This information is only available for users of the Part Traceability module migrated from Nexeed MES. It does not apply to Nexeed IAS users working on a freshly installed system without prior MES migration.

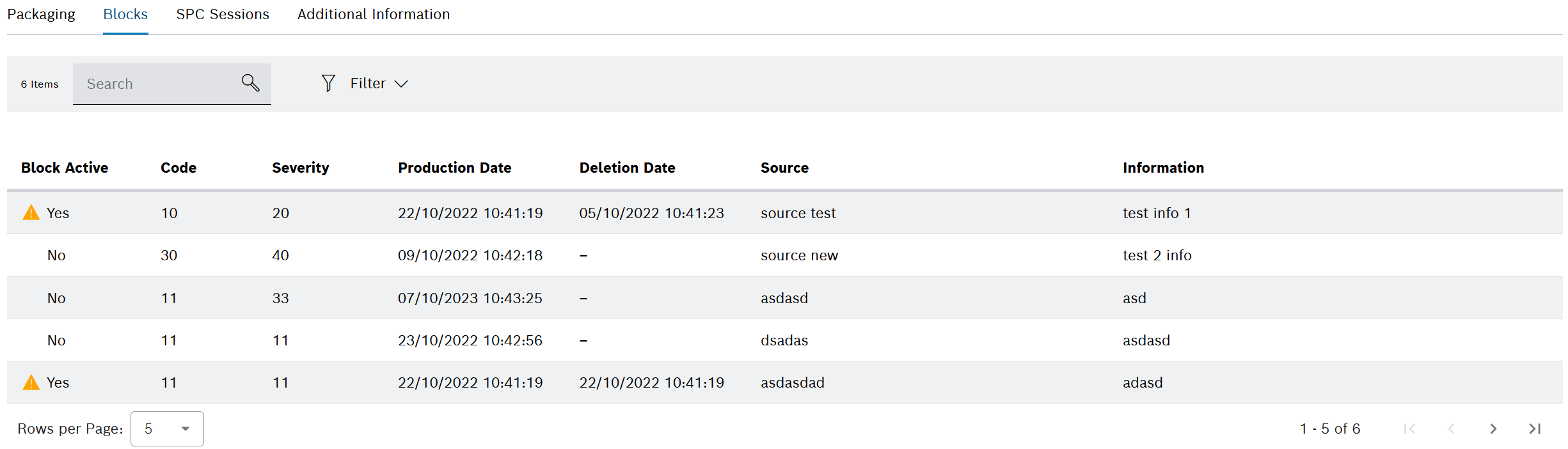

pt_blocks

More information on the displayed data can be found in Part Blocks.

SPC Sessions

The SPC Sessions (Statistical Process Control) tab provides access to a selection of detailed information about the SPC sessions of a part.

This information is only available for users of the Part Traceability module migrated from Nexeed MES. It does not apply to Nexeed IAS users working on a freshly installed system without prior MES migration.

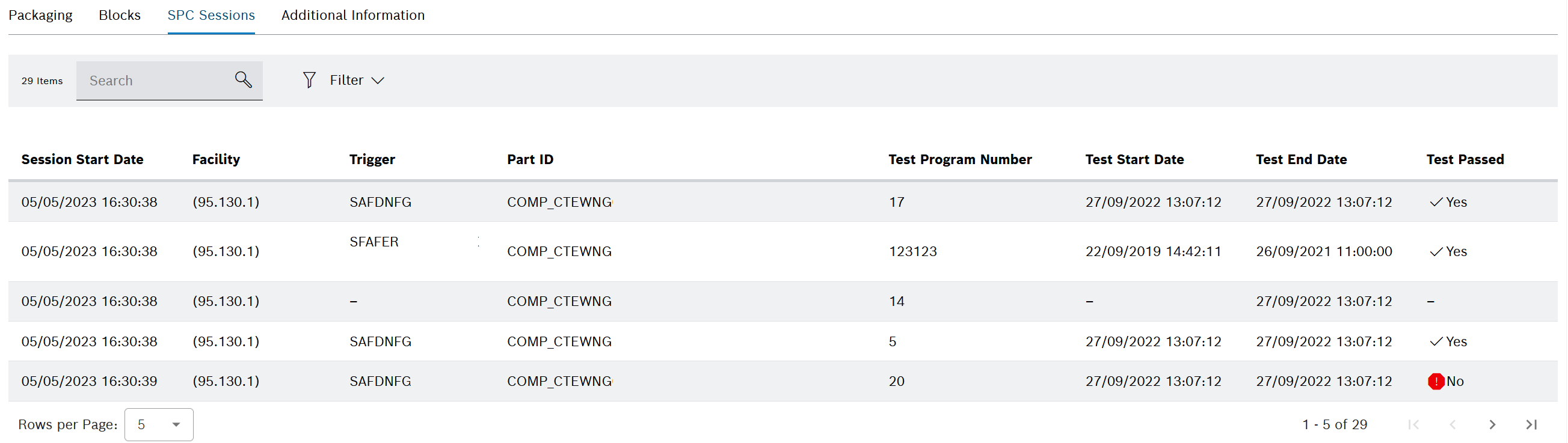

pt_spc_sessions

More information on the displayed data can be found in SPC session data.

Additional Information

The Additional Information tab provides access to additional information about the part. The Additional Information is divided into the following tabs:

  • Binary Data

  • Additional Part Information

  • Wafer

Binary Data

Binary data files sent to Part Traceability are displayed in the Binary Data tab. The files incorporate additional customer-specific information, e.g. information imported by external systems.

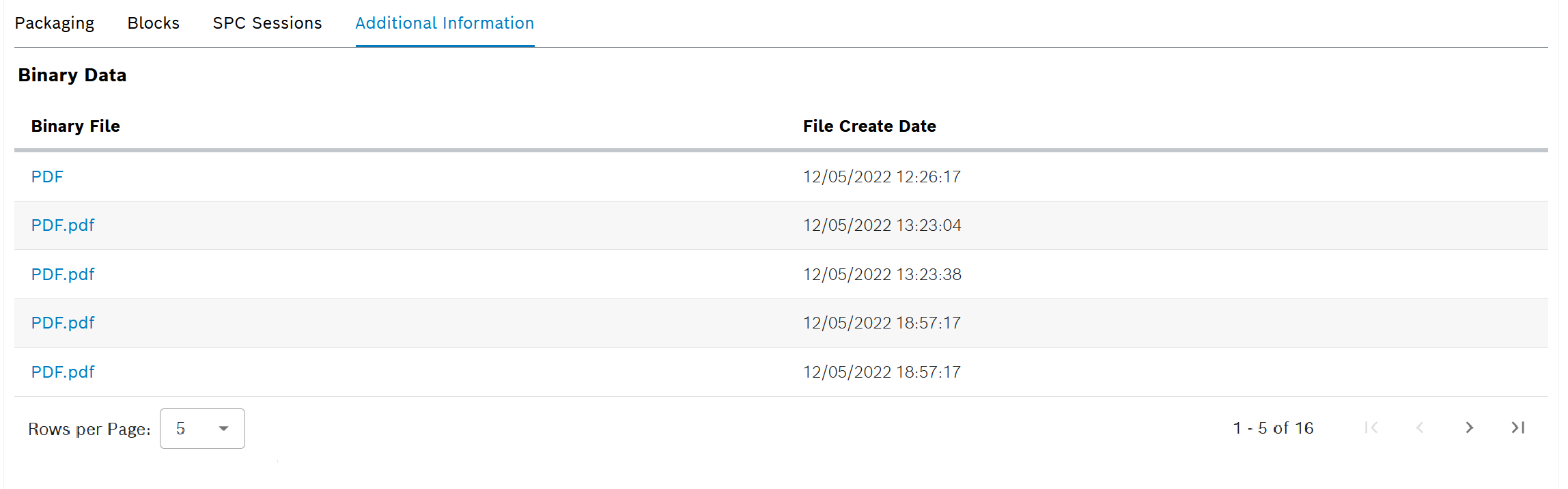

pt_additional_binary

Additional Part Information

List of additional customer-specific information, e.g. imported by external systems.

pt_additional_part

Wafer

If the material from a Wafer was installed in a part during the production process, all wafer data about the installed material is listed:

  • Wafer ID

  • Coordinates of the material from the wafer (Position X and Position Y)

  • Destination Position (Position of component)

pt_wafer
