Extended Search

The Extended Search of Forward Search is used to display all parts in which a certain component is installed. It provides advanced search options for detailed evaluations.

The Extended Search is divided into two categories:

Unique ID Components: Search for parts based on specific unique ID components.
Batch ID Components: Search for parts based on batch ID components.

Search by Unique ID Components

The Search by Unique ID Components is used to display all parts in which a specific Unique ID Component is installed.

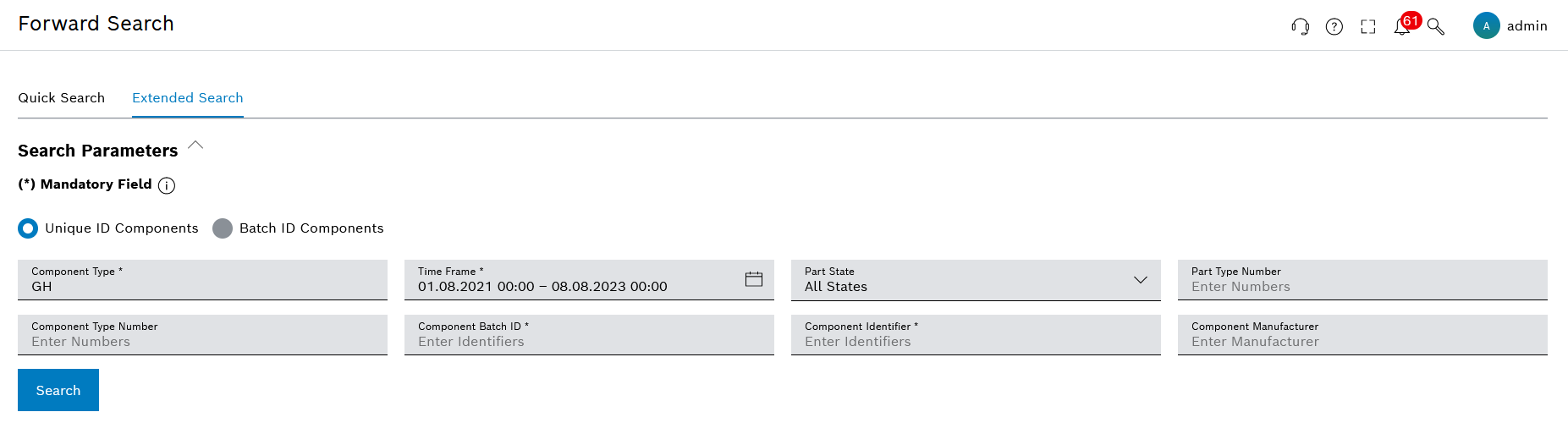

pt_forward_search_extended_search_unique

General information on handling the search parameters: Search Forms for Creating an Evaluation.

Element / Icon	Description
*Component Type*	Enter the *Component Type*.
*Time Frame*	Define *Time Frame* with .
*Part State*	Select the *Part State: Part Status. Default configuration: All States*.
*Part Type Number*	Enter the *Part Type Number*.
*Component Type Number*	Enter the *Type Number* of the *Component*.
*Component Batch ID*	Enter the *Batch ID* of the *Component*.
*Component Identifier*	Enter the *Identifier* of the *Component*.
*Component Manufacturer*	Enter the *Manufacturer* of the *Component*.
	Click to create the Result List.

Element / Icon

Description

Component Type

Enter the Component Type.

Time Frame

Define Time Frame with .

Part State

Select the Part State: Part Status.
Default configuration: All States.

Part Type Number

Enter the Part Type Number.

Component Type Number

Enter the Type Number of the Component.

Component Batch ID

Enter the Batch ID of the Component.

Component Identifier

Enter the Identifier of the Component.

Component Manufacturer

Enter the Manufacturer of the Component.

pt_search_button

Click to create the Result List.

Open the Part Traceability menu.
Click on Forward Search.
Click on Extended Search.
Enter search parameters in the input fields.
Click on Search.

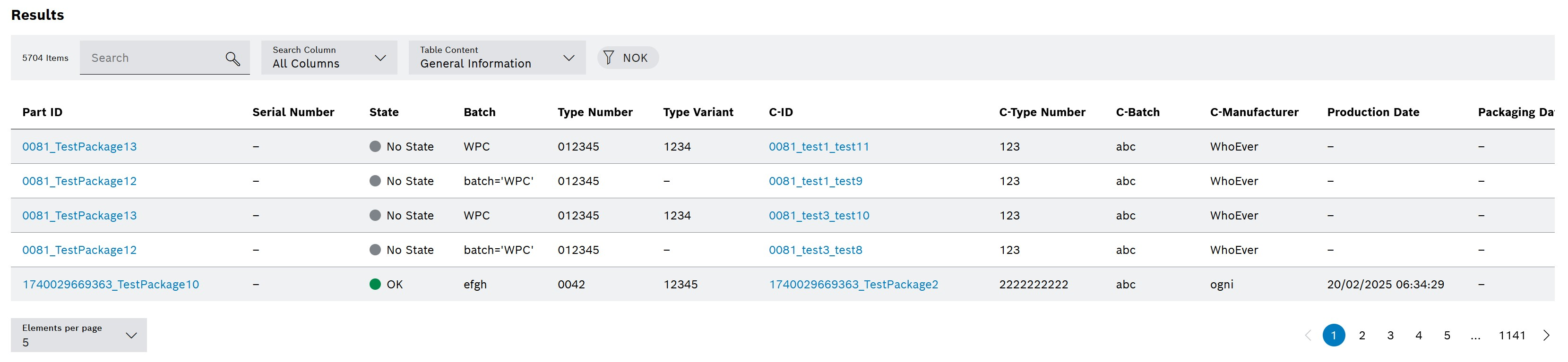

The Result List is displayed and the General Information view is selected.

If the search only delivers one result, the Part View is displayed directly and no Result List is displayed.

To display the component information, click on the Part ID in the respective row: Component View.
To display the part information for a Component ID , click on the C-ID in the respective row: Part View.

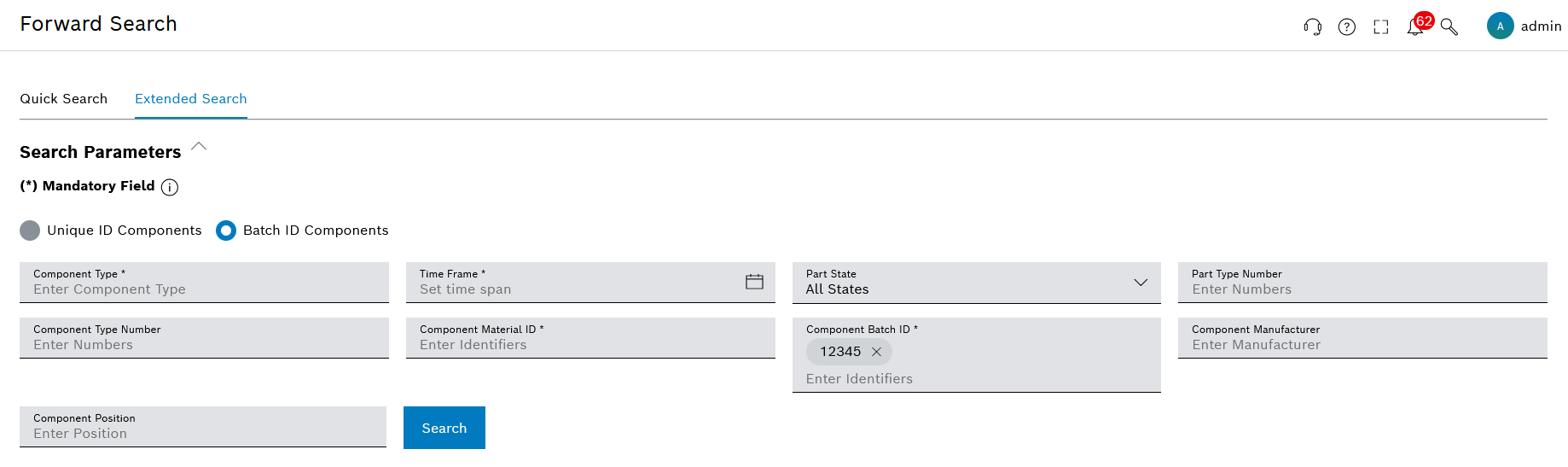

Search by Batch ID Components

The Search by Batch ID Components is used to display all parts in which a specific Batch ID Component is installed.
