Material Details tab

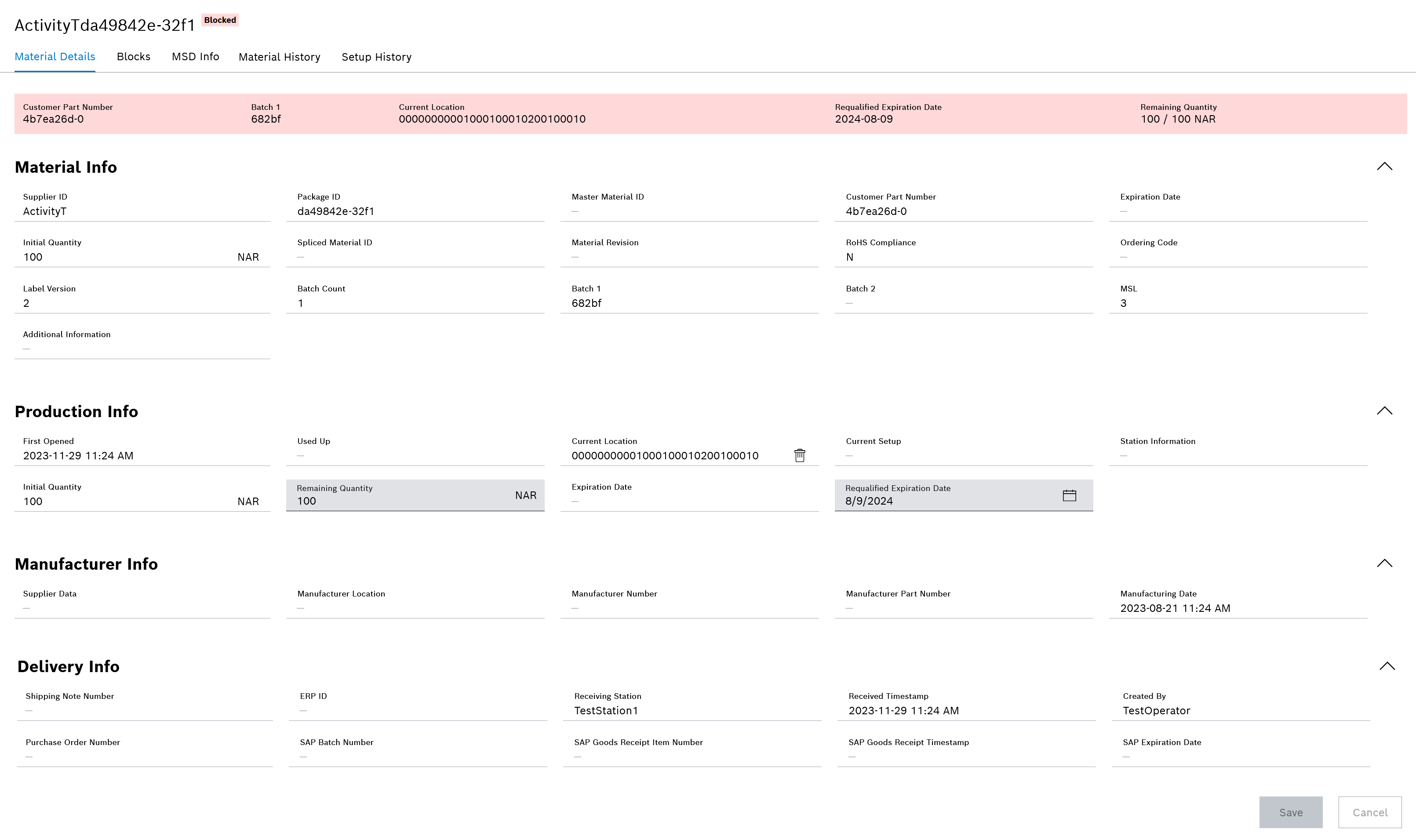

The Material Details tab displays the detailed information about the material:

  • Material information

  • Product information

  • Manufacturer information

  • Delivery information

matm_material_details

The following data can be edited in the Product information dropdown:

  • Remaining Quantity

    The leftover quantity of a material can be corrected if, for example, defective material has been manually sorted out during production.

  • Location

    The material can be removed from its current location.

  • Re-qualified Expiration Date

    The re-qualified expiration date can be adjusted if, for example, the manufacturer of the material provides assurance that the material can also be used after the original expiration date.

Adjust Remaining Quantity

Prerequisite

MaterialManagement Expert or MaterialManagement Administrator role

Procedure

  1. Search for material using one of the following options:

    • Material by ID tab

    • MSD Statistics tab

    • Dry Box Content tab

    • Extended Search tab

  2. Open the Material details tab

  3. Click on the Product information dropdown.

  4. Change desired data in Remaining Quantity.
    Note the displayed unit.

  5. To save the changes, click Save.

The changed data is saved and displayed in the Product information dropdown, in the header and as an event in the Material history tab: Material History tab.

matm_material_details_remaining_quantity

Remove material from location

In the Material details tab, the material can be removed from the current location.

Prerequisites

  • MaterialManagement Expert or MaterialManagement Administrator role

  • A current location has been specified.

Procedure

  1. Search for material using one of the following options:

    • Material by ID tab

    • MSD Statistics tab

    • Dry Box Content tab

    • Extended Search tab

  2. Open the Material details tab

  3. Click on the Product information dropdown.

  4. In the current location field, click on delete.

  5. In the dialog, click Confirm to perform the removal.

The Current location field is updated or deleted in the Product information dropdown and in the material header.
The adjustments are displayed as an event in the Material history tab: Material History tab

Re-qualified Expiration Date

In the Material details tab, the material’s expiration date can be re-qualified.

Prerequisites

  • MaterialManagement Expert or MaterialManagement Administrator role

Procedure

  1. Search for material using one of the following options:

    • Material by ID tab

    • MSD Statistics tab

    • Dry Box Content tab

    • Extended Search tab

  2. Open the Material details tab

  3. Expand the Product information dropdown.

  4. In the Requalified Expiration Date field, click calendar.

  5. Select the desired date.

  6. To save the changes, click Save.

The Requalified Expiration Date field is updated in the Product information category and in the material header.
The adjustments are displayed as an event in the Material history tab: Material History tab
