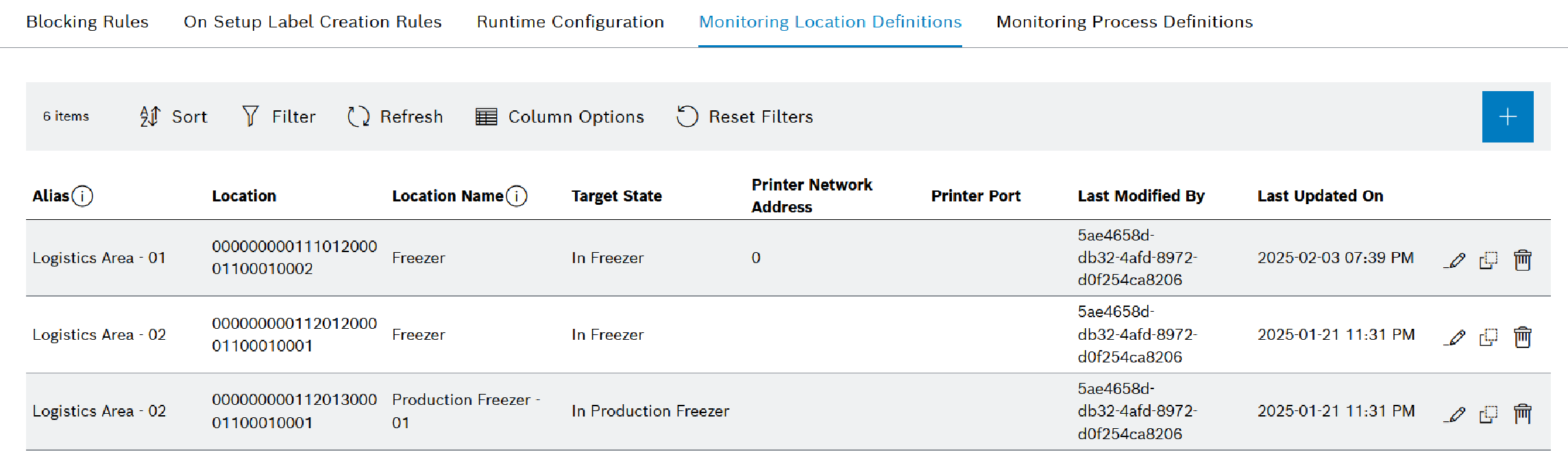

Monitoring Location Definitions tab
A Monitoring Location Definition configures a specific location to perform the state transition to a certain target state for Material Monitoring when this location is scanned. The monitoring location definitions configure the alias a location belongs to and the target state a material gets when it is moved to a different location. Locations can be grouped by assigning them to the same alias. All locations which are used in a monitoring process for the same material id must be configured within the same Alias.
The monitoring locations definitions are configured in the Monitoring Location Definitions tab under Material Management > Configuration.
Header
| Element/icon | Description |
|---|---|
<nn> items |
Total number of entries found |
|
Sort rows by Alias in ascending or descending order. |
|
Select table columns to display. |
|
Update table. |
|
Reset all filters. |
|
|
|
Locations
| Element/icon | Description |
|---|---|
Alias |
Specifies which Alias this location belongs to. If the Alias does not exist yet, it will be created automatically. |
Location |
Locations can be input in short or long and fixed or dotted notation. |
Location Name |
A human-readable name for the location. |
Target State |
The target state to transition to when the location is scanned. See Monitoring Processes for more information about the valid target states for every Monitoring Process. |
Printer Network Adress |
The network address of the printer to use for printing. Only for target state "Print ". |
Printer Port |
The port of the printer to use for printing. Only for target state "Print ". |
Last Modified By |
|
Last Updated On |
|
|
|
|
|
|
Create and edit monitoring location definition
Prerequisite
MaterialManagement Expert or MaterialManagement Administrator role
Procedure
-
Call up the Material Management > Configuration > Monitoring Location Definitions tab.
-
In the header, click on
to add a monitoring location definition.Or:
Click on
to edit a monitoring location definition.
-
On the Create Monitoring Location Definition or Edit Monitoring Location Definition page, enter the desired conditions in the input and list fields.
-
Click on Add to create a Monitoring Location Definition.
Changing the alias of a monitoring location definition will also affect, for which Alias active monitoring entries are displayed on the monitoring page. If the location of a monitoring location definition is changed, check if the original Location is no longer needed, or create a new monitoring location definition for the changed location if it is still in use.
Or:
Click Save to accept the changes.
The new or edited monitoring location definition appears in the table in the Configuration > Monitoring Location Definitions tab.
Clone monitoring location definition
Prerequisite
MaterialManagement Administrator role
Procedure
-
Call up the Material Management > Configuration > Monitoring Location Definitions tab.
-
To clone a monitoring location definition, click on
in the row containing the monitoring location definition.
-
In the Clone Monitoring Location Definition dialog window, enter the necessary information and click on add.
The blue info banner displays which fields need to be changed to avoid an ambiguous monitoring location definition.
The cloned monitoring location definition is displayed in the Monitoring Location Definitions tab.
Delete monitoring location definition
|
When deleting a monitoring location definition, this location can no longer be scanned to trigger state changes in Material Monitoring. If all monitoring location definitions for a specific alias are deleted, the alias will no longer be selectable on the monitoring page. If the monitoring location definitions of all locations where a monitoring process was assigned during its lifetime are deleted, there will be no alias assigned to its active monitoring entry and it will not be displayed on the monitoring page anymore. |
Prerequisite
MaterialManagement Administrator role
Procedure
-
Call up the Material Management > Configuration > Monitoring Location Definitions tab.
-
To delete a monitoring location definition, click on
in the row containing the monitoring location definition. -
In the Delete Monitoring Location Definition dialog window, delete the monitoring location definition permanently with Delete.
The monitoring location definition is removed from the Monitoring Location Definitions tab.
