Tool Administration: Groups

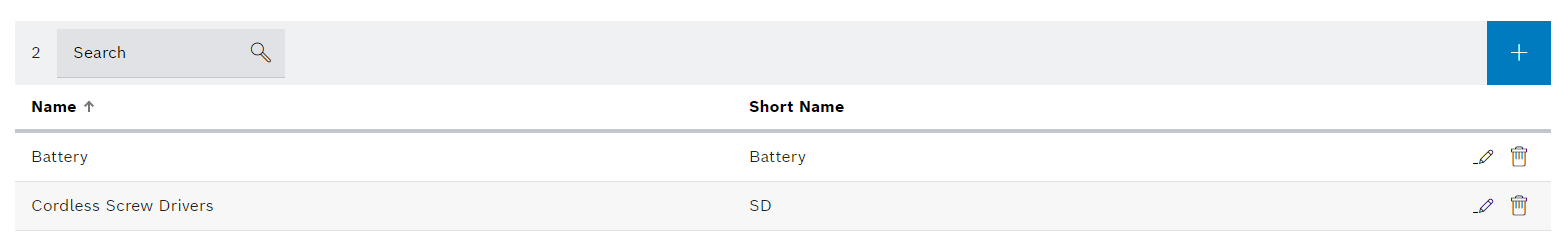

Groups are created and configured in the Tool Management > Tool Administration > Groups tab. The groups can be used to classify types. The groups can be used to filter and find types more easily. The created groups are shown in the filter criteria in the tabs Tool Management > Tools & Components and Tool Management > Types. A type can only be assigned to one group. Additional properties can be added to the group in order to categorize the groups better.
| Element/icon/column | Description |
|---|---|
XX items |
Number of groups displayed |
Search |
Search for groups. Enter the group name or part of it. |
|
|
Name |
Name of the groups |
Short name |
Abbreviation of the groups |
|
When a group is selected, the group opens and the following tabs appear:
-
General
-
Properties

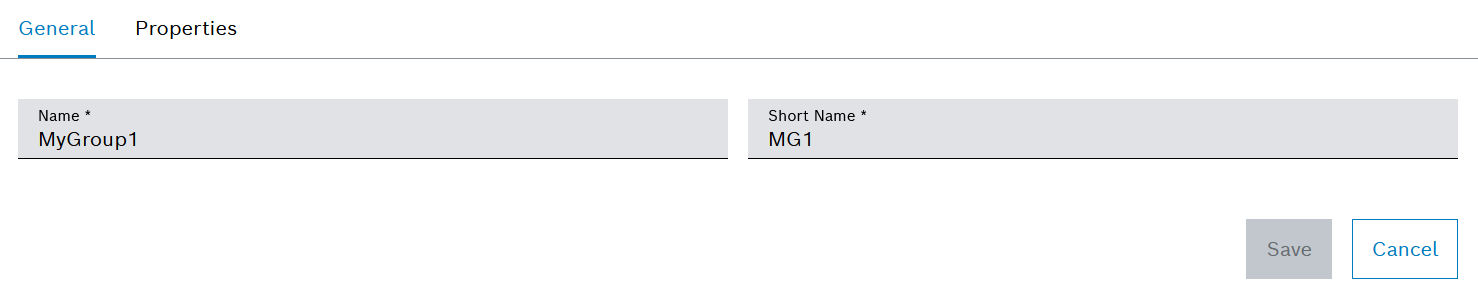

Tool Administration: Groups — General
If a group is selected in the Tool Management > Tool Administration > Group tab, the detailed view opens. The name and short name of the group can be changed in the detailed view in the General tab.
| Element/icon | Description |
|---|---|
Name |
Group name |
Short name |
Short name of the group |

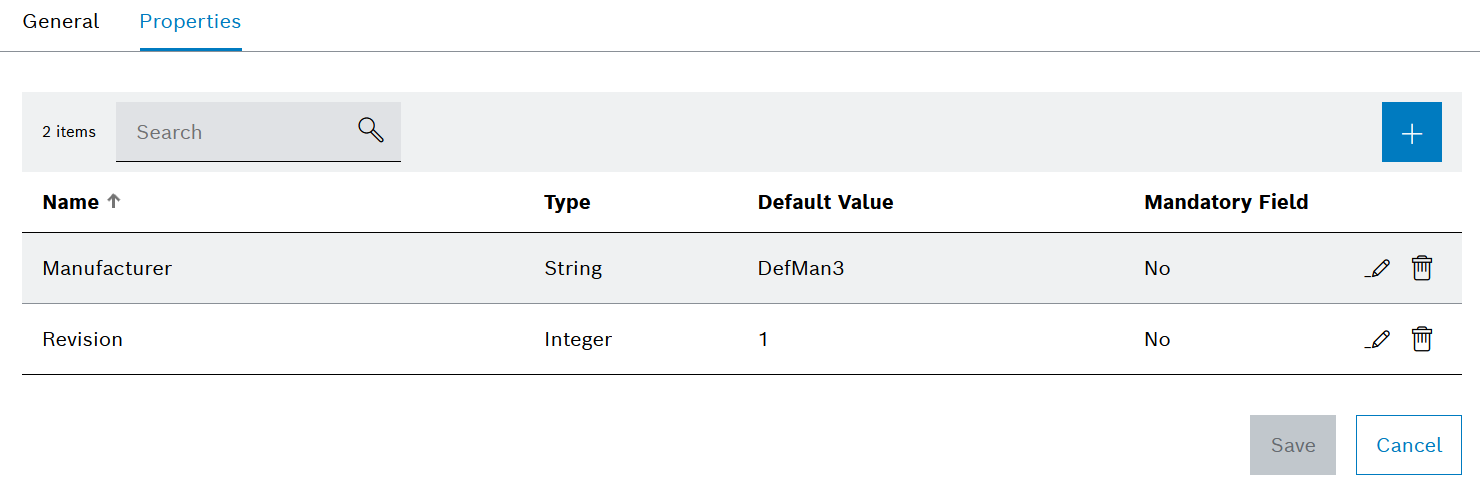

Tool Administration: Groups — Properties
If a group is selected in the Tool Management > Tool Administration > Group tab, the detailed view opens. The properties of the group can be changed in the detailed view in the Properties tab.
A default value can be defined for each property. If a default value is defined, this value is assigned to each type in the group when it is assigned to a group. If a property is required, a value must be entered or selected in the tool or component of the types for it to be released.
When a type is assigned to a group, the properties of the group are taken from the type. Changes to properties of the group are transferred to already created types and tools or components of the type.
| Element/icon | Description |
|---|---|
XX items |
Number of properties assigned to the group |
Search |
Search by property. Enter complete property or part of it. |
|
Assign property to the group. |
Name |
Name of the property |
Type |
Type of the property |
Default value |
The default value of the property that is entered or selected |
Required |
Shows whether it is necessary to enter a value in the tool or component in order to release it. |
|
|
|
Remove properties from the group. |

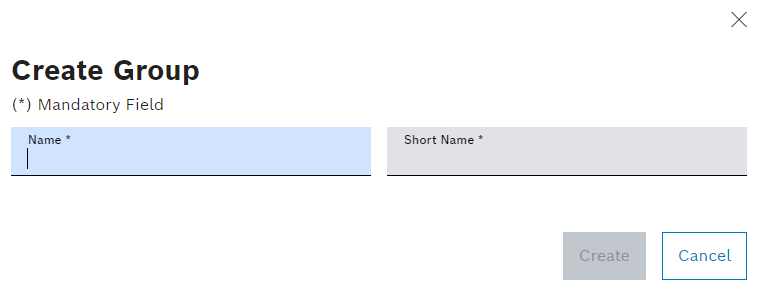

Creating a group
Prerequisite
Tool Management Expert or Tool Management Admin role
Procedure
-
Call up the Tool Management > Tool Administration > Groups tab.
-
Create group with
.
The short name is the abbreviation displayed.
-
Enter Name and Short name.
-
Create group with Create.
The group is displayed in the Tool Management > Tool Administration > Groups tab.
-
To assign to a type to the group, continue with Configuring Type.

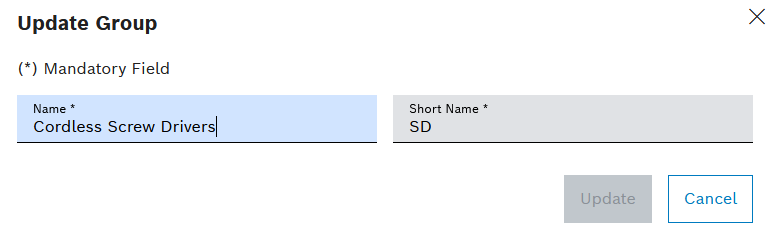

Configure groups
Prerequisite
Tool Management Expert or Tool Management Admin role
Procedure
-
Call up the Tool Management > Tool Administration > Groups tab.
-
Open group with
.
-
Change Name and Short name.
The short name is the abbreviation displayed.
-
Change the group with Update.
The group is configured.
-
To assign a type to a group, continue with Configure properties of the type or the group.
Deleting a group
Groups can be removed from Tool Management. Deleted groups are no longer displayed and cannot be recovered.
Prerequisite
Tool Management Expert or Tool Management Admin role
Procedure
-
Call up the Tool Management > Tool Administration > Groups tab.
-
Delete group with
.
-
Enter Comment.
-
Remove group with Delete.
The group is no longer displayed in Tool Management. Types contained in the group are no longer assigned to any group.
