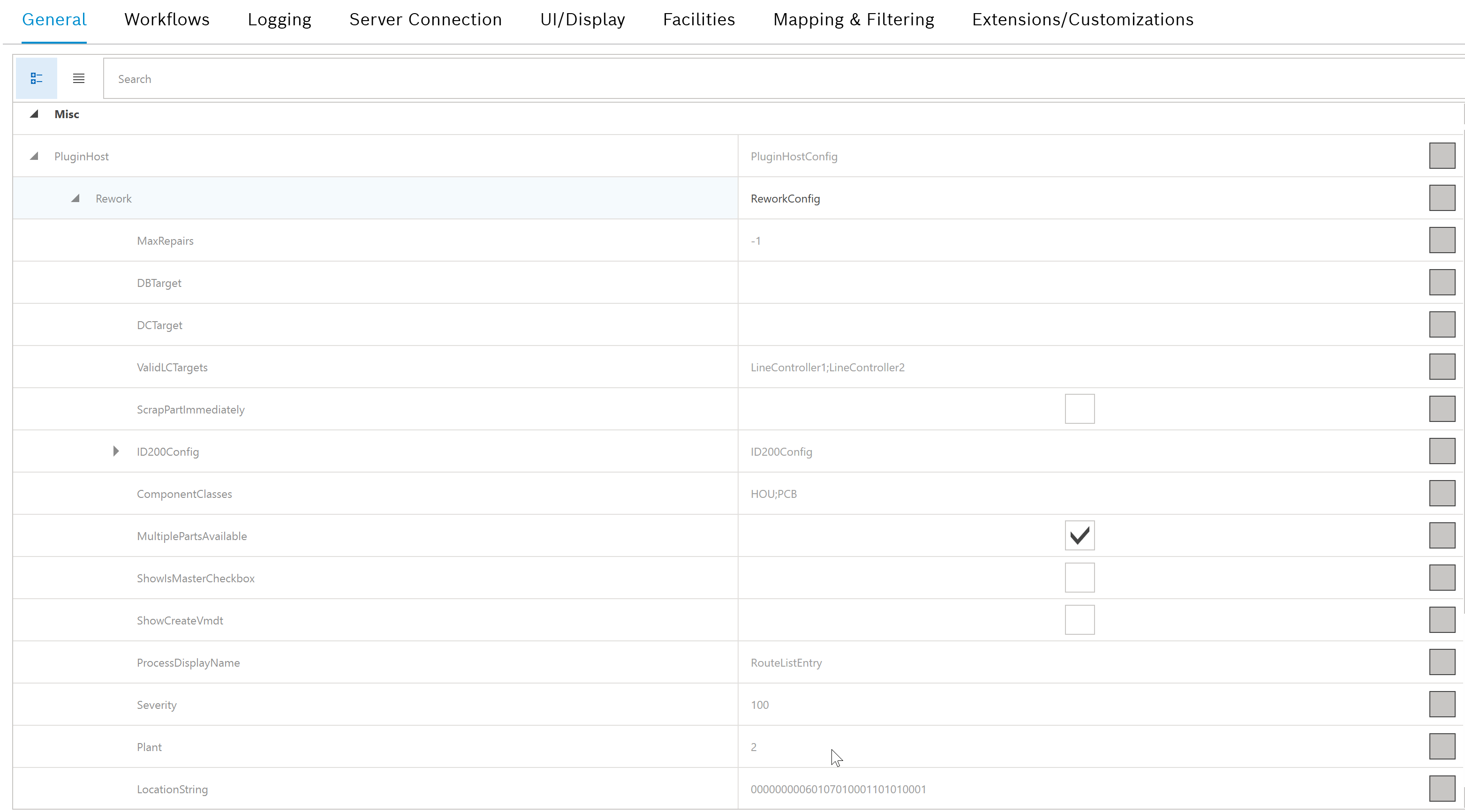

Client settings menu item, general tab

Under settings Settings > Client Settings > General , you can access and change basic client settings.

Element Description

MaxRepairs

Enter the maximum possible number of rework actions on a part.

DBTarget

Specify that a database other than the default database is used to query the quality data.

DCTarget

Specify that a database other than the default database is used to write the quality data.

ValidLCTargets

Enter lines with which Rework Control works.

ScrapPartImmediately

Specify how scrapped parts are deleted:

box_checked : Delete part from vMDT.

rectangle_black : Only scrap the part data-technically, do not delete it from the vMDT.

ID200Config: Channel

Specify which of the two channels is used to read the RFIDs.

ID200Config: VariableList

Specify where specific variable values are to be found in data.

ComponentClasses

Add components to a part.

ShowIsMasterCheckbox

Specify whether the Is Master checkbox is displayed:

box_checked : Display checkbox.

rectangle_black : Hide checkbox.

Default value: rectangle_black

If the Is Master checkbox is activated, group data is requested instead of parts data. This is necessary if there are parts that have the same identifier as a group.

ShowCreateVmdt

Specify whether the CreateVmdt button is displayed.

ProcessDisplayName

Select the display type for route list entries:

Process : Display process name in the route list.

RouteListEntry : Display the name of the entry in the route list.

Default value: XXX

Plant

Specifies the ID of the plant in which the part is processed. Forms a part of the LocationString within the trace data as a permanently assigned number.

LocationString

Specifies the Location within the trace data.

ProcessNo

Specifies the process number for rework/analysis.

IdFilter

Enter parameters for filtering or converting identifiers (0, 1, 2):

0 : Removes from identifiers all characters that are neither letters nor numbers (except underscores)

1 : Allows all characters in an identifier.

2 : Call workflow IdFilterWorkflow.xml as a filter function.

Default value: XXX

MappedTraceId

Enter the variable name of a variable from the Line Control additional data.

If a variable is entered, Rework Control assigns the variable to the scanned part as an identifier. The originally scanned identifier is assigned to the workpiece carrier.

SupermarketsList

Specify from which "supermarkets" (parts data cache) Rework Control may process parts.
