Configuration

Line settings tab

Under Order Management > Configuration , the lines and stations for the Order Management module are imported and configured in the Line settings tab.

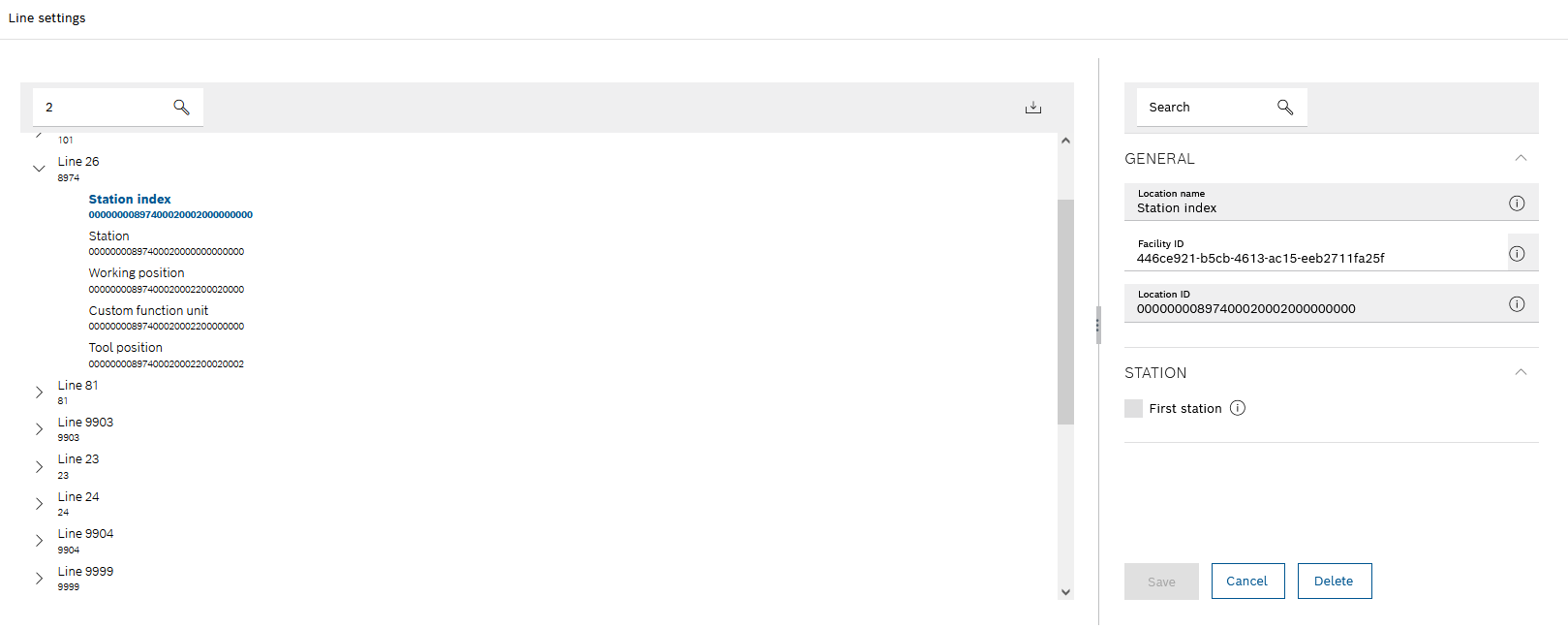

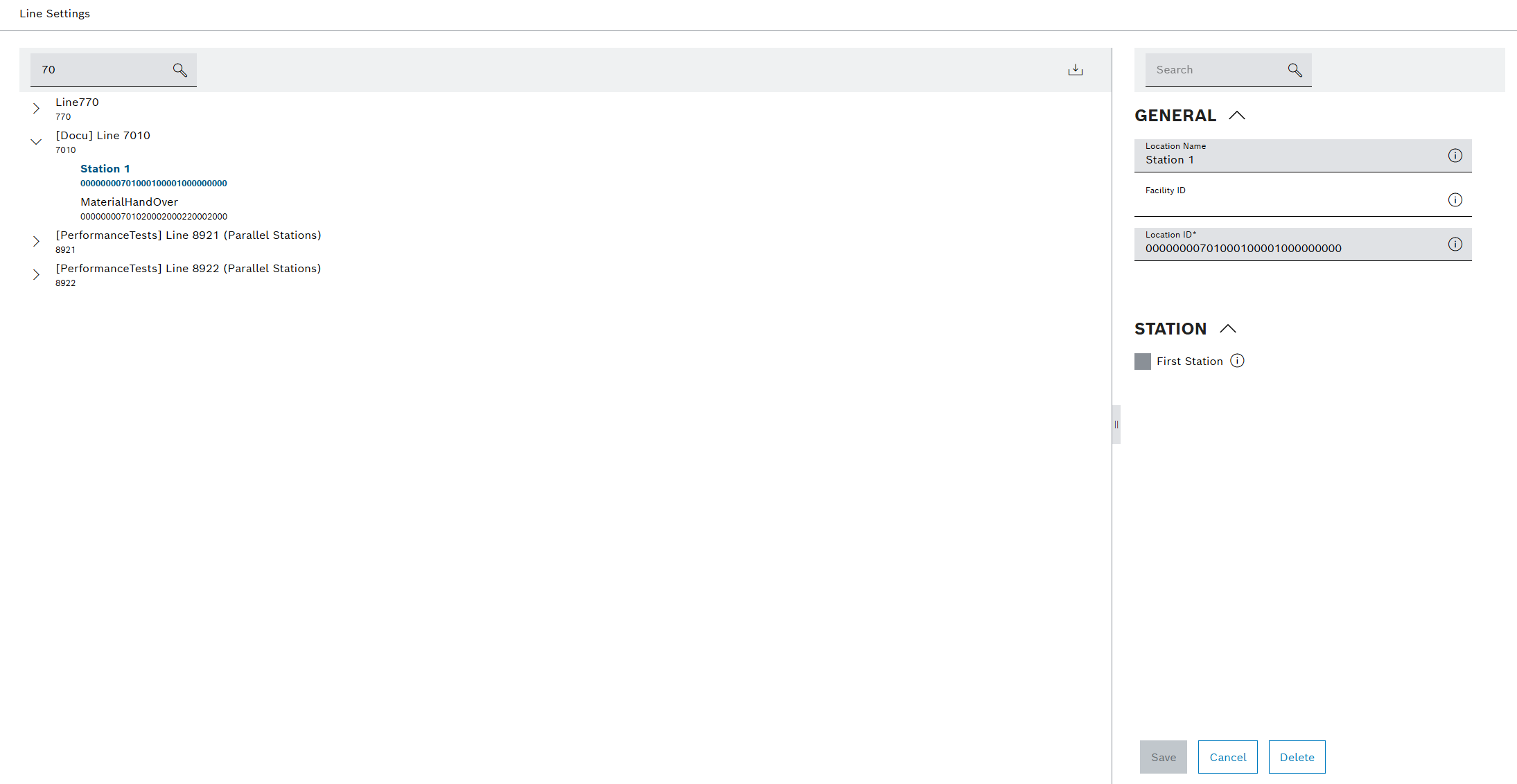

There are two areas in the Line settings tab: The display of the integrated lines with their stations/facilities and the detailed view in which lines, stations and facilities can be configured.

Lines Area

Element	Description
*Search*	Filter by lines. Enter the complete line name or part of it.
	Import the line, stations, and facilities if they are included as MES lines, stations, and facilities in the Master Data Management module. Importing a Line
or	Expand or collapse stations and facilities of a line.

Element

Description

Search

Filter by lines.

Enter the complete line name or part of it.

import

Import the line, stations, and facilities if they are included as MES lines, stations, and facilities in the Master Data Management module.

Importing a Line

forward-right or down

Expand or collapse stations and facilities of a line.

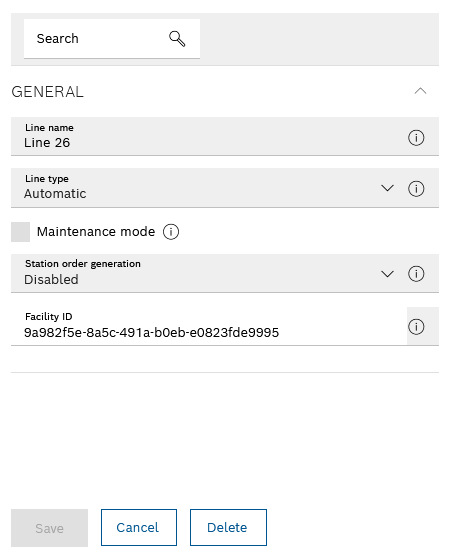

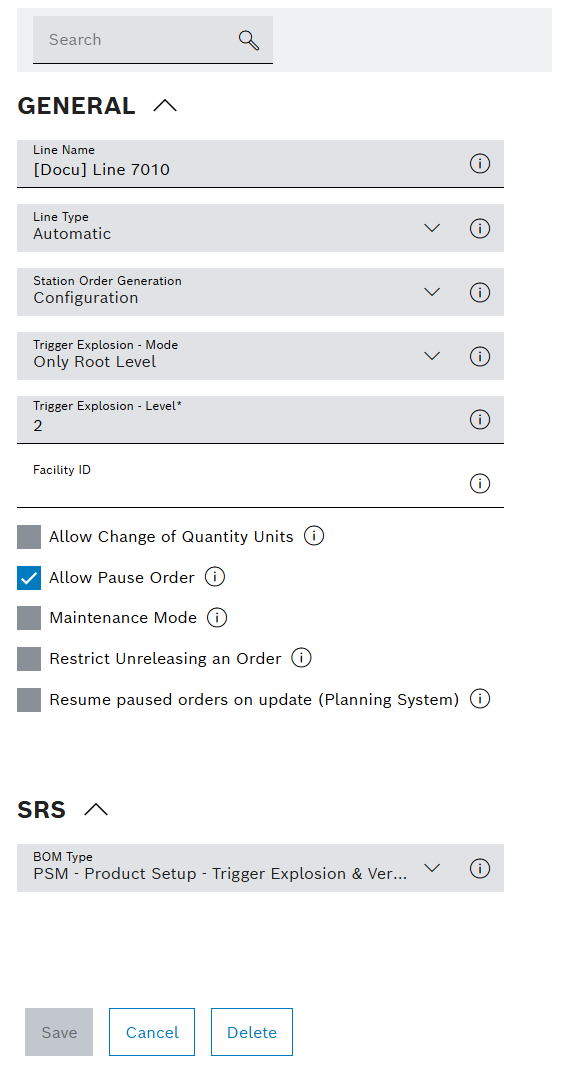

Detailed View: Line

om_settings_line_settings_details_line_32

Element

Description

Search

Search for a settings parameter (e.g. Line type ).

info-i-circle

Display information about the element.

Line Name

Enter any name for the line.

Line Type

Select a line type.

Automatic
Automatic without material
Manual (Multiple Active Orders)
Manual (Single Active Order)

Station Order Generation

Select whether data for the station counter should be evaluated and displayed.

Configuration
Data for the station counter is evaluated.
Disabled
Data for the station counter is not evaluated.

Trigger Explosion - Mode

Select the mode to determine the extent of the Bill of Material (BOM) explosion performed when the 'BOM Type' is 'PSM - Product Setup - Trigger Explosion' or 'PSM - Product Setup - Trigger Explosion & Verify Packaging'. This explosion occurs automatically upon order release, using the order’s type number.

Only root level
Explodes only the top-level product setup.
Up to configured level
Explodes the product setup down to the depth specified in the 'Trigger Explosion - Level' setting.
All levels
Explodes the product setup to its complete depth without any level restrictions.

Trigger Explosion - Level

Specify the maximum depth for the Bill of Material (BOM) explosion. This setting is active only when the 'BOM Type' is 'PSM - Product Setup - Trigger Explosion' or 'PSM - Product Setup - Trigger Explosion & Verify Packaging', and the 'Trigger Explosion - Mode' is set to 'Up to Configured Level'.

Allow Change of Quantity Units

Activate this setting to allow modification of the quantity unit for orders.

If deactivated, 'Number of articles' (NAR) is the only permitted quantity unit for this line, and any other unit will cause Order Management to fail.

Quantity unit changes are prohibited within the client.

Allow Pause Order

Activate this setting to enable pausing orders.

When deactivated, paused orders will not appear in the order list, and the "Pause" option will be hidden from context menus.

Maintenance Mode

Enable when the line is undergoing maintenance while an order is active. Disabling it indicates maintenance completion.

In Maintenance mode, data collection for the order is paused, so that the computations in the Order Management module are not influenced by maintenance work and the increment counter does not advance

Restrict Unreleasing an Order

Activate if it should be possible to cancel the release of an order, even if production for this order has already started.

Resume paused orders on update (Planning System)

Indicates, whether orders in state paused are automatically resumed, when an update for the order is received from the planning system (e.g. ProCon). This parameter is only used when the 'Order Synchronization Mode' is set to 'with Planning System V2 (event based)'.

BOM Type

Select the source for obtaining Bill of Materials (BOMs) for this line.

Disabled
No BOM will be retrieved.
Internal
Requires BOMs to be automatically forwarded to Order Management by an external system (e.g., from Panasonic machines).
PSM - Building Plan - By Type Number
Retrieves the BOM as a building plan from Product Setup Management (PSM) using the order’s type number.
PSM – Building Plan – Revision Handling
Retrieves the BOM as a building plan from PSM, using the order’s revision and production version.
ASM
Retrieves the BOM from the ASM Connector.
PSM - Packaging
Retrieves packaging BOMs from PSM. This option requires all stations on the line to have No Setup configured for order release. If multiple "first" stations exist, the packaging setup is applied based on a sorted order (lowest production step, then location ID).
PanaCIM
Retrieves the BOM from the Panasonic Connector.
PSM - Product Setup - Trigger Explosion
Triggers BOM explosion within PSM for all Production Setup Levels. The order explosion date must be set for release.
PSM - Product Setup - Trigger Explosion & Verify Packaging
Triggers BOM explosion within PSM and verifies the availability of the packaging BOM upon order release.

Orders can only be released in the Web UI if the BOM type is set to Disabled or PSM - Product Setup - Trigger Explosion or PSM - Product Setup - Trigger Explosion & Verify Packaging.

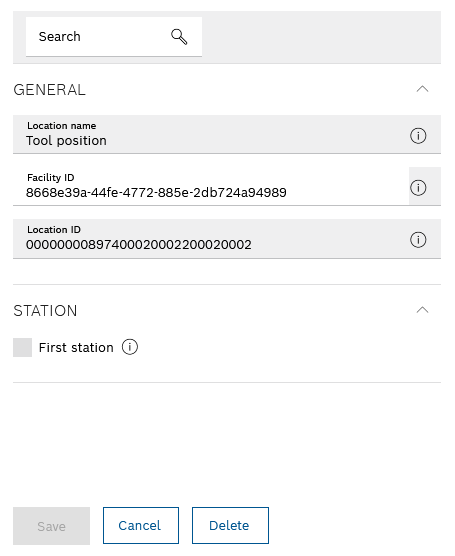

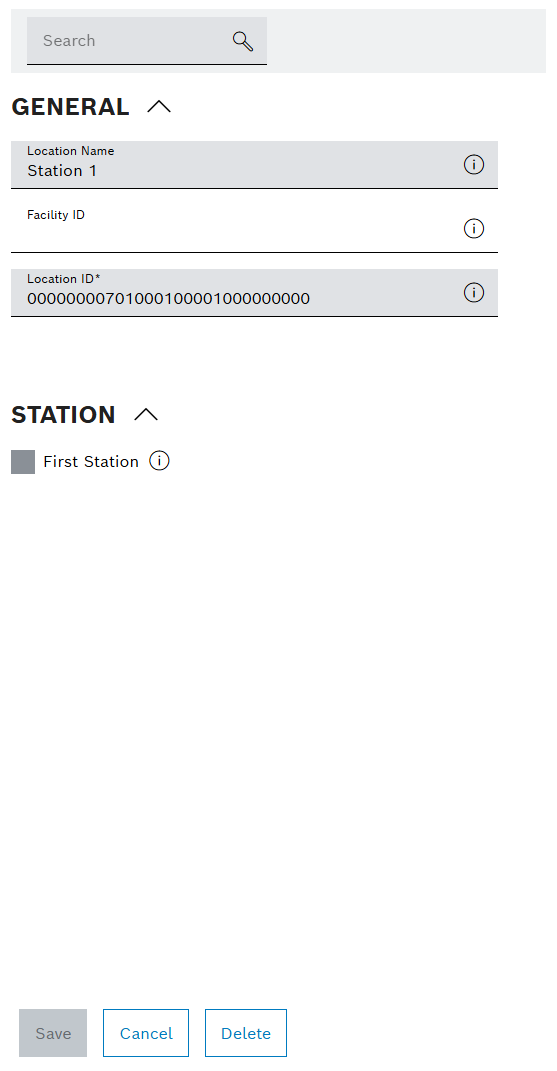

Detailed View: Station/Facility

om_settings_line_settings_details_location

Element	Description
*Search*	Search for a settings parameter (e.g. *Facility ID* ).
	Display information about the element.
*Location Name*	Enter any name for the station/facility.
*Facility ID*	Unique identification number of the station/facility in the Nexeed Industrial Application System
*Location ID*	Customize the identification number of the station/facility in the Order Management module. The Location ID is made up of the identification numbers of the station/facility: System: 4 digits Product: 3 digits Range: 1 digit Line number: 4 digits Station number: 4 digits Station index number: 4 digits FunctionUnit: 1 digit (1 to 8) Working position: 4 digits Tool position: 4 digits
*First Station*	Select whether the station/facility is the line’s first station.

Element

Description

Search

Search for a settings parameter (e.g. Facility ID ).

info-i-circle

Display information about the element.

Location Name

Enter any name for the station/facility.

Facility ID

Unique identification number of the station/facility in the Nexeed Industrial Application System

Location ID

Customize the identification number of the station/facility in the Order Management module.

The Location ID is made up of the identification numbers of the station/facility:

System: 4 digits
Product: 3 digits
Range: 1 digit
Line number: 4 digits
Station number: 4 digits
Station index number: 4 digits
FunctionUnit: 1 digit (1 to 8)
Working position: 4 digits
Tool position: 4 digits

First Station

Select whether the station/facility is the line’s first station.

Importing a line

Prerequisites

Role PowerUser OrderManagement or Admin OrderManagement
The line to be imported and its stations/facilities are included as MES lines, stations, and facilities under Master Data Management > Facilities > Topology.

Procedure

Go to the Order Management > Settings > Line settings tab.
Click on to open the Import options dialog window.
Select the required line in the dialog window.
If needed, expand the stations/facilities of the line by clicking on .
If you do not want to import a station associated with the line, remove the marker at the station concerned. If necessary, mark the subordinate entries again.

A appears in the blue checkbox of the parent entries of the selected line to indicate that the line has not been imported in full.
Clicking on Import transfers the line to the Order Management module.

The imported line will be displayed with its stations/facilities in the Line settings tab in the included lines.

To customize the line and stations/facilities, go to Customizing a Line and Station/Facility.

Customizing a line and station/facility

Prerequisite

Role PowerUser OderManagement or Admin OrderManagement

Procedure

Go to the Order Management > Settings > Line settings tab.
Select the line or station for which you want to customize the settings.

The detailed view opens.
Customize the required setting parameters.

A description of the settings parameters can be found under Line Settings Tab.
Apply the changes by clicking on Save.

The line or station/facility has been customized. The changes are displayed in the Order Management module.

Deleting a line and station/facility

Lines and stations/facilities are not deleted from the Nexeed Industrial Application System.

All associated stations/facilities are also deleted when a line is deleted.

Prerequisite

Role Admin OrderManagement

Procedure

Go to the Order Management > Settings > Line settings tab.
Select the line or station/facility to be deleted.

The detailed view opens.
Click on Delete to delete the line or station/facility.
To permanently delete the line or station/facility, click on Delete in the dialog window.

The line and its associated stations/facilities or the station/facility no longer appears in the Order Management module.
