4M Downtimes

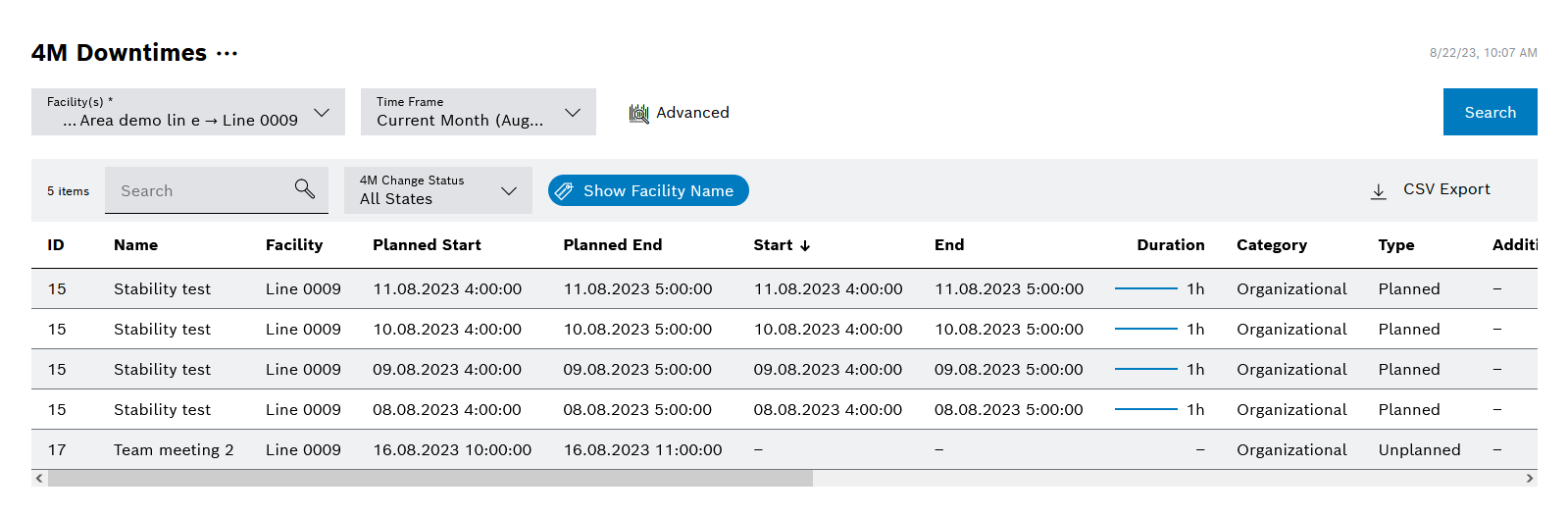

The 4M Downtimes Overview report lists 4M downtimes. 4M downtimes are used for changes to the production line.
|
This report is only available if the Enable 4M Downtime Categories checkbox has been activated in Shopfloor Management Administration > Configuration. |
| Element | Description |
|---|---|
ID |
ID of the 4M downtime cause that occurred |
Name |
Name of the 4M downtime cause that occurred |
Facility |
Facility at which the 4M downtime occurred |
Planned Start |
Planned start time of the 4M downtime |
Planned End |
Planned end time of the 4M downtime |
Start |
Actual start time of the 4M downtime |
End |
Actual end time of the 4M downtime |
Duration |
Duration of the 4M downtime |
Category |
Category of the downtime cause: Technical, organizational, changeover-related or quality |
Type |
Type of the 4M downtime cause: Planned or unplanned |
Additional information |
Description of the 4M downtime |
4M Category |
4M category: Man, machine, method or material |
4M Change Status |
Current status of the planned change: Created, performed or confirmed |
Check (Method/Result) |
Free text field for the description of the change |
Created by |
Person who created the 4M downtime |
Executed by |
Person who executed the 4M downtime |
Confirmed by |
Person who checked the 4M downtime following the execution |
Table filters
| Element | Description |
|---|---|
Search |
Entry of the search term The search is performed in the following columns:
|
4M Change Status |
Filter by confirmation status:
|
Show Facility Name |
Displays the self-assigned name or facility ID |
|
