Processes tab

Under Line control > Route Lists , processes are created and edited in the Processes tab. The processes are assigned to route lists and equipment.

Header

Element/icon

Description

<nnn>

Total number of entries found

Search by process number, name or description.

Enter the search term in full or in part.

Note upper and lower case.

export Export down

Export processes as a CSV file (e.g. Excel table) or a PDF file.

Export tables

add_border

Create process.

Create and edit process

Process entry

Element/icon	Description
	Copy process
	Edit process. Create and edit process
	Delete process

Element/icon

Description

mdm_copy_icon

Copy process

mdm_edit_icon

Edit process.

Create and edit process

delete

Delete process

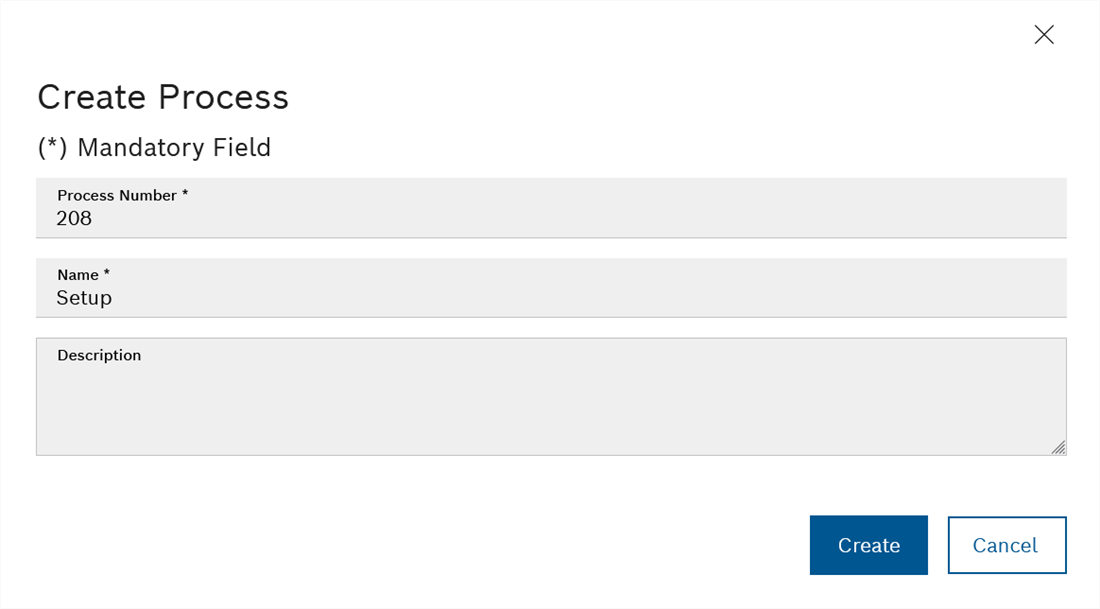

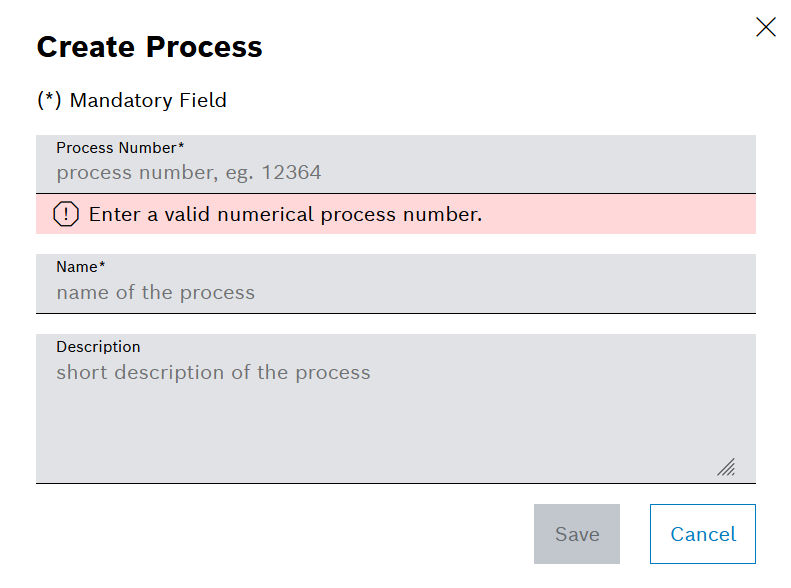

Create and edit process

Prerequisites

LC power user or LC admin role
The process is not assigned to a route list or a equipment.

Procedure

Call up the Line control > Route lists > Processes tab.
In the header, click to add a process.

Or:

To edit a process, use in the row of the respective process to open the process for editing.
Enter or adjust the process number and the name of the process.
Optionally, enter or adjust a description of the process.
Press Create to create the new process.

Or :

Apply the changes with Save.

The process appears with the information in the Processes tab.

To integrate the process into a route list, continue with Edit route lists.
To assign the process to a equipment, continue with Create and edit equipment.
To delete the process, continue with Delete Process.

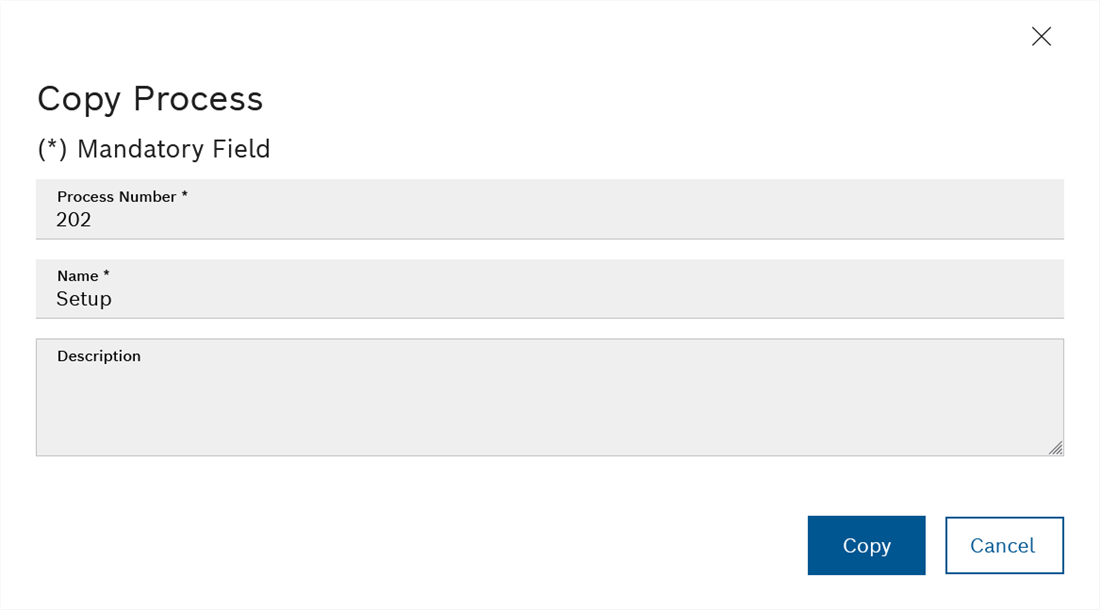

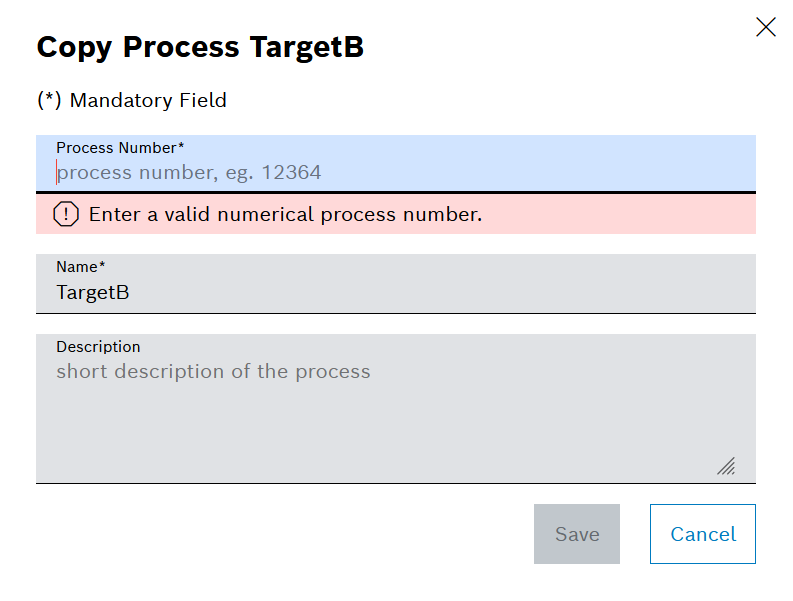

Copy process

Prerequisite

LC power user or LC admin role

Procedure

Call up the Line control > Route lists > Processes tab.
Click in the row of the process to be copied.
In the Copy Process window, specify a process number for the copy.

The process number may only be used once in the Line Control module.
Optionally, adjust the name of the process and the description.
Use Save to create a copy of the process.

The copy of the process appears under the entered process number with the edited information in the Processes tab.

To adapt the process, continue with Create and edit process.

Delete process

Prerequisite

LC admin role

Procedure

Call up the Line control > Route lists > Processes tab.
In the row of the entry to be deleted, use to delete the process.
To delete the process permanently, click Delete in the dialog window.
- The process is removed from the Line Control module and no longer appears in the Processes tab.
