Equipment tab
In location-based routing, equipment control the production of a part on a line. In a equipment, the position on the line (station, station index, function number and editing position) is defined with its associated process. To do this, the line reports the processing result of the previous position (e.g. OK or NOK) to the Line Control module and makes a processing request.

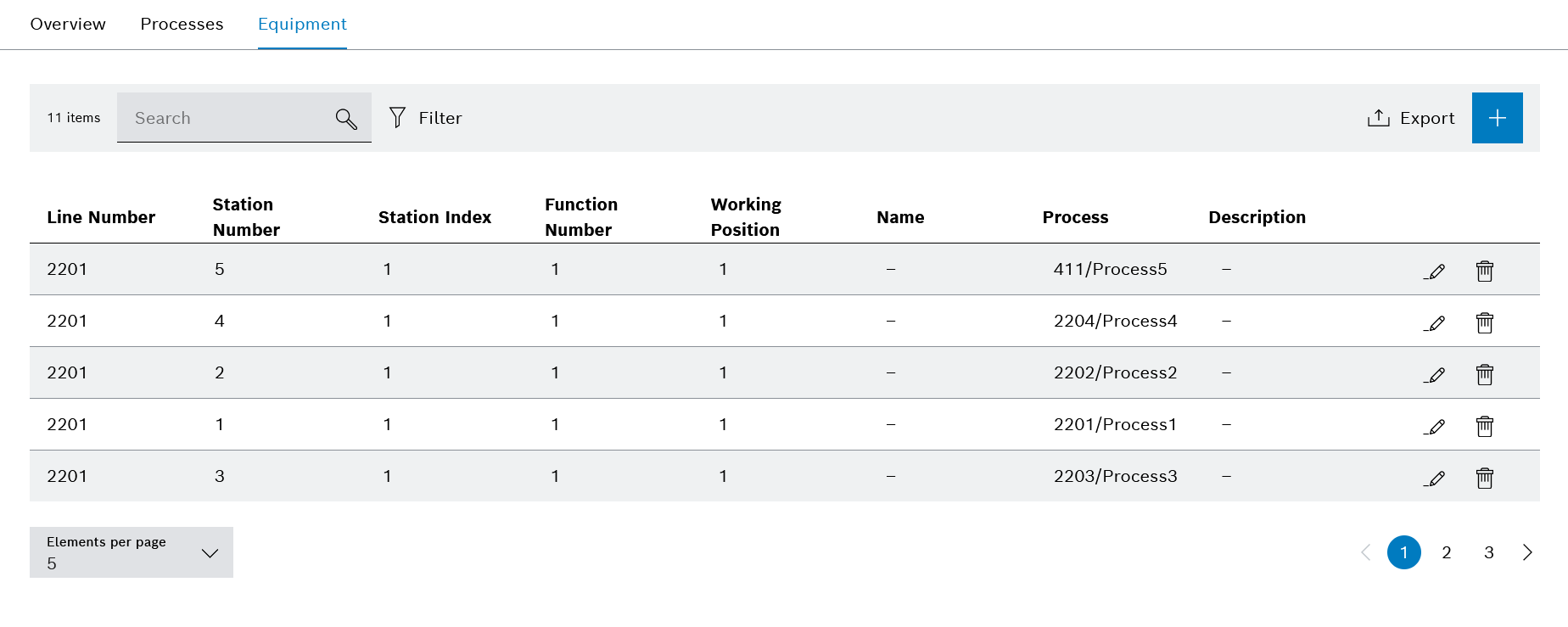

Under Line control > Route Lists , the positions of the equipment (line, station, station index, function number and processing position) with their associated processes are displayed, created and edited in the Equipment tab.
Header
| Element/icon | Description | ||
|---|---|---|---|
<nnn> |
Total number of entries found |
||
|
Search by line, name, version or description. Enter the search term in full or in part.
|
||
Process |
Filter by processes. To do this, select one or more processes from the drop-down list. |
||
|
Export the equipment as a CSV file (e.g. Excel table), a PDF file or as JSON file. |
||
|
Create equipment. |
Equipment entry
| Element/icon | Description |
|---|---|
|
Edit equipment. |
|
Create and edit equipment
Prerequisite
-
LC power userorLC adminrole
Procedure
-
Call up the Line control > Route lists > Equipment tab.
-
In the header, click on
to add a equipment.Or:
To edit a equipment, use
in the row containing the equipment to open the equipment for editing.
-
Enter details.
-
Create the new equipment with Save.
Or:
Apply the changes with Save.
The equipment appears with the information in the Equipment tab.
Delete Equipment
Prerequisite
-
LC adminrole
Procedure
-
Call up the Line control > Route lists > Equipment tab.
-
In the row of the entry that is to be deleted, remove the equipment with
. -
To delete the equipment permanently, click on Delete in the dialog window.
The equipment is removed form the Line Control module and no longer appears in the Equipment tab.
