Overview: Overview tab

In process-based routing, a route list controls the production of a part on the line. A route list consists of route list entries that map the production steps, i.e. a route list entry specifies which process follows a production step that has just been performed, and under which conditions. To do this, the line reports the processing result of the previous process (e.g. OK or NOK) to the Line Control module and makes a processing request.

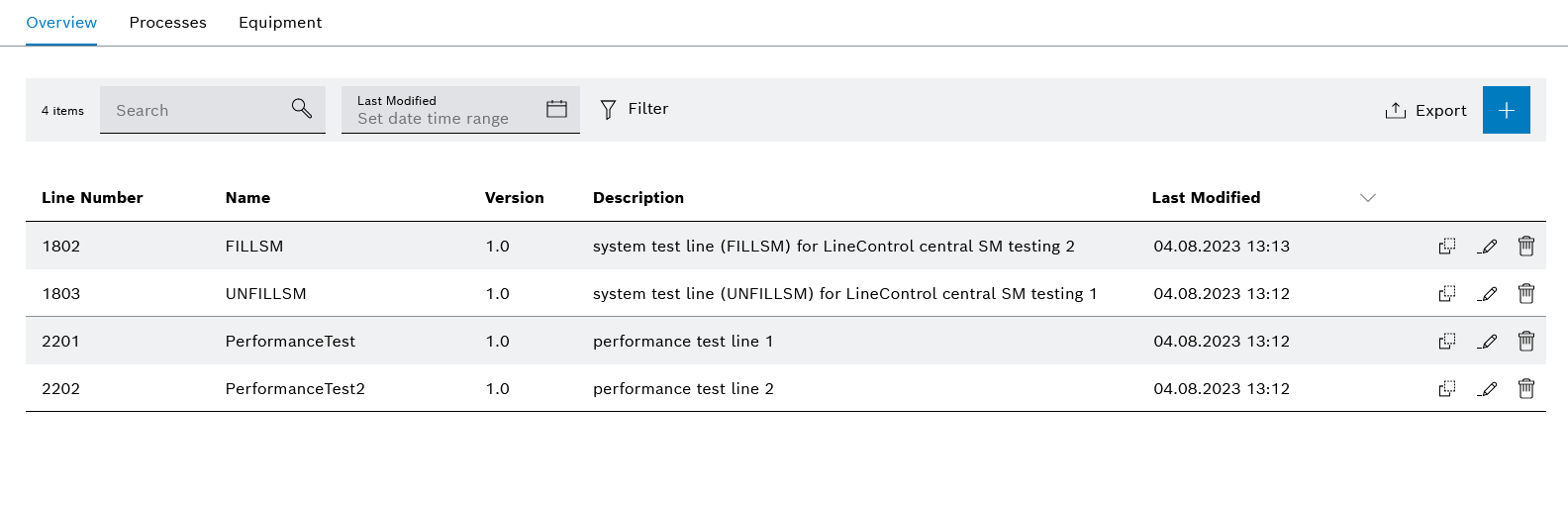

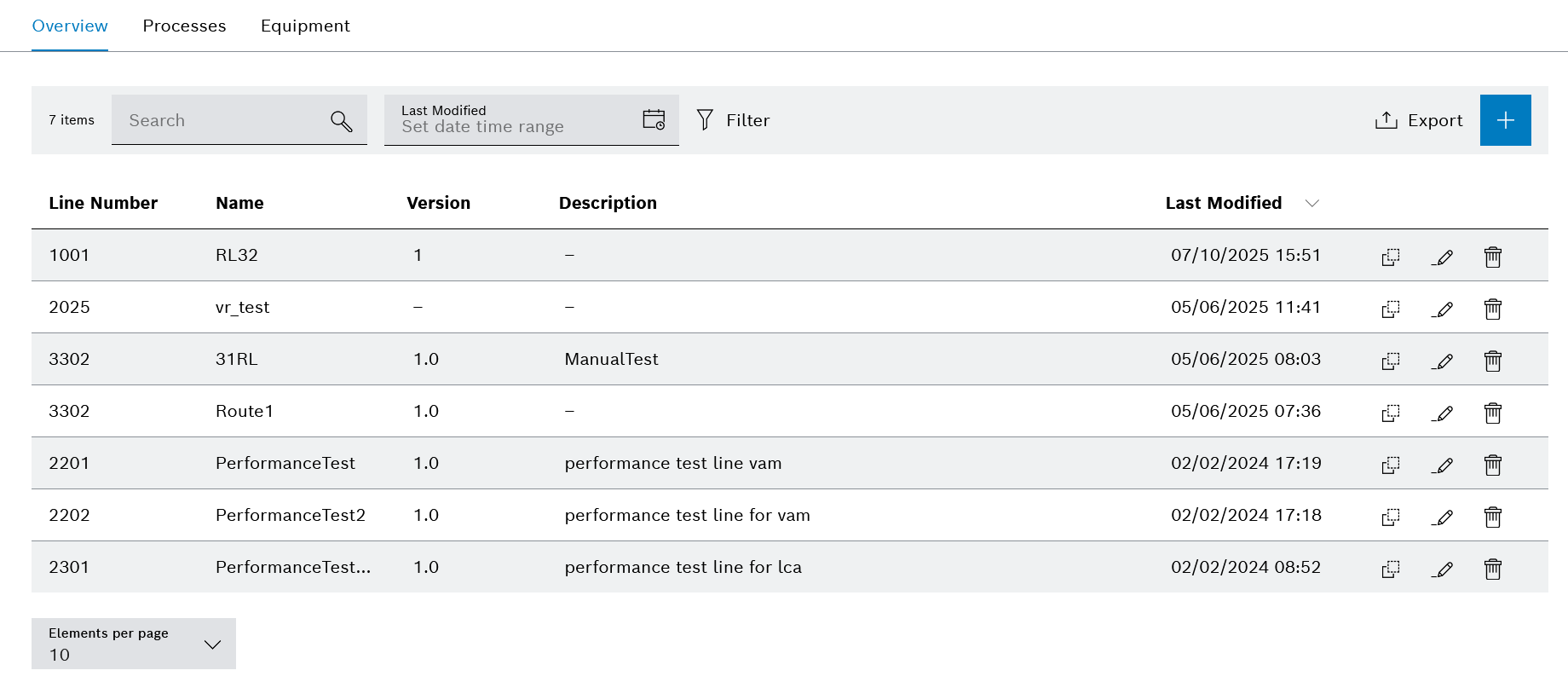

Under Line control > Route lists , process-based route lists are displayed, created and opened for editing in the Overview tab.

Header

Element/icon

Description

<nnn>

Total number of entries found

Search by line, name, version or description.

Enter the search term in full or in part.

Note upper and lower case.

Display route lists for a selected time period.

Enter the start and end dates and time to obtain the exact time range.

Find information

filter Filter

Filter by line number.

export Export

Export route lists as a CSV file (e.g. Excel table) or a PDF file.

Export tables

add_border

Create a process-based route list.

Create route lists

Route list entry

Element/icon	Description
	Copy route lists
	Edit route lists
	Delete route lists

Element/icon

Description

mdm_copy_icon

Copy route lists

mdm_edit_icon

Edit route lists

delete

Delete route lists

Create route lists

Prerequisite

LC power user or LC admin role

Procedure

Call up the Line control > Route lists > Overview tab.
In the header, click on to add a route list.
In the Create new route list dialog window, enter the line number and name of the route list.
Optionally, enter the version and a description of the route list.
Use Save to create the route list.

The route list appears in the Overview tab.
In the row of the created route list, use to open the route list for editing.
In the <Name der Fahrliste> table in the header of the Route list details area, use to add a route list entry.
Enter the name of the route list entry in the Add route list entry dialog window.
Select a process in the Process selection field.

Or:

In the Process selection field, use Create process to create a new process and enter the desired information in the Create process dialog window.

Create and edit process
Use Save to create the route list entry.
In the header of the Route list details area, use to add additional route list entries.
Targets define the route list entry that follows in the route list. To add targets to a route list entry, use in the row of the route list entry to open the entry for editing.
In the Edit route list entry window, select a route list entry in the following selection fields that is to follow according to the condition:
- OK target

  The selected route list entry is executed if the processing was successful.
- NOK target

  The selected route list entry is executed if the processing was erroneous.
- Target 1 , Target 2 , Target 3

  The selected route list entry is executed if a condition is met that is confirmed by the line.
Save the changes with Save.
Add targets to all other route list entries in the route list.
Click Save to transfer the created route list entries to the route list.

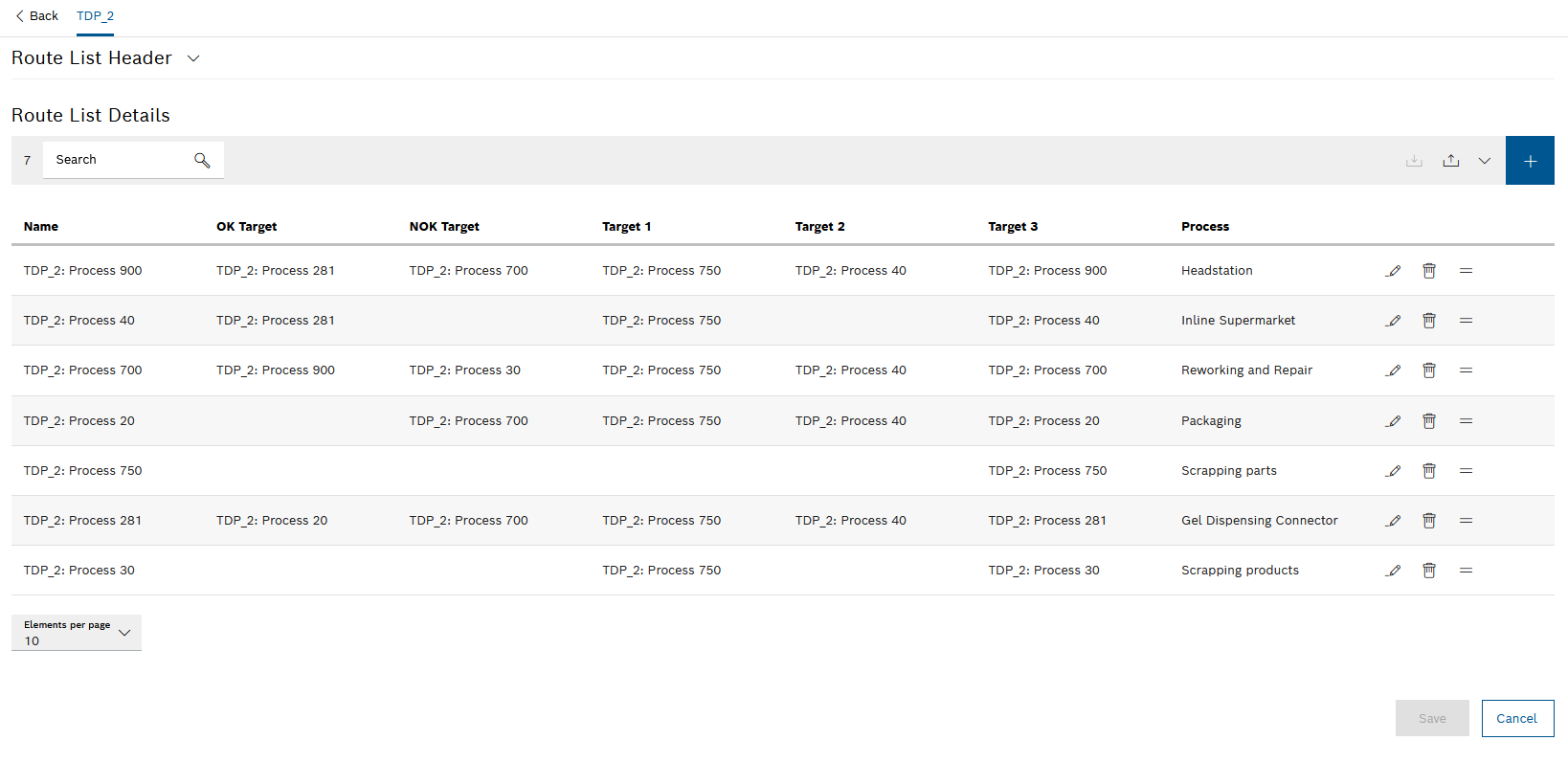

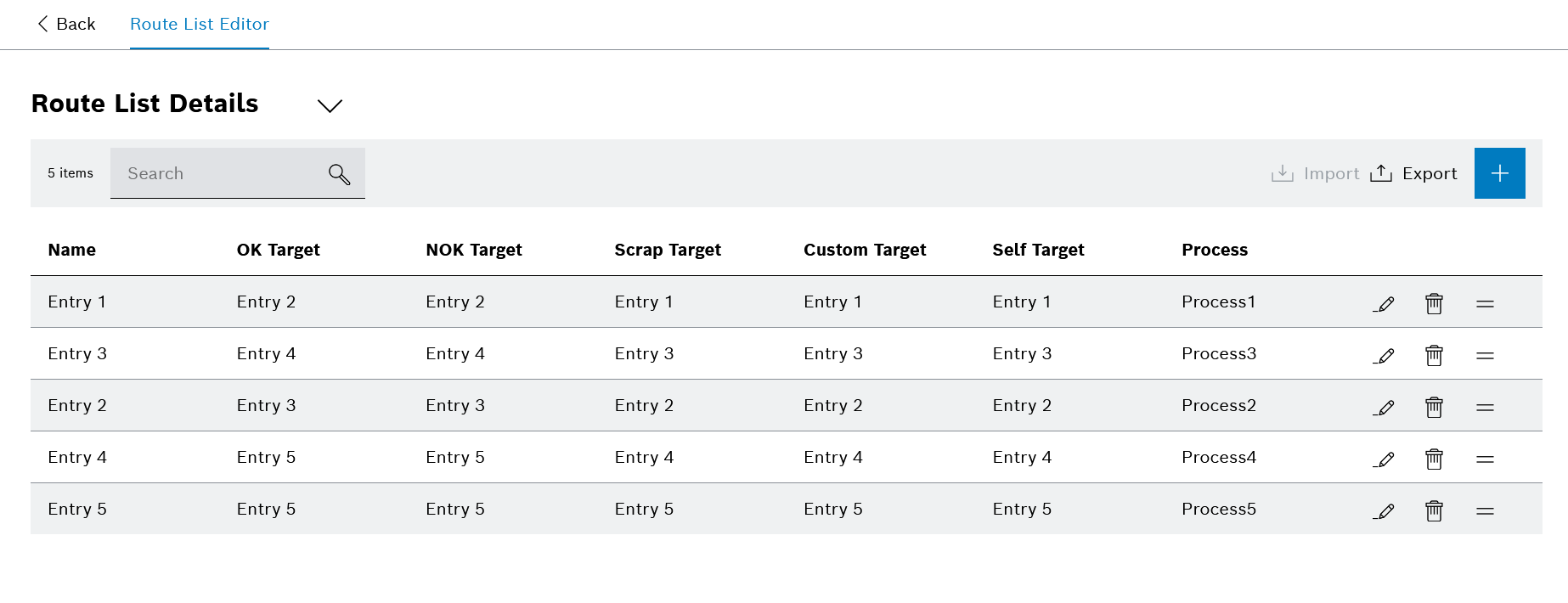

The route list entries with the associated information appear in the Route list details area.

In addition to the name of the route list, you can use back-left Back to switch to the Overview tab.

To copy a route list, continue with Copy route lists.

Transfer route list entries by importing a JSON file

Route list entries of a route list present in the Line Control module can be transferred to a route list without route list entries by exporting and importing the JSON file.

When copying a route list, only the header data of a route list is transferred.

Requirements

LC power user or LC admin role
The route list to which the route list entries are to be transferred does not contain any route list entries.

Copy route lists , Edit route lists

Procedure

Call up the Line control > Route lists > Overview tab.
In the row of the route list whose route list entries are to be transferred, open the route list for editing with .

The <Name der Fahrliste> table opens.
Export the route list in JSON format.

Export tables
Move the exported route list from the download folder of the web browser to a desired directory.
If necessary, open, edit and save the exported route list in a text editor (e.g. Notepad).
In the Line Control module, use to open a route list that does not contain any route list entries for editing.
In the table header of the Route list details area, use to open the file manager.
Select the previously saved JSON file and import it with Open.
Click Save to transfer the route list with the route list entries.
In the Save changes dialog window, use Save to confirm the import of route list entries.

The route list entries are transferred to the route list.

In addition to the name of the route list, you can use back-left Back to switch to the Overview tab.

To edit the route list, continue with Edit route lists.

Edit route lists

Requirements

LC power user or LC admin role
No part is assigned to the route list.

Procedure

Call up the Line control > Route lists > Overview tab.
In the row containing the route list, use to open the route list for editing.

The <Name der Fahrliste> table opens.
To edit the header data of the route list, use to open the Route list header data and make the desired changes.
To add a route list entry, proceed as follows:
- In the header of the Route list details area, use to create a route list entry.
- Enter the name of the route list entry in the Add route list entry dialog window.
- Select a process in the Process selection field.

  Or:

  In the Process selection field, use Create process to create a new process and enter the desired information in the Create process dialog window.

  Create and edit process
- To specify the following route list entry, in the selection fields OK target , NOK target , Target 1 , Target 2 or Target 3 , select a route list entry that is to follow according to the condition.

  Target 1 , Target 2 and Target 3 are available for conditions reported by the line.
- Use Save to create the route list entry.
To change a route list entry, proceed as follows:
- In the row containing the route list entry, use to open the route list entry for editing.
- Make the desired changes.
- Save the changes with Save.
To delete a route list entry, in the row containing the route list entry, use to remove the entry.

The route list entry is deleted from the route list without a message.
To move a route list entry in the route list for a better overview, drag the route list entry to the desired position with and release the mouse button (drag and drop).
Save the changes with Save.

The edited details and the added route list entries appear in the route list entry in the Route list details area.

In addition to the name of the route list, you can use back-left Back to switch to the Overview tab.

To delete a route list, continue with Delete route lists.

Copy route lists

When a route list is copied, the header data Line number , Version and Description of the route list are transferred. Route list entries are not transferred.

Prerequisite

LC power user or LC admin role

Procedure

Call up the Line control > Route lists > Overview tab.
Click on in the row of the the route list to be copied.
Enter a name for the copy in the Copy Route List <Name der Fahrliste> dialog window.
If necessary, adjust the line number, version and description.
Press Save to create a copy of the route list.

The copy of the route list appears under the entered name with the edited information in the Overview tab.

To copy and paste route list entries from another route list, continue with Transfer route list entries by importing a JSON file.
To insert route list entries, continue with Edit route lists.

Delete route lists

Requirements

LC admin role
No part is assigned to the route list.

Procedure

Call up the Line control > Route lists > Overview tab.
In the row of the route list to be deleted, use to delete the route list.
To delete the route list permanently, click Delete in the dialog window.

The route list is removed from the Line Control module and no longer appears in the Overview tab.
