Show special values

Display special values transmitted as part of the process message in the diagram.

Prerequisites

  • Process Quality User or Process Quality Expert role

  • At least two measuring points are defined for the selected device type.

    Measuring points are defined in the Master Data Management module.

  • Special values are transmitted as part of the process message.

Procedure

  1. Open the Process Quality menu.

  2. In the overview, click the desired device tile:
    Select device for analysis

  3. In the panel to the right of the diagram, click locator-error Special values.

The special values are shown with a circle.

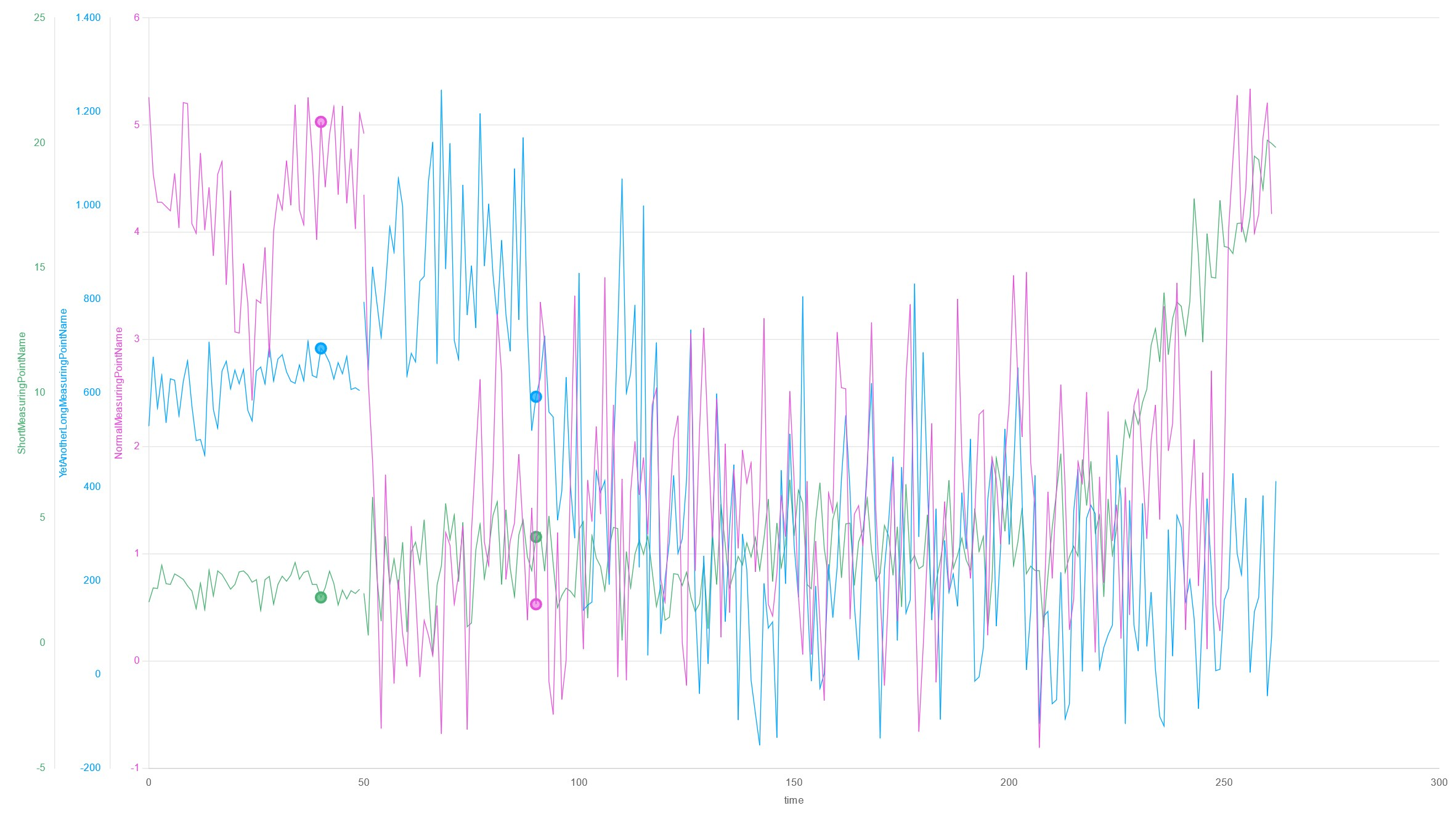

pqm_chart_with_sv

To hide the special values , click locator-error.

Special values can only be displayed for all or no measuring points. It is not possible to display special values for individual measuring points.
