Product Setup Management — user interface

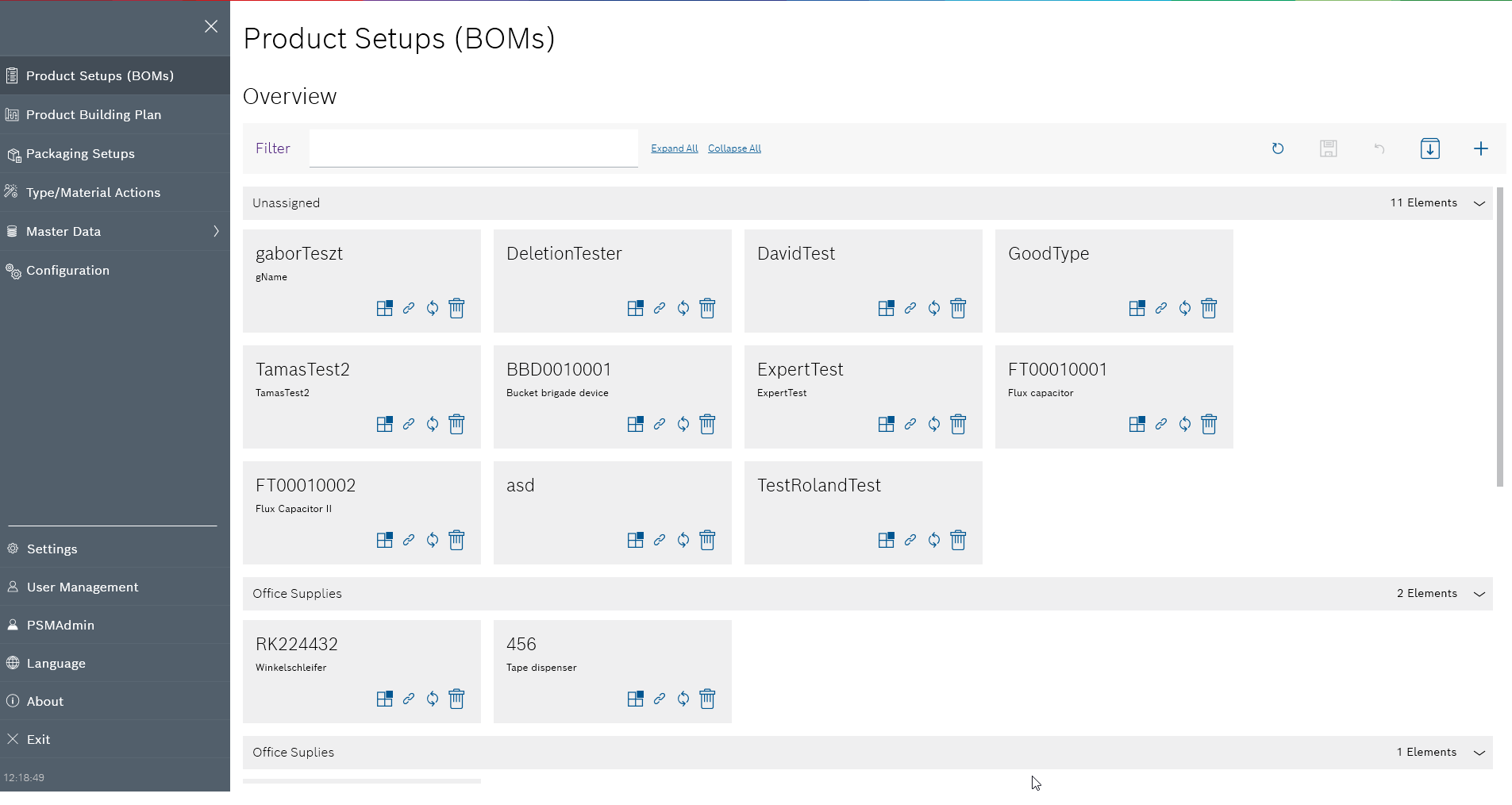

The menu with the menu items of the Product Setup Management client is shown on the left-hand side. The main display area is located on the right-hand side.
The following menu items are used to operate the client:
Product Setup Management — operation
| Menu | Functions | Section |
|---|---|---|
Product parts lists |
Manage Product parts lists. |
|
Product assembly plan |
Manage product assembly plans. |
|
Packaging Instructions |
Manage packaging specifications with instructions. |
|
Type/Material actions |
Adjust actions and assign to specific products, components and materials. |
Specifications for advanced functions can be implemented under the Master data menu item:
Product Setup Management — master data
| Menu | Functions | Section | ||
|---|---|---|---|---|
Aktioner |
Create and process actions to define parameters for testing during packing.
|
|||
Part types |
Define part types for which a product parts list can be created (e.g. test part or series production).
|
|||
Material Classes |
Create and process material classes for products, components and materials.
|
|||
Groupings |
Group products and packaging specifications for a better overview.
|
|||
Categories |
Classify products, components, materials of products and packaging materials into categories.
|
General settings for the user interface can be implemented under the following menu items:
| Menu | Functions | Section | ||
|---|---|---|---|---|
|
Export and import configuration files.
|
|||
Settings |
Configure general display settings.
|
|||
Admin (user name) |
User logout. |
|||
Language |
Setting the language. |
|||
A user |
Display information about the client. |
|||
Exit |
Close the Product Setup Management client. |
The following icons can be used in the menu:
| Symbol | Description |
|---|---|
|
Collapse menu. |
|
Expand menu. |
|
Expand menu items under Master data. |
|
Collapse menu items under Master data. |
