Station error

The following reports are available:

Error Numbers and Pareto Text
Facilities Pareto

Error Numbers and Pareto Text

The Error Numbers and Pareto Text report shows station errors in the form of a Pareto chart.

Element/icon

Description

Error Number

ID of the station error that occurred

Error Text

Error text that was configured for this station error

info-i-circle

Displays more details about the station error

The icon is displayed above any line when the mouse is moved over it.

Duration/MTTR (bar)

Duration of the station errors or average duration, i.e. total duration divided by the number of station errors in the form of a bar

The bar chart scales separately at each level (different colors)

Duration/MTTR

Duration of the station errors or average duration, i.e. total duration divided by the number of station errors

Count

Number of station errors that occurred

Facility

Facility at which this station error occurred.

Device Text

Optional, additional device error text for a station error

Diagram options

Element

Description

Display

Selection between Merged Durations and Durations with Overlaps

Durations with overlaps occur when more than one error occurs simultaneously at one or more facilities.

Order By (Descending)

Selection between Duration and Count

Number of Rows

Number of rows added by clicking Show More

Duration

Display as a total or MTTR

Only when selecting the Durations with overlaps display

Facilities Pareto

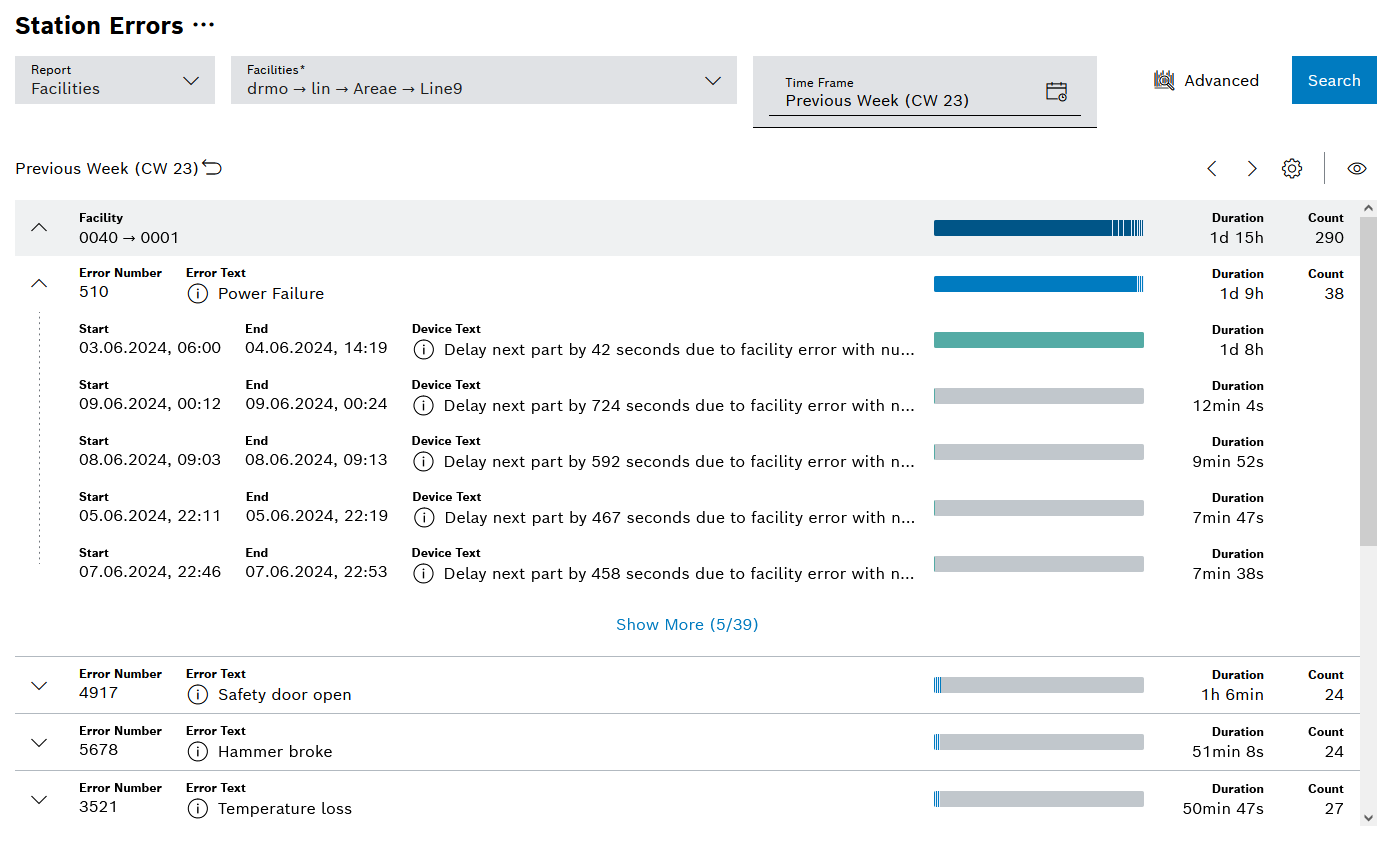

The Facilities Pareto report shows station errors over facilities in the form of a Pareto chart.

kpi_interruptions_station_errors_facility_pareto

Element/icon

Description

Facility

Facility at which this station error occurred.

Error Number

ID of the station error that occurred

Error Text

Error text that was configured for this station error

info-i-circle

Displays more details about the station error

Duration/MTTR (bar)

Duration of the station errors or average duration, i.e. total duration divided by the number of station errors in the form of a bar

The bar chart scales separately at each level (different colors)

Duration/MTTR

Duration of the station errors or average duration, i.e. total duration divided by the number of station errors

Count

Number of station errors that occurred

Device Text

Optional, additional device error text for a station error

Diagram options

Element

Description

Display

Selection between Merged Durations and Durations with Overlaps

Durations with overlaps occur when more than one error occurs simultaneously at one or more facilities.

Duration

Display as a total or MTTR

Only when selecting the Durations with overlaps display

Order By (Descending)

Selection between Duration and Count

Number of Rows

Number of rows added by clicking Show More.

The bar chart scales separately at each level (different colors)

Station errors by time

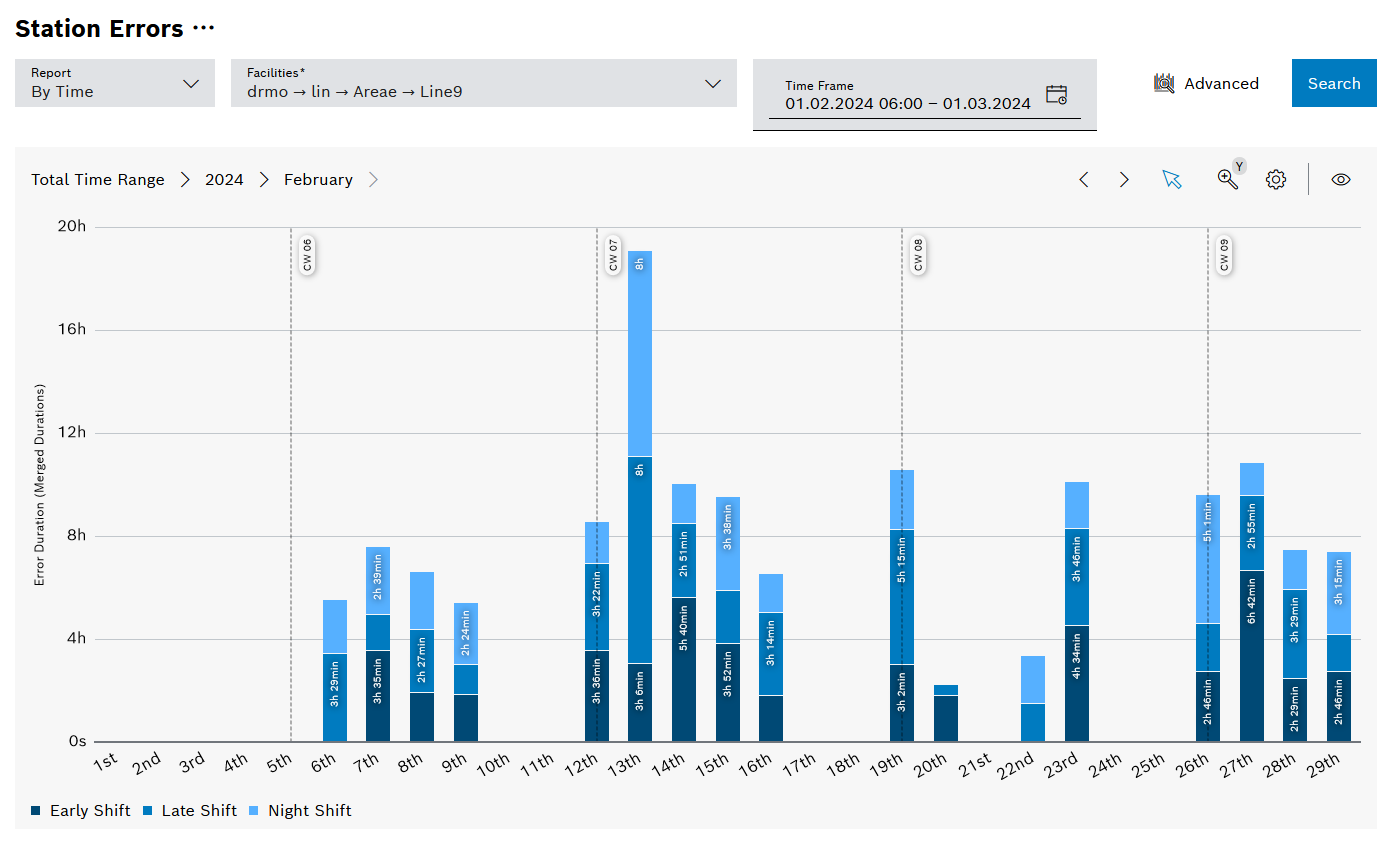

The Station errors by time report shows an overview of the duration of station errors.

kpi_report_interruptions_staition_errors_time

Legend

Click on the elements in the legend to show or hide them. Hidden elements are grayed out in the legend and the preceding icon is rotated.

Element

Description

<xy> Shift

Displays the station errors that occurred during in the corresponding shift type (e.g. early, late, night)

Shown as stacked by shift type only if grouped by day (e.g. time range is less or equal one month).

Diagram options

Element

Description

Display

Selection between Merged Durations and Durations with Overlaps

Durations with overlaps occur when more than one error occurs simultaneously at one or more facilities.

Duration

Display as a total or MTTR.

Only when selecting the Durations with overlaps display

Error Numbers

Option to filter by Filter by error numbers of station errors that have occurred

Click edit_blue to filter by error numbers.
