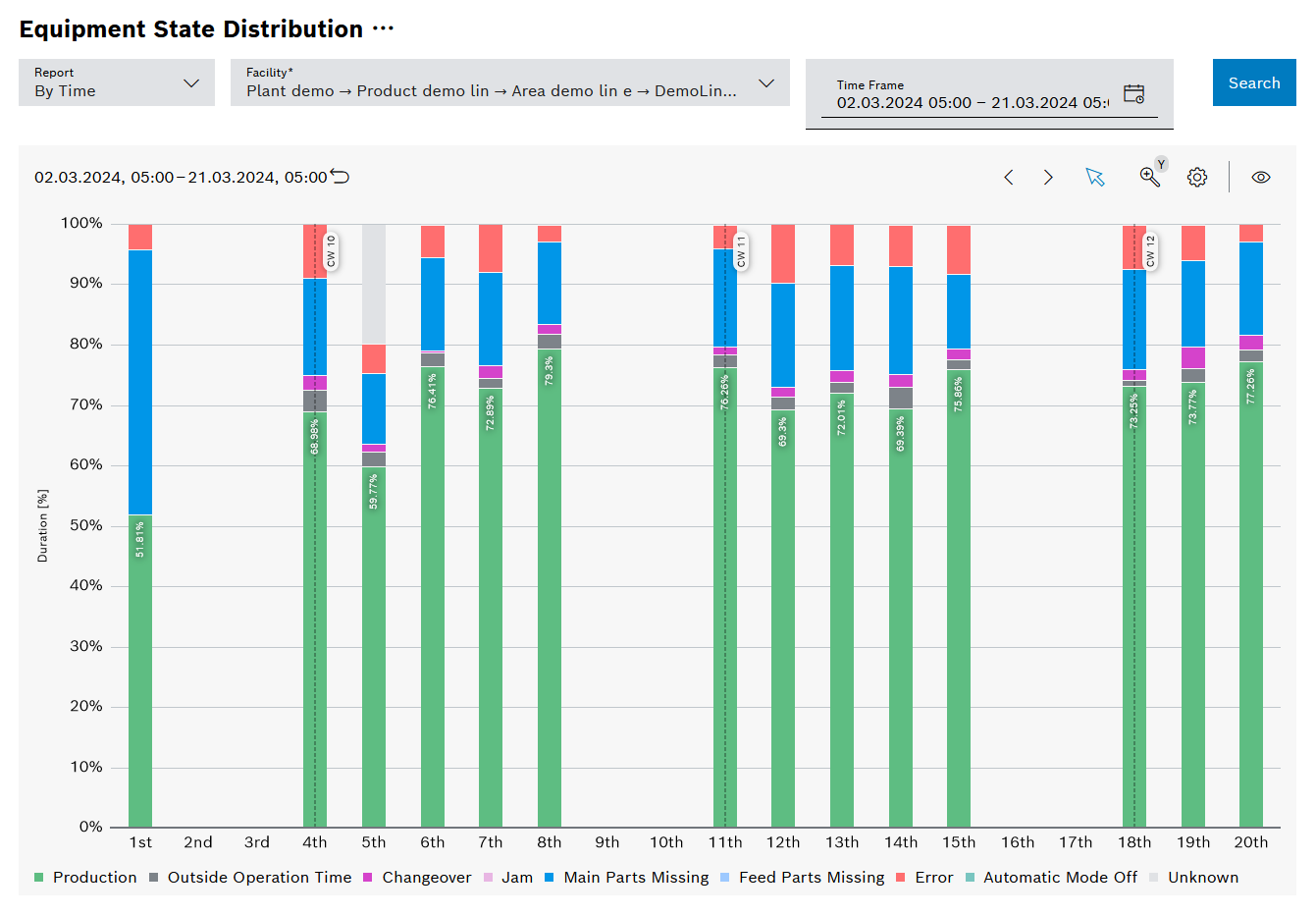

Equipment State Distribution
The Equipment State Distribution report provides information for analyzing the state of one or more facilities over time.
Legend
Click on the elements in the legend to show or hide them. Hidden elements are grayed out in the legend and the preceding icon is rotated.
| Element | Description |
|---|---|
Production |
Duration/ratio in which the piece of equipment produces |
Outside Operation Time |
Duration/ratio in which no production is planned for the piece of equipment (planned downtime) |
Changeover |
Duration/ratio of changeover |
Jam |
Duration/proportion of jam |
Main Parts Missing |
Duration/proportion of time spent waiting for the main part |
Feed Parts Missing |
Duration/proportion of time spent waiting for the feed part |
Errors |
Duration/proportion of time in which production was not possible due to a station error |
Automatic Mode Off |
Duration/ratio in which the facility was not ready for production |
Unknown |
Duration/ratio in which the facility was unable to produce due to an unknown condition |
Diagram options
| Element | Description | ||
|---|---|---|---|
Format |
Relative: Shows the duration in % Absolute: Shows the duration in hours, minutes and seconds |
||
Split Days Into Shifts |
If activated, the equipment states per shift are displayed.
|
|
If more than one event for one facility is detected at the same time, the event with the higher priority is taken into account. The priority of the events corresponds to the order in the legend (descending) |
