Part count and loss processes

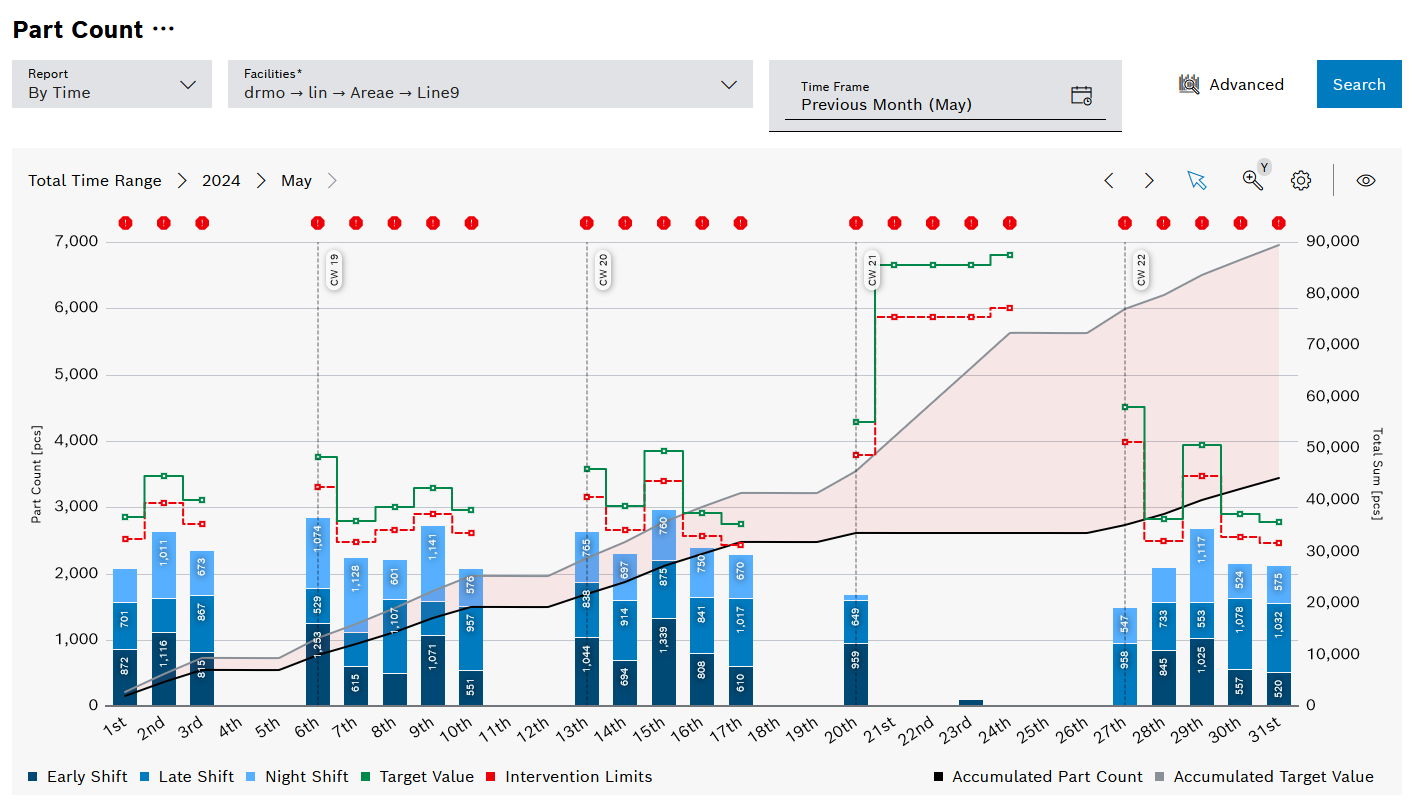

The Part Count and Loss Processes report shows the part count and loss processes produced by time (production day, month or year, …​) or by facilities (line, station, station index, function unit, …​).

Ansicht Stückzahlen

Legend

Click on the elements in the legend to show or hide them. Hidden elements are grayed out in the legend and the preceding icon is rotated.

Element Description

<xy> Shift

Display of part counts/quality losses produced in the corresponding shift type (e.g. early, late, night)

Target Value

Part count to be achieved

Intervention Limits

Validity range for the setpoint. Action must be taken if the validity range is undershot or exceeded. If this is the case for past days, alert-error-filled is displayed for these days.

Accumulated Part Count

Total of produced part counts

Accumulated Target Value

Cumulative setpoints

Diagram options

Element Description

Part Count

Selection for displaying part counts or loss processes.

Highlight Negative Cumulative Difference

Highlight negative values in a light red area if the cumulative actual part count is less than the target part count

Only when selecting the Grouping by time report.

Loss processes

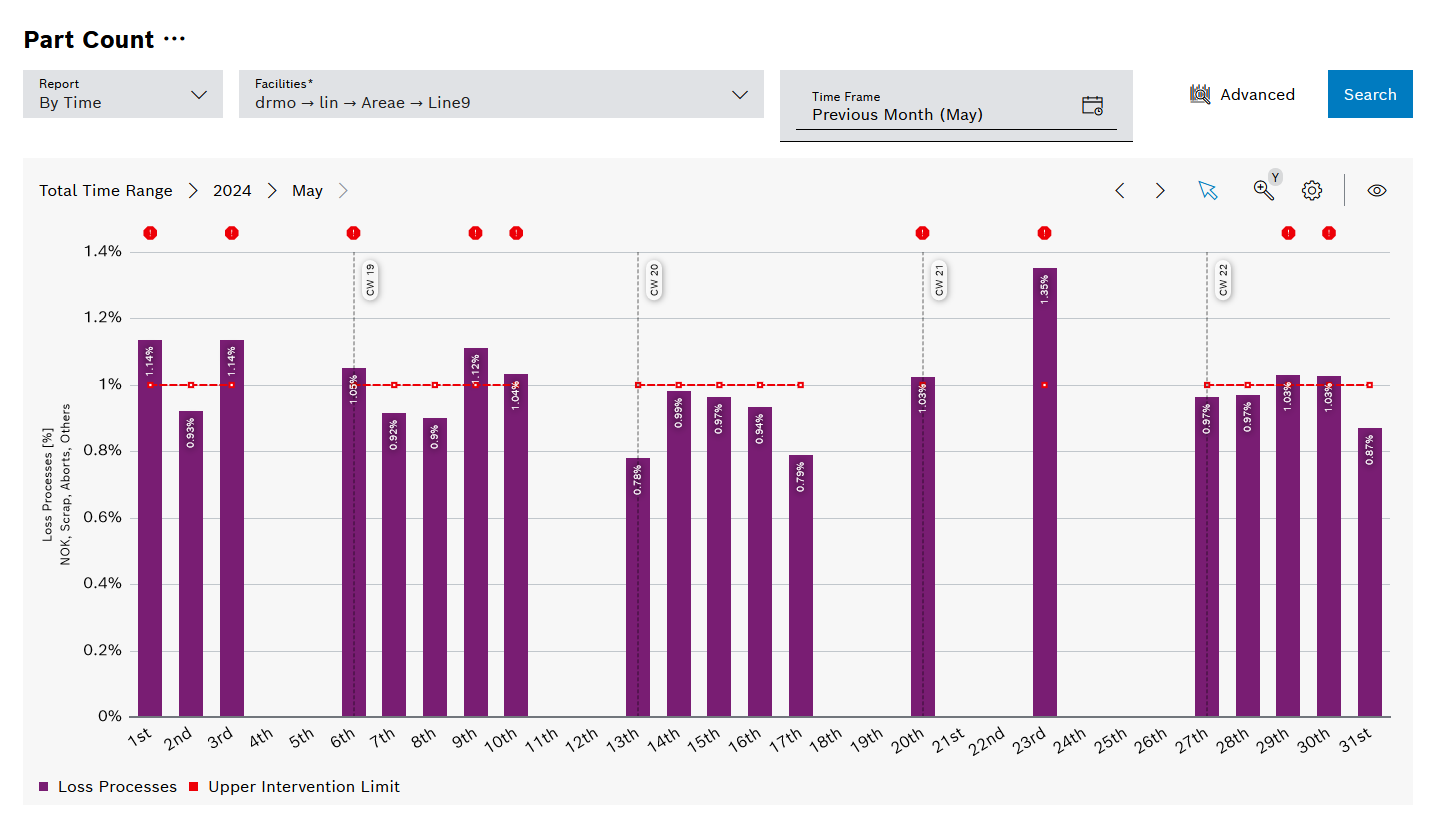

The Loss processes diagram shows process runs that have not been reported as "OK".

To display the Loss processes diagram, click on the Loss processes radio button in the diagram options of the Part count report.

kpi_view_part_count_losses_2024_01_02

Legend

Click on the elements in the legend to show or hide them. Hidden elements are grayed out in the legend and the preceding icon is rotated.

Element Description

Loss processes

Display of losses incurred

Upper intervention limit

Upper validity range of the setpoint

Sum Loss Processes

Cumulative sum of the loss processes

Only with Display format = Absolute

Diagram options

Element Description

Loss processes

Selection for displaying loss processes or part counts

Display format

Selection between absolute losses or relative losses in relation to all process runs

Visible Losses

Shows NOK, scrap, abort and other process runs

Split Days Into Shifts

When activated, display of loss processes per shift

Only with Display format = Relative or when selecting the Grouping by time report, and only when grouping by day (e.g. one month as the time range)

Auto-Scale Y-Axis

Automatic scaling of the loss processes to the maximum value

Only with Display format = Relative
