System configuration section

The System configuration section can be used to configure the parameters for KPI reporting, Shift Book and Andon Live. In addition to the global configuration that applies to all facilities, certain parameters can be overwritten for specific facilities.

Prerequisites

Procedure

Select System Configuration section from the section drop-down list options.

The System configuration section opens.

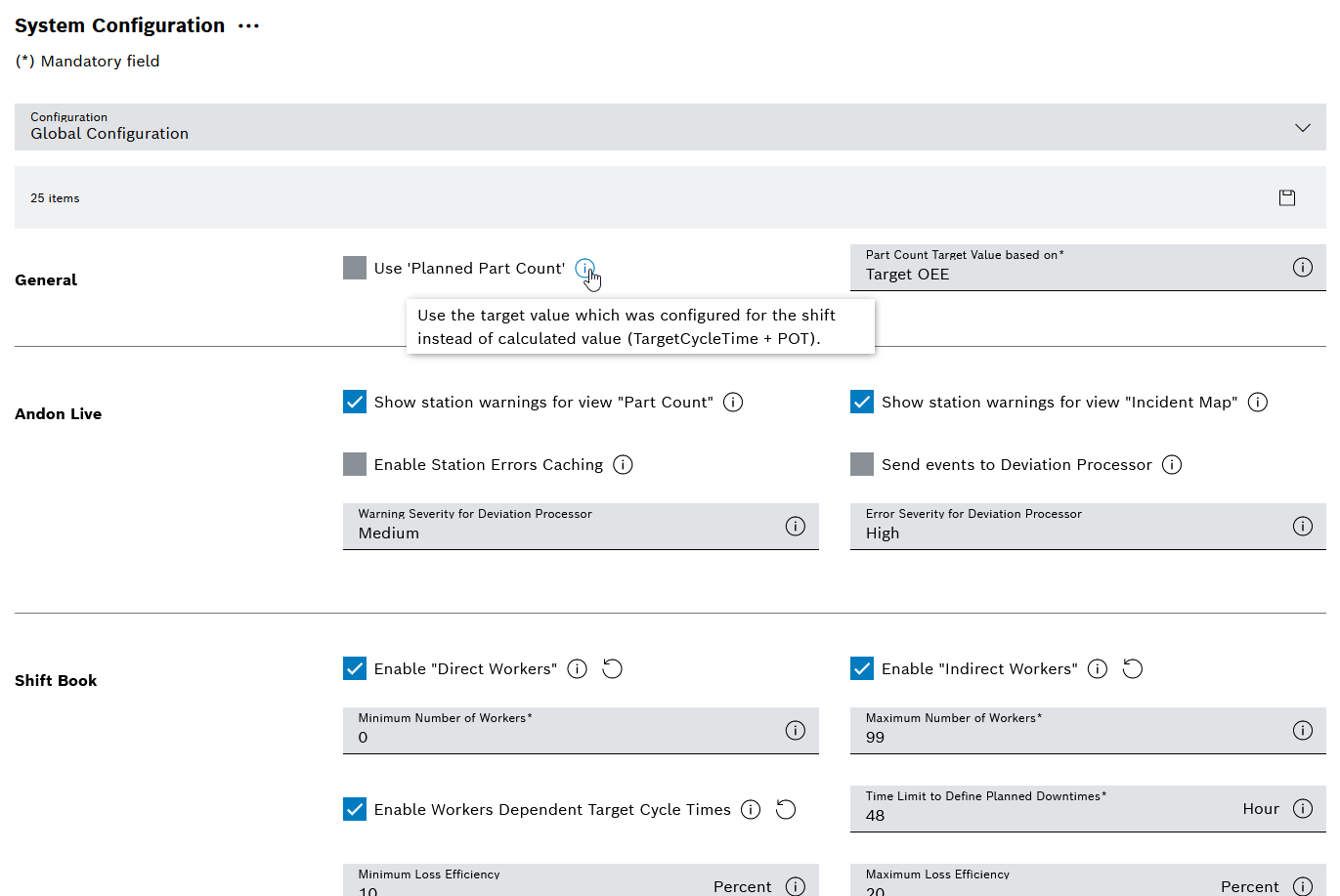

kpi_toolbar_system_configuration

The individual parameters and the associated help texts are only available in English, regardless of which portal language is set.

Global configuration

In the Global configuration view, the configuration parameters are edited globally for the entire shopfloor management. These can be overwritten for each facility ( Facility-specific configuration ).

Prerequisites

Procedure

  1. Select Global configuration in the Configuration drop-down list.

    The parameters for the global configuration are displayed.

  2. Configure parameters.

    • Activate or deactivate parameters with checkboxes.

    • Enter values for parameters with input fields.

      At least one parameter must be changed.

  3. Click save Save.

The global parameters are saved and displayed in the global configuration.

Facility-specific configuration

The Facility-specific configuration view is used to edit the configuration parameters for individual Shopfloor Management facilities. This overwrites the relevant global parameter settings for the respective facility ( Global configuration ).

Prerequisites

Procedure

  • In the Configuration drop-down list, select a value under Facility-specific configuration.

The parameters for the configuration of the selected facility are displayed in tabular form.

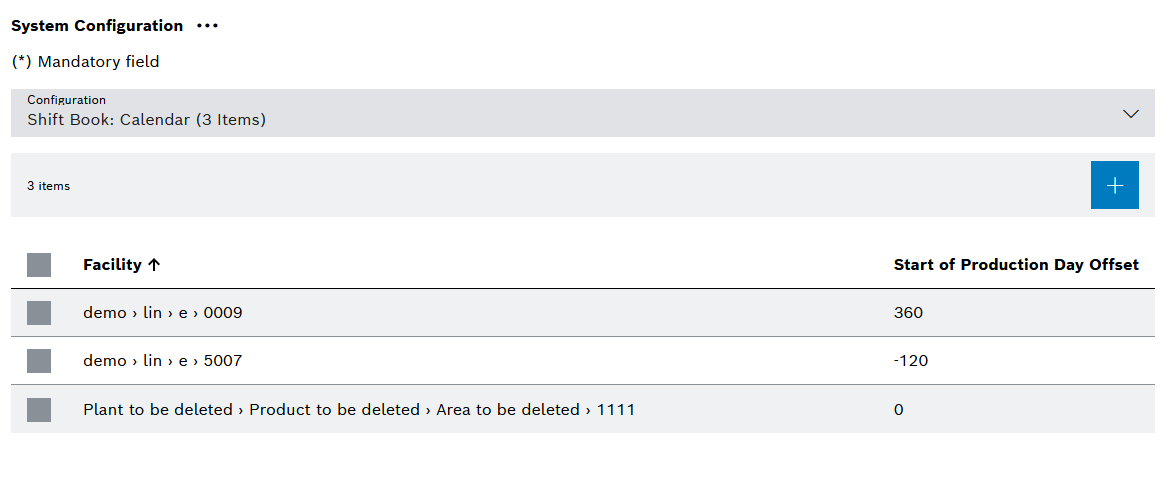

Aufbau Einrichtungsbezogene Konfiguration

Add facility-specific configuration

Prerequisites

Procedure

  1. Click add_border.

    The Add location-specific configuration dialog opens.

  2. Select an appropriate facility from the drop-down list.

  3. Configure parameters.

    • Activate or deactivate parameters with checkboxes.

    • Enter values for parameters with input fields.

  4. Click Save.

The facility-specific configuration is displayed in the table.

Not all system configuration parameters can be set on a facility-specific basis.

Edit facility-specific configuration

Prerequisites

Procedure

  1. Select the relevant facilities by activating the checkbox at the end of the relevant row.

  2. Click mdm_edit_icon Edit.

    The Edit facility-specific configuration dialog opens.

  3. Make changes.

    • Activate or deactivate parameters with checkboxes.

    • Enter values for parameters with input fields.

  4. Click Save.

The changes to the facility-specific configuration are saved.

Delete facility-specific configuration

Prerequisites

Procedure

  1. Select one facility or multiple facilities by activating the checkbox at the end of the relevant row.

  2. Click delete Delete.

    The Delete facility-specific configurations? dialog opens.

  3. Click Delete.

The facility specific configuration(s) is/are deleted.
