Export process data

Export enables the external processing of available process data within a selected time range.
Different data is exported depending on the selected file format:

  • JSON format: All standard PPMP fields and all additionally available metadata

  • CSV: Selected standard PPMP fields

    • Comma separated with decimal point

    • Semicolon separated with decimal comma

PPMP = Production Performance Manager Protocol for communication between machines.
It defines the format of incoming process messages.

Prerequisite

Process Quality Expert role

Procedure

  1. Open the Process Quality menu.

  2. In the overview, click the desired device tile:
    Select device for analysis

  3. Click filter in the header:
    Use a filter

  4. Define the desired time range and activate it with Apply.

  5. Click download in the header.

    If the screen is smaller, this function is located behind the icon select.

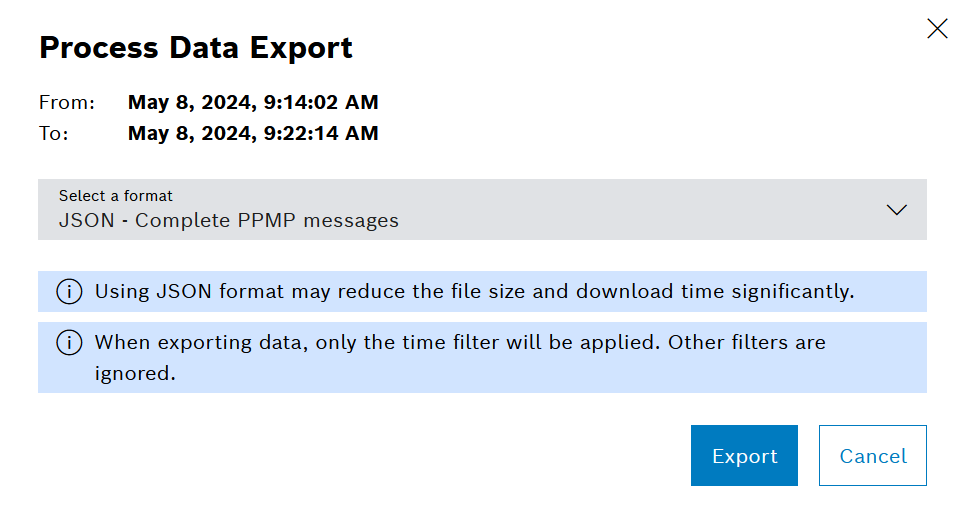

  6. Select the desired format in the Export process data dialog.

    pqm_export_process_data_2024_01_01
  7. To start the export, click Export.

The file is saved in the default download area of the computer.
