Change axes in the diagram
Configure the measured values displayed in the diagram via the axes (e.g. torque over angle instead of torque over time). At least one X-axis and at least one and a maximum of three Y-axes must be defined.
|
Show and hide Y-axes without changing the configuration: |
Prerequisites
-
Process Quality UserorProcess Quality Expertrole -
At least two measuring points are defined for the selected device type.
Measuring points are defined in the Master Data Management module.
Procedure
-
Open the Process Quality menu.
-
In the overview, click the desired device tile:
Select device for analysis -

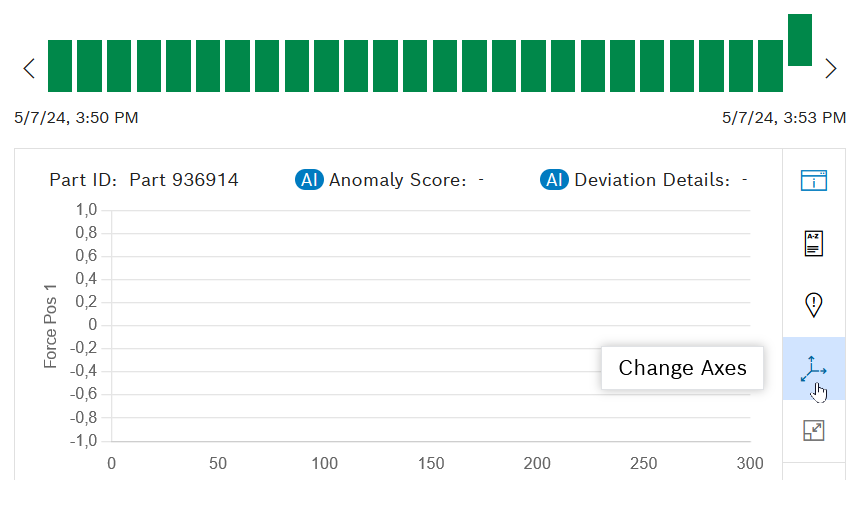

In the panel to the right of the diagram, click
Change axes.
-
Enter information in the dialog window.
-

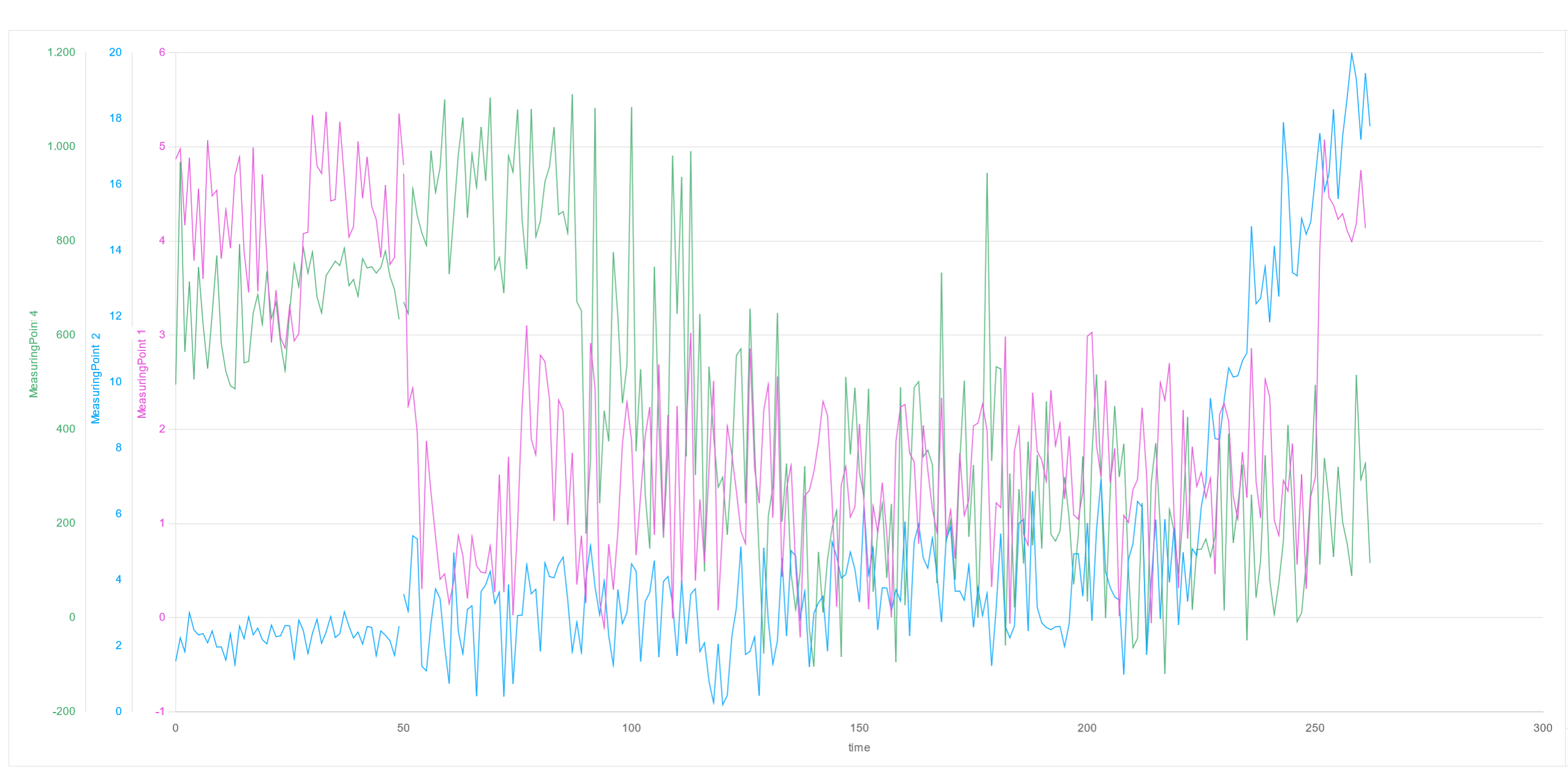

To configure an additional Y-axis, click on + Add axis.
A maximum of three Y-axes can be configured.
A measuring point can only be selected once as a Y-axis. -
To delete a Y-axis, click on
next to the axis. -
Apply changes with Confirm.
The axis configuration is used in the diagram. The configuration of the axes is linked to the device type, the logged-in user, the browser used and the hardware.
|
The colors of the process curves and the Y-axes are linked to the order of the Y-axes, not to a measuring point. If the order of the Y-axes changes, the colors in the diagram change. The colors are not configurable. |
