Configure columns

To configure the columns in list view to show or hide process data. Process data are:

  • All standard PPMP fields

  • All additionally available process data (metadata)

The configuration of the columns is linked to the device type, the logged-in user, the browser and the hardware.

Prerequisites

  • Process Quality User or Process Quality Expert role

  • For anomaly detection: Process Intelligence (PQM) role add-on

Procedure

  1. Open Process quality in the menu.

  2. In the overview, click the desired device tile:
    Select device for analysis

  3. To change to list view, click list-view List in the header.

  4. Click settings in the header.

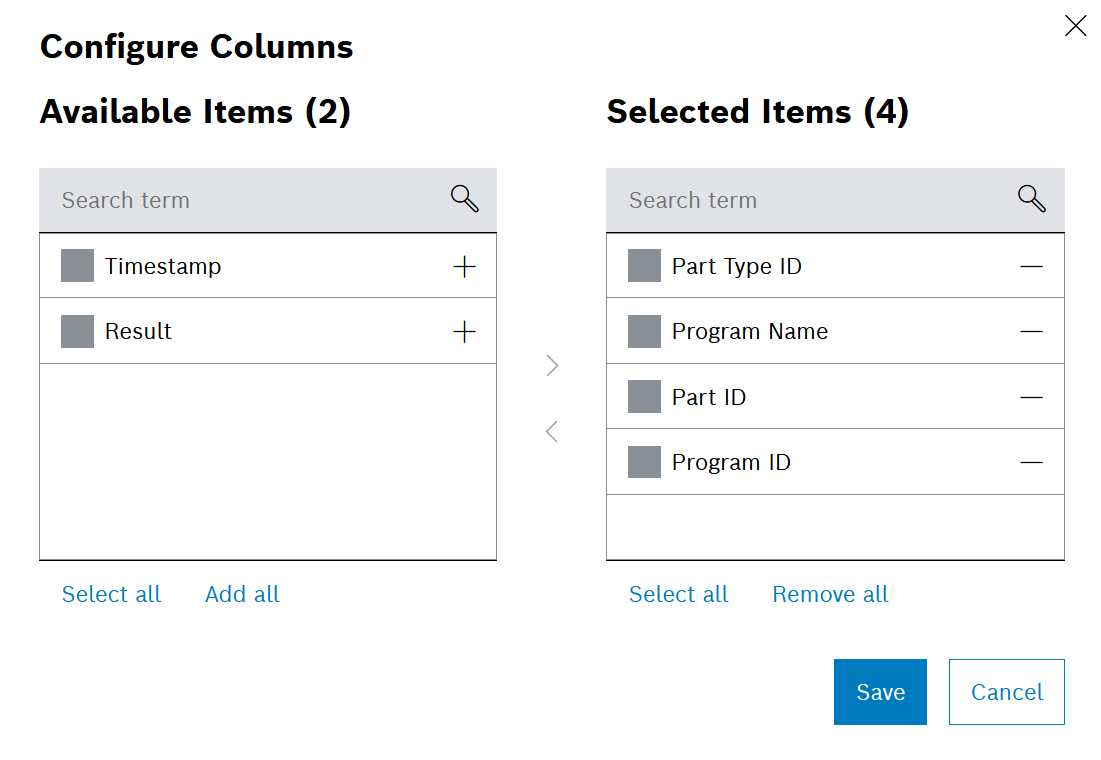

    pqm_config_columns
  5. In the Configure columns dialog window, select the elements to be displayed in the list.

  6. To change the order of the selected elements in the list, move the entries using drag and drop. The first entry is displayed in the list view on the left.

  7. Accept the changes with Save.

The process data of the selected elements is displayed in the list view.
