Logging

The following settings refer to the logging within the Information Router, for both cloud and on premise scenarios.

Environment variable	Meaning	Default value	Possible values
LOGGING__LOGLEVEL_DEFAULT	Warning	The default log level for the Information Router.	None Critical Error Warning Information Debug

Environment variable

Meaning

Default value

Possible values

LOGGING__LOGLEVEL_DEFAULT

Warning

The default log level for the Information Router.

None
Critical
Error
Warning
Information
Debug

Monitoring settings

Environment variable	Meaning	Default value	Required
OTEL_ENABLED	{observabilityOtelEnabled}	false	No
OTEL_EXPORTER_OTLP_ENDPOINT	{observabilityOtlpUrl}	-	Yes (if OTEL_ENABLED is true)
OTEL_LOGS_EXPORTER	{otelLogsExporter}	none	No
OTEL_METRICS_EXPORTER	{otelMetricsExporter}	none	No
OTEL_TRACES_EXPORTER	{otelTracesExporter}	none	No
OTEL_EXPORTER_OTLP_PROTOCOL	{otelTransportProtocol}	grpc	No
OTEL_TRACES_SAMPLER	{otelTracesSampler}	parentbased_always_on	No
OTEL_TRACES_SAMPLER_ARG	{otelTracesSamplerArg}	-	No
OTEL_RESOURCE_ATTRIBUTES	Key-value pairs to be used as resource attributes for OpenTelemetry SDK, containing e.g. service.name, service.version, deployment.environment.	-	Yes (if OTEL_ENABLED is true)
OTEL_EXPORTER_OTLP_HEADERS	Header of OpenTelemetry exporter including authentication at the APM server.	-	Yes (if OTEL_ENABLED is true)

Environment variable

Meaning

Default value

Required

OTEL_ENABLED

{observabilityOtelEnabled}

false

OTEL_EXPORTER_OTLP_ENDPOINT

{observabilityOtlpUrl}

Yes (if OTEL_ENABLED is true)

OTEL_LOGS_EXPORTER

{otelLogsExporter}

none

OTEL_METRICS_EXPORTER

{otelMetricsExporter}

none

OTEL_TRACES_EXPORTER

{otelTracesExporter}

none

OTEL_EXPORTER_OTLP_PROTOCOL

{otelTransportProtocol}

grpc

OTEL_TRACES_SAMPLER

{otelTracesSampler}

parentbased_always_on

OTEL_TRACES_SAMPLER_ARG

{otelTracesSamplerArg}

OTEL_RESOURCE_ATTRIBUTES

Key-value pairs to be used as resource attributes for OpenTelemetry SDK, containing e.g. service.name, service.version, deployment.environment.

Yes (if OTEL_ENABLED is true)

OTEL_EXPORTER_OTLP_HEADERS

Header of OpenTelemetry exporter including authentication at the APM server.

Yes (if OTEL_ENABLED is true)

All settings above can be configured through: Environment Variable, helmchart ConfigMap (otel-observability-configmap handled by utility-toolkit), or helmchart properties (.Values.global.observability.* or .Values.local.observability.*).

HostOptions Configuration

HostOptions control the behavior of the Information Router host process, including service startup/shutdown and background service exception handling. These settings can be configured via environment variables, Helm chart properties, or ConfigMaps, following the same conventions as other configuration sections.

Environment Variable Description Mandatory Default Value

Environment Variable	Description	Mandatory	Default Value
`HostOptions__ShutdownTimeout`	Timeout duration for graceful shutdown of the Information Router service. Should be less than the Kubernetes termination grace period (typically 30 seconds) to ensure proper cleanup before the pod is forcefully terminated.	No	"00:00:25"
`HostOptions__ServicesStartConcurrently`	Determines whether background services start concurrently or sequentially during startup.	No	"false"
`HostOptions__ServicesStopConcurrently`	Determines whether background services stop concurrently or sequentially during shutdown.	No	"false"
`HostOptions__BackgroundServiceExceptionBehavior`	Specifies the behavior when any BackgroundService instance throws an unhandled exception. Possible values: "StopHost", "Ignore", etc.	No	"StopHost"

HostOptions__ShutdownTimeout

Timeout duration for graceful shutdown of the Information Router service. Should be less than the Kubernetes termination grace period (typically 30 seconds) to ensure proper cleanup before the pod is forcefully terminated.

"00:00:25"

HostOptions__ServicesStartConcurrently

Determines whether background services start concurrently or sequentially during startup.

"false"

HostOptions__ServicesStopConcurrently

Determines whether background services stop concurrently or sequentially during shutdown.

"false"

HostOptions__BackgroundServiceExceptionBehavior

Specifies the behavior when any BackgroundService instance throws an unhandled exception. Possible values: "StopHost", "Ignore", etc.

"StopHost"

Graceful Shutdown Configuration

The Information Router supports graceful shutdown to ensure proper cleanup of resources and completion of ongoing tasks before termination. The following settings control the graceful shutdown behavior.

Environment Variable

Description

Mandatory

Default Value

GracefulShutdownSettings__DrainInterval

Include time to wait after unsubscribing from topics before shutting down publishers allowing in-flight messages to be processed.

"00:00:10"

Service credentials

The Information Router service credentials (username and password) need to be provided to MACMA for the means of service authentication.

Environment variable	Meaning	Default value
SERVICECREDENTIALS__USER	The username used for MACMA service authentication.	development-connectivity-backend
SERVICECREDENTIALS__PASSWORD	The password used for MACMA service authentication.	-

Environment variable

Meaning

Default value

SERVICECREDENTIALS__USER

The username used for MACMA service authentication.

development-connectivity-backend

SERVICECREDENTIALS__PASSWORD

The password used for MACMA service authentication.

The service username and password need to be entered in the MACMA portal beforehand.

Task queue

In case of asynchronous mode incoming request can be queued by enabling the task queue, which is being processed in a parallel manner. The number of worker threads can be also set.

Environment variable	Meaning	Default value
TASKQUEUE__ISENABLED	Governs whether the Task Queue is enabled	true
TASKQUEUE__NUMBEROFQUEUEPROCESSINGTHREADS	Governs the number of threads working off the queue in a parallel manner	50

Environment variable

Meaning

Default value

TASKQUEUE__ISENABLED

Governs whether the Task Queue is enabled

true

TASKQUEUE__NUMBEROFQUEUEPROCESSINGTHREADS

Governs the number of threads working off the queue in a parallel manner

Master Data Settings

The Master Data Settings control the synchronization and management of master data from MDM (Master Data Management). These settings configure how the Information Router caches, syncs, and manages device data.

Environment Variable Description Source Mandatory Default Value

Environment Variable	Description	Source	Mandatory	Default Value
`MasterDataSettings__Enabled`	Flag to enable or disable master data synchronization.	`local.masterData.enabled`	Yes	"true"
`MasterDataSettings__ProductName`	The product name used for master data identification in MACMA.	`local.masterData.productName`	Yes	"connectivity"
`MasterDataSettings__MacmaRetryPeriodInSeconds`	The retry period in seconds for MACMA operations when connection fails.	`local.masterData.macmaRetryPeriodInSeconds`	Yes	"10"
`MasterDataSettings__ResyncPeriodinMinutes`	The resynchronization period in minutes. Controls how often the Information Router syncs with MACMA to fetch updated master data.	`local.masterData.resyncPeriodinMinutes`	Yes	"1"
`MasterDataSettings__FullResyncEnabled`	Flag to enable or disable full resynchronization of all master data.	`local.masterData.fullResyncEnabled`	No	"true"
`MasterDataSettings__FullResyncTimeSpan`	The time span (in format days.hours:minutes:seconds) between full resynchronization cycles. Example: "0.12:00:00" means every 12 hours.	`local.masterData.fullResyncTimeSpan`	No	"0.12:00:00"
`MasterDataSettings__OrpahnedSynchronizationLimitInMinutes`	The time limit in minutes for handling orphaned synchronization operations (syncs that were interrupted or abandoned).	`local.masterData.orpahnedSynchronizationLimitInMinutes`	Yes	"10"
`MasterDataSettings__CacheExpirationPeriodInMinutes`	The cache expiration period in minutes. Master data is cached locally and refreshed after this period.	`local.masterData.cacheExpirationPeriodInMinutes`	Yes	"1"
`MasterDataSettings__IntegrationEventMaxConcurrency`	Maximum number of concurrent integration events processed during master data synchronization. Controls the parallelism of sync operations.	ConfigMap: `connectivity-service-configmap`	No	"20"
`MasterDataSettings__TenantSyncStatePollingInterval`	The polling interval (in format hours:minutes:seconds.milliseconds) for checking tenant synchronization state.	ConfigMap: `connectivity-service-configmap`	No	"00:00:02.000"
`MasterDataSettings__LeaderLockRenewalInterval`	The renewal interval (in format hours:minutes:seconds) for the distributed leader lock. Controls how often the master data sync leader renews its lock to maintain leadership.	ConfigMap: `connectivity-service-configmap`	No	"00:00:30"
`MasterDataSettings__LeaderLockTimeToLive`	The time-to-live (in format hours:minutes:seconds) for the distributed leader lock. If the leader doesn’t renew the lock within this period, another instance can take over.	ConfigMap: `connectivity-service-configmap`	No	"00:02:00"

MasterDataSettings__Enabled

Flag to enable or disable master data synchronization.

local.masterData.enabled

Yes

"true"

MasterDataSettings__ProductName

The product name used for master data identification in MACMA.

local.masterData.productName

Yes

"connectivity"

MasterDataSettings__MacmaRetryPeriodInSeconds

The retry period in seconds for MACMA operations when connection fails.

local.masterData.macmaRetryPeriodInSeconds

Yes

"10"

MasterDataSettings__ResyncPeriodinMinutes

The resynchronization period in minutes. Controls how often the Information Router syncs with MACMA to fetch updated master data.

local.masterData.resyncPeriodinMinutes

Yes

"1"

MasterDataSettings__FullResyncEnabled

Flag to enable or disable full resynchronization of all master data.

local.masterData.fullResyncEnabled

"true"

MasterDataSettings__FullResyncTimeSpan

The time span (in format days.hours:minutes:seconds) between full resynchronization cycles. Example: "0.12:00:00" means every 12 hours.

local.masterData.fullResyncTimeSpan

"0.12:00:00"

MasterDataSettings__OrpahnedSynchronizationLimitInMinutes

The time limit in minutes for handling orphaned synchronization operations (syncs that were interrupted or abandoned).

local.masterData.orpahnedSynchronizationLimitInMinutes

Yes

"10"

MasterDataSettings__CacheExpirationPeriodInMinutes

The cache expiration period in minutes. Master data is cached locally and refreshed after this period.

local.masterData.cacheExpirationPeriodInMinutes

Yes

"1"

MasterDataSettings__IntegrationEventMaxConcurrency

Maximum number of concurrent integration events processed during master data synchronization. Controls the parallelism of sync operations.

ConfigMap: connectivity-service-configmap

"20"

MasterDataSettings__TenantSyncStatePollingInterval

The polling interval (in format hours:minutes:seconds.milliseconds) for checking tenant synchronization state.

ConfigMap: connectivity-service-configmap

"00:00:02.000"

MasterDataSettings__LeaderLockRenewalInterval

The renewal interval (in format hours:minutes:seconds) for the distributed leader lock. Controls how often the master data sync leader renews its lock to maintain leadership.

ConfigMap: connectivity-service-configmap

"00:00:30"

MasterDataSettings__LeaderLockTimeToLive

The time-to-live (in format hours:minutes:seconds) for the distributed leader lock. If the leader doesn’t renew the lock within this period, another instance can take over.

ConfigMap: connectivity-service-configmap

"00:02:00"

RabbitMQ Message Broker Settings for Master Data

The following settings configure the RabbitMQ connection used for master data synchronization events.

Environment Variable Description Source Mandatory Default Value

Environment Variable	Description	Source	Mandatory	Default Value
`MasterDataSettingsRabbitMqSettingsConnectorSettings__Hostname`	The hostname of the RabbitMQ broker used for master data integration events.	Global module configuration: `global.modules.connectivity.messaging.connectivity`	Yes	-
`MasterDataSettingsRabbitMqSettingsConnectorSettings__Port`	The port number of the RabbitMQ broker.	Global module configuration: `global.modules.connectivity.messaging.connectivity`	Yes	-
`MasterDataSettingsRabbitMqSettingsConnectorSettings__SslEnabled`	Flag to enable or disable SSL/TLS encrypted communication with the RabbitMQ broker.	Global module configuration: `global.modules.connectivity.messaging.connectivity`	Yes	-
`MasterDataSettingsRabbitMqSettingsConnectionAndSubscriptionRetryPeriodInSeconds`	The retry period in seconds for RabbitMQ connection and subscription operations.	`local.masterData.connectionAndSubscriptionRetryPeriodInSeconds`	Yes	"10"

MasterDataSettingsRabbitMqSettingsConnectorSettings__Hostname

The hostname of the RabbitMQ broker used for master data integration events.

Global module configuration: global.modules.connectivity.messaging.connectivity

Yes

MasterDataSettingsRabbitMqSettingsConnectorSettings__Port

The port number of the RabbitMQ broker.

Global module configuration: global.modules.connectivity.messaging.connectivity

Yes

MasterDataSettingsRabbitMqSettingsConnectorSettings__SslEnabled

Flag to enable or disable SSL/TLS encrypted communication with the RabbitMQ broker.

Global module configuration: global.modules.connectivity.messaging.connectivity

Yes

MasterDataSettingsRabbitMqSettingsConnectionAndSubscriptionRetryPeriodInSeconds

The retry period in seconds for RabbitMQ connection and subscription operations.

local.masterData.connectionAndSubscriptionRetryPeriodInSeconds

Yes

"10"

The RabbitMQ connection settings (hostname, port, SSL) are inherited from the global connectivity messaging configuration and are managed by the Helm deployment infrastructure.

Payload validation

The message payload can be validated against given validation schemas.+ Message valdiation can be enabled for message requests and / or responses.+

Message validation should be switched off in production.

Environment variable	Meaning	Default value
ValidateRequest	Governs whether the message request payload validation is enabled.	true
ValidateResponse	Governs whether the message response payload validation is enabled.	false
ContinueOnValidationErrors	Governs if message processing is continued if any validation error comes up.	false

Environment variable

Meaning

Default value

ValidateRequest

Governs whether the message request payload validation is enabled.

true

ValidateResponse

Governs whether the message response payload validation is enabled.

false

ContinueOnValidationErrors

Governs if message processing is continued if any validation error comes up.

false

Route

Each route has a unique identifier, which corresponds to the message type from the incoming request (when using HTTP, it is read from the source path). In the current version, those are MESSAGE, MEASUREMENT and PROCESS.

Route settings

The route settings contain the information about the execution mode.

Environment variable

Meaning

Possible values

Default value

EXECUTIONMODE

Whether the execution of a request is sync - synchronous (the machine waits for a response from the service endpoint)

or async - asynchronous (the response returned immediately after the successful or failed authentication of the machine with MACMA).

sync
async

async

PROCESSINGMODE

Sets the the sequence for processing a message before and after forwarding it to the dedicated endpoint.

- Forward without processing
- Process without forwarding
- Forward, then process
- Process before forwarding
- Process before and after forwarding

Forward
Process
ForwardProcess
ProcessForward
ProcessForwardProcess

Forward

PREPROCESSINGMETHOD

List of tasks to be done before processing the message via PROCESSINGMODE.

- Check if device is known in MasterDataManagement. If yes, set device status to unknown.
- Report if device is unknown
- Reset device status

CheckUnknownDevice
ReportUnknownDevice
ClearUnknownDevice

POSTPROCESSINGMETHOD

List of tasks to be done after processing the message via PROCESSINGMODE.

- Check if device is known in MasterDataManagement. If yes, set device status to unknown.
- Report if device is unknown
- Reset device status

CheckUnknownDevice
ReportUnknownDevice
ClearUnknownDevice

DESTINATIONS

List of destination endpoints or channels to forward message to. These are for

- REST endpoint identifier in RESTENDPOINTS
- AMQP channel name defined in AMQPSETTINGS_CHANNELS
- MQTT channel name defined in MQTTSETTINGS_CHANNELS

REST
AMQP
MQTT

Examples of environment variable definitions:

"ROUTES__MACHINE__EXECUTIONMODE": "Sync"

"ROUTES__MEASUREMENT__EXECUTIONMODE": "Sync"

"ROUTES__PROCESS__EXECUTIONMODE": "Sync"

"ROUTES__REXROTHTIGHTENING__EXECUTIONMODE": "Sync"

"ROUTES__MACHINE__PROCESSINGMODE": "ProcessForwardProcess"

"ROUTES__MACHINE__PREPROCESSINGMETHOD": [ "CheckUnknownDevice" ]

"ROUTES__MACHINE__POSTPROCESSINGMETHOD": [ "ReportUnknownDevice" ]

"ROUTES__MACHINE__DESTINATIONS": [ "CPM" ]

"ROUTES__MEASUREMENT__DESTINATIONS": [ "CPM", "CM_Measurement_Message" ]

Rest route settings

Environment variable

Meaning

Possible values

ENDPOINTID

Used for defining which endpoints a route forwards the messages to. If left empty no forwarding will take place for the given endservice.

CPM
ES
LBDM

Machine message route:

RESTROUTESETTINGS__MACHINE__DESTINATIONENDPOINTS__CPM__ENDPOINTID: "CPM"

RESTROUTESETTINGS__MACHINE__DESTINATIONENDPOINTS__ES__ENDPOINTID: "ES"

RESTROUTESETTINGS__MACHINE__DESTINATIONENDPOINTS__LBDM__ENDPOINTID: "LBDM"

Measurement message route:

RESTROUTESETTINGS__MEASUREMENT__DESTINATIONENDPOINTS__CPM__ENDPOINTID: "CPM"

Process message route:

RESTROUTESETTINGS__PROCESS__DESTINATIONENDPOINTS__CPM__ENDPOINTID: "CPM"

Rexroth Tightening message route:

RESTROUTESETTINGS__REXROTHTIGHTENING__DESTINATIONENDPOINTS__CPM__ENDPOINTID: "CPM"

Rest destination endpoints

Only REST routes (destination endpoints support the HTTP protocol) are currently supported. For each of them, the base URL, destination path and credential type should be defined.

The identifier of the destination endpoint is referenced in the name of the corresponding environment variables. It can be freely chosen. A suggestion is that it describes the service running on the destination endpoint (e.g. CPM - Condition and process monitoring, LBDM - Line Bottleneck Detection Module)

Property

Meaning

Possible values

Default value

Example

URL

The base URL of the destination service endpoint, including the port number

http://localhost:8080 for local execution, on the cloud it is the NEXEED_URL variable

Path

The path of the destination service

smc/ppmp-interpreter/api/v2/{tenantId}/MachinePpmp

for the the error detection service, where the tenantId is the tenant ID to which the machine is assigned to (is read from the request) and messageType is the the type of the message, also from the request.

cpm/ppm/v3/{MessageType}

for CPM

lm/sensorservice/api/v2/ppmpevent

for LBDM

CredentialType

The type of authentication used between the Information Router and the endpoint services.

OpenId

Method

Method to be used for REST call

Get
Post
Put
Delete

Get

Scope

Scope used for requesting OpenId token

RequestPayloadType

Payload type expected from endpoint when sending a request.

Ppmp
RexrothTightening
Plain
Object
Other
OppMl

ResponsePayloadType

Payload type returned in endpoint response.

Ppmp
RexrothTightening
Plain
Object
Other
OppMl

Example environment variable definitions are:

#Destination endpoints
RestEndpoints__ES__Url: "${NEXEED_URL}"
RestEndpoints__ES__Path: "${ES_CONTEXT_PATH}/ppmp-interpreter/api/v2/{TenantId}/MachinePpmp"
RestEndpoints__ES__CredentialType: "OpenId"

RestEndpoints__CPM__Url: "${NEXEED_URL}"
RestEndpoints__CPM__Path: "${CPM_CONTEXT_PATH}/ppm/v3/{MessageType}"
RestEndpoints__CPM__CredentialType: "OpenId"
RestEndpoints__CPM__Method: "Post"
RestEndpoints__CPM__Scope: "aud:u0v34kpqif7n1297itte0fmvl"
RestEndpoints__CPM__RequestPayloadType: "Ppmp"
RestEndpoints__CPM__ResponsePayloadType: "Plain"

RestEndpoints__LBDM__Url: "${NEXEED_URL}"
RestEndpoints__LBDM__Path: "${LBDM_CONTEXT_PATH}/sensorservice/api/v2/ppmpevent"
RestEndpoints__LBDM__CredentialType: "OpenId"

MACMA

In the following table, the settings for the MACMA client are explained.

Environment variable

Meaning

Possible values

Default value

Example

OIDC__SERVICEURL

The base URL of the destination service endpoint, including the port number

http://servername.com:8080

OIDC__REQUIREHTTPS

If HTTPS between MACMA and the Information Router is required

false
true

false

OIDC__CLIENTID

The username and secret for the MACMA client

OIDC__CLIENTSECRET

The password and secret for the MACMA client

OIDC__CONFIGURATION__INTROSPECTIONENDPOINT

The URL of the MACMA introspection endpoint

http://servername.com/iam/introspec

OIDC__CONFIGURATION__USERINFOENDPOINT

The URL of the user information endpoint for MACMA

http://servername.com/iam/userinfo

OIDC__CONFIGURATION__TOKENENDPOINT

The URL of the token endpoint for MACMA

http://servername.com/iam/auth/realms/7311ea8c-5d48-43fe-ecf9-980eedf24b6c/protocol/openid-connect/token

|OIDCNamedHttpClientsClients<client-name>UseResiliency |Enables resiliency for a HTTP client. Where <client-name> is the HTTP client to be configured. Currently clients are: the MacmaClient, MacmaAclClient and MasterDataClient. |true / false |false |

|OIDCNamedHttpClientsClients<client-name>ResiliencyConfig__EnableForUnsafeHttpMethods |Enables resiliency for POST, PATCH, PUT, DELETE, CONNECT methods (for more details see RFC 7231) for a HTTP client. Where <client-name> is the HTTP client to be configured. Currently clients are: the MacmaClient, MacmaAclClient and MasterDataClient. |true / false |false |

AMQP settings

Currently the following environment variables are defined in the deployment scripts which are normally suitable for the PPMP messages use case. The RexrothTightening format is not yet supported via AMQP. After setting the following variables the AMQP southbound flow should be ready to use as the above mentioned default queues are automatically generated and Information Router starts listening on them.

Environment variable

Meaning

Default value

AmqpSettings__Connectors__AmqpConnector__Enabled

Governs whether the AMQP 1.0 protocol is enabled or not.

false

AmqpSettings__Connectors__AmqpConnector__Hostname

The hostname of the AMQP 1.0 broker

empty

AmqpSettings__Connectors__AmqpConnector__Port

The port of the AMQP 1.0 broker

5672

AmqpSettings__Connectors__AmqpConnector__UserName

The user name for the AMQP 1.0 broker

empty

AmqpSettings__Connectors__AmqpConnector__Password

The password for the AMQP 1.0 broker

empty

Amqp10Settings__Tenants__Tenant1

The tenant id of the customer which is being used in the automatically generated PPMP queue names.

empty

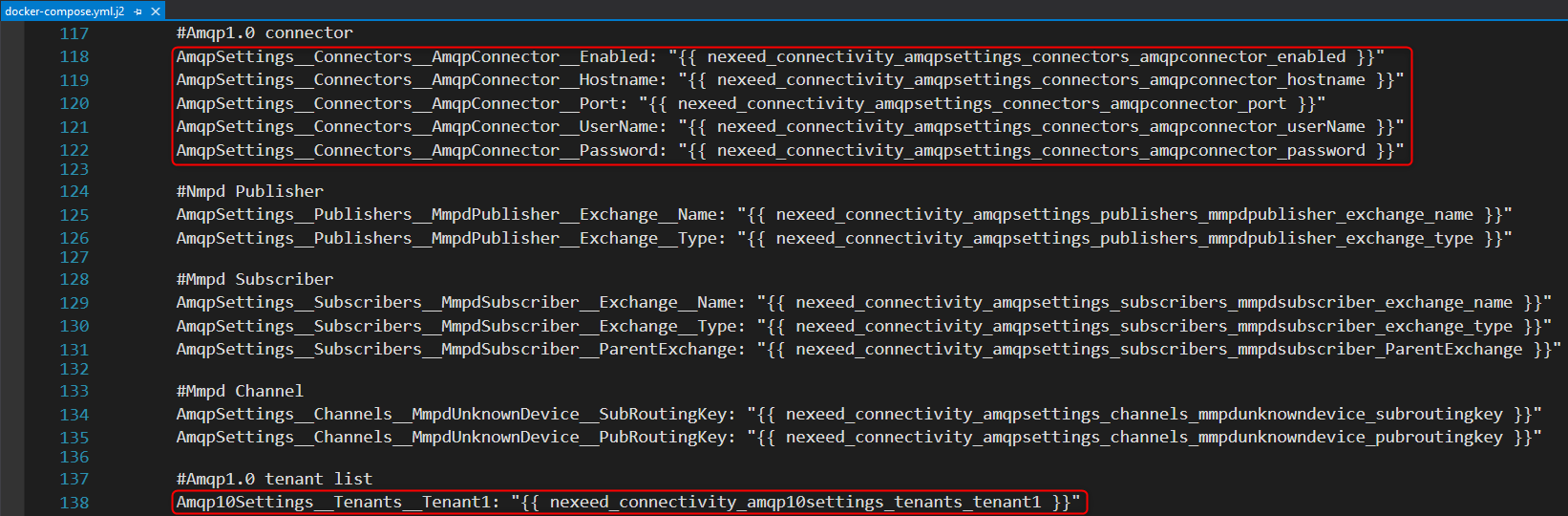

Figure 1. The above mentioned environment variables in the playbook

General information and all internal configuration settings

AMQP southbound communication

image::Amqp_SouthboundCommunication.png[height=250]

Settings

Route settings

"Routes": {
    "machine_AMQP": {
        "ExecutionMode": "Sync",
        "ProcessingMode": "ProcessForwardProcess",
        "SourceProtocol": "AMQP",
        "DestinationProtocol": "Rest",
        "DestinationProtocolRouteId": "machine",
        "PreProcessingMethod": "CheckUnknownDevice",
        "PostProcessingMethod": "ReportUnknownDevice"
    }
}

Above is a sample route - the source protocol needs to be set to AMQP.

AMQP settings

The AMQP settings contain the following sections:

Connectors configuration
Publishers configuration
Subscribers configuration
Channels configuration
Tenants configuration

Connectors configuration

Bellow is a sample connector configuration:

"Connectors": {
    "AMQPConnector": {
        "Name": "AMQPConnector",
        "Enabled": true,
        "Type: "Amqp1_0",
        "Hostname": "localhost",
        "Port": 5672,
        "ClientId": "ConnectivityHubConnector",
        "UserName": "default",
        "Password": "default",
        "SslEnabled": false,
        "SslVersion": "None",
        "ClientCertificate": null,
        "UseFailover": false,
        "FailoverServers": null,
    }
}

The connectors configuration contains a dictionary of configured connectors. Each connector has the following properties.

Property

Meaning

Name

Name of the connector which will be referenced in the rest of the configuration (of publishers and subscribers). A freely chosen string.

Hostname

The hostname of the AMQP broker.

Port

The port of the AMQP broker.

ClientId

The client identifier.

UserName

Username of the AMQP broker.

Password

Password of the AMQP broker.

SslEnabled

AMQP makes it easy to encrypt messages using TLS and authenticate clients using modern authentication protocols, such as OAuth. This property governs that.

SslVersion

The SSL version.

ClientCertificate

Client certificate for the AMQP broker. Currently no certificate is used.

UseFailover

Set to true, if your AMQP broker is setup to support server sided failover.

FailoverServers

List of nodes that belong to a failover cluster.

Publishers configuration

"Publishers": {
    "AMQPPublisher": {
        "Name": "AMQPPublisher",
        "Connector": "AMQPConnector",
        "Type": "Queue",
        "Durable": false,
        "Ttl": "00:00:00"
        "DeliveryConfirmationMode": "Async"
    }
}

Property

Meaning

Name

The name of the publisher. Freely chosen string, is referenced in the channel configuration.

Connector

The name of the corresponding connector.

Type

The target type of publisher (i.e. if the publisher should publish to a topic or directly into a queue)

Durable

Set to true if messages should be sent using the Message Delivery Mode "Persistent"

Ttl

The time to live in milliseconds attribute for the messages published to AMQP

DeliveryConfirmationMode

A flag that governs how to handle published messages. There are three possible value: "Individual", "Batch" and "Async" (default). If set to "Async", the publisher will not wait for the confirmation of the message delivery from the broker, but will continue processing. If set to "Individual", the publisher will wait for the confirmation of the individual message delivery from the broker. If set to "Individual", the publisher will wait for the confirmation of the batch message delivery from the broker.

There are two important publishers: OppObservationPublisher_Template for individual observation messages and RawOppPublisher for raw OPP batch messages. To configure the delivery confirmation mode, set the environment variables "AmqpSettings__Publishers__OppObservationPublisher_Template__DeliveryConfirmationMode and AmqpSettings__Publishers__RawOppPublisher__DeliveryConfirmationMode respectively.

Subscribers configuration

"Subscribers": {
    "AMQPSubscriber": {
        "Name": "AMQPSubscriber"
        "Connector": "AMQPConnector",
        "Type": "Queue",
        "AutoAcknowledge": true
    }
}

Property

Meaning

Name

The name of the subscriber. Freely chosen string, is referenced in the channel configuration.

Connector

The name of the corresponding connector.

Type

The target type of subscriber (i.e. if the subscriber should subscribe to a topic endpoint or directly to a queue)

AutoAcknowledge

Set to true if messages should be automatically acknowledged (i.e. removed from the queue) when they are received

Channels configuration

"Channels": {
...._
    "PpmpMachinev3": {
        "Subscriber": "AMQPSubscriber",
        "SubQueue": {
            "Name": "{TenantId}/ppmp/v3/message"
        },
        "publisher": "AMQPPublisher",
        "PubQueue": {
            "Name": "{TenantId}/ppmp/v3/message/response"
        },
        "Amqp_ConditionMonitoringMeasurement": {
            "Direction": "Egress",
            "ExpectResponse": false,
            "Publisher": "ConditionMonitoringMeasurementPublisher",
            "PubRoutingKey": "observation:machine-equipment:measurement-time-series",
            "ResponsePayloadType": "Plain",
            "RequestPayloadType": "OppMl"
        },
    }
...
},

Property

Meaning

Possible values

Default value

Direction

- Ingoing messages
- outgoing messages

Ingress
Egress

Ingress

ExpectResponse

true if response is expected

true
false

false

Subscriber

The name of the corresponding subscriber.

SubQueue Name

The name of the topic on which the IRsubscribes for the request.

Publisher

The name of the corresponding publisher.

PubQueue Name

The name of the topic on which the IR publishes the response.

PubRoutingKey

Routing key used for forwarding (only for OPP messages)

RequestPayloadType

Payload type returned in endpoint request

Ppmp
RexrothTightening
Plain
Object
Other
OppMl

Ppmp

ResponsePayloadType

Payload type returned in endpoint response

Ppmp
RexrothTightening
Plain
Object
Other
OppMl

Ppmp

Tenants configuration

"Tenants": {
    "Tenant1": "7311ea8c-5d48-43fe-acf9-980eedf24b6c"
}

Kafka settings

Currently the following environment variables are defined in the deployment scripts which are normally suitable for the PPMP messages use case. The RexrothTightening format is not yet supported via Kafka. After setting the following variables the Kafka southbound flow should be ready to use as the above mentioned default Topics are automatically generated and Information Router starts listening on them.

Environment variable

Meaning

Default value

KafkaSettings__ConnectorSettings__KafkaConnector__Enabled

Governs whether the Kafka protocol is enabled or not.

false

KafkaSettings__ConnectorSettings__KafkaConnector__Hostname

The hostname of the Kafka broker

localhost

KafkaSettings__ConnectorSettings__KafkaConnector__Port

The port of the Kafka broker

9092

KafkaSettings__ConnectorSettings__KafkaConnector__UserName

The user name for the Kafka broker

empty

KafkaSettings__ConnectorSettings__KafkaConnector__Password

The password for the Kafka broker

empty

KafkaSettings__Tenants__Tenant1

The tenant id of the customer which is being used in the automatically generated PPMP Topic names.

empty

The above mentioned environment variables in the playbook

image::Kafka_EnvirnonmentVarsInPlaybook.png[height=238]

General information and all internal configuration settings

Figure 2. Kafka southbound communication

Forwarding

For the moment, the solution supports Kafka only as a southbound communication protocol. The general use-case for now is that messages from stations can be received by Information Router using Kafka and will be forwarded using the RestProtocol to the target services (see Route Settings configuration example below)

Station

-----(Kafka Message)----- >

Broker

-----(Kafka Message)----- >

InformationRouter

-----(HTTP Request)----- >

Target service

Early implementations to have Kafka as a northbound protocol were already been made but not tested.

Settings

Figure 3. Overview

Route settings

RouteSettings Snippet

"Routes": {
    "machine_kafka": {
        "ExecutionMode": "Sync",
        "ProcessingMode": "ProcessForwardProcess",
        "SourceProtocol": "Kafka",
        "DestinationProtocol": "Rest",
        "DestinationProtocolRouteId": "machine",
        "PreProcessingMethod": "CheckUnknownDevice",
        "PostProcessingMethod": "ReportUnknownDevice"`
    }
}

Above is a sample route - the source protocol needs to be set to Kafka.

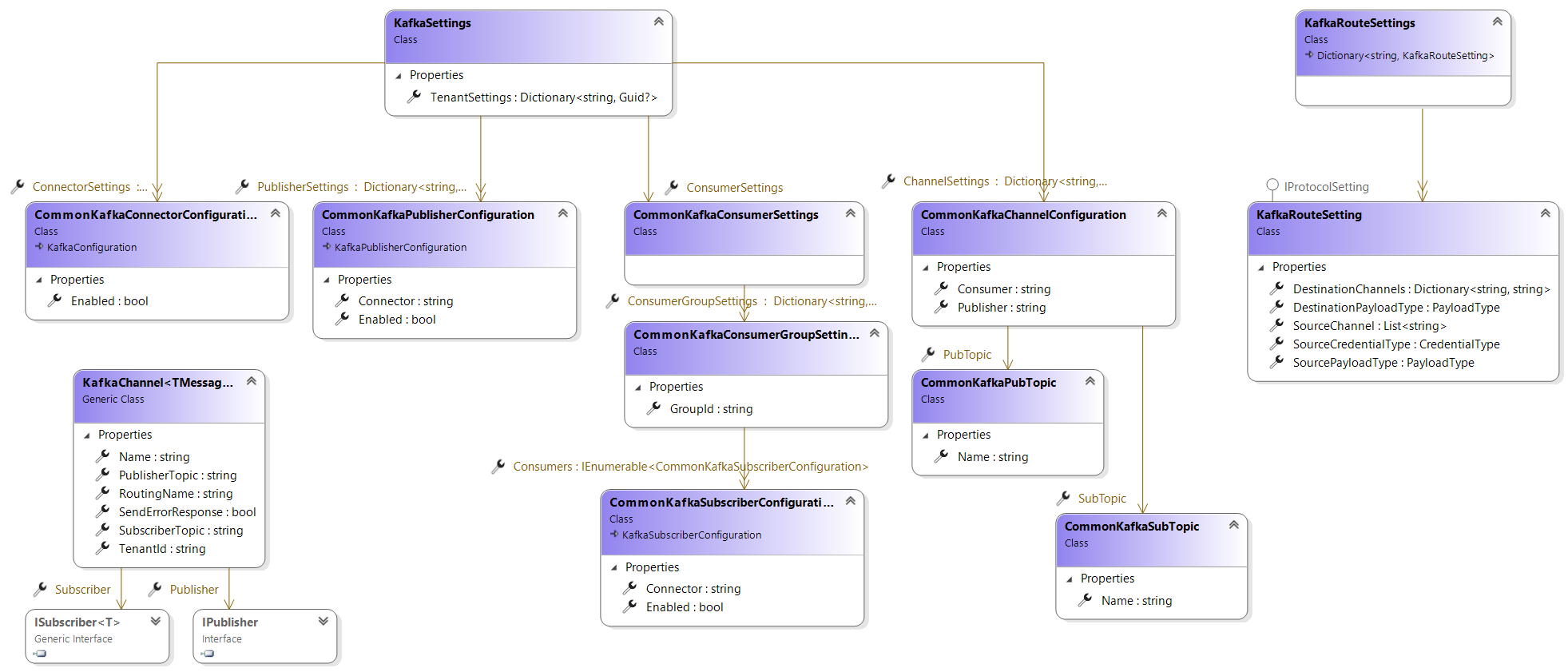

Kafka settings

Kafka Settings Collapsed

"KafkaSettings": {
    "ConnectorSettings": ...,
    "ConsumerSettings": ...,
    "PublisherSettings": ...,
    "ChannelSettings": ...,
    "TenantSettings": ...,
}

The Kafka settings contain the following sections:

Connectors configuration
Consumer configuration
Publishers configuration
Channels configuration
Tenants configuration

Connectors configuration

Bellow is a sample connector configuration:

Snippet

"ConnectorSettings": {
    "KafkaConnector": {
        "Name": "KafkaConnector",
        "Hostname": "localhost",
        "Port": 9092,
        "ClientId": "HubConnector-1",
        "UserName": "guest",
        "Password": "guest",
        "SslEnabled": false,
        "SslVersion": "None",
        "Debug": true,
        "SslCaCertificateLocation": null,
        "ClientCertificateLocation": null,
        "ClientCertificateKeyLocation": null,
        "ClientCertificateKeyPassword": null,
        "Enabled": true
    }
}

The connectors configuration contains a dictionary of configured connectors. Each connector has the following properties.

Property

Meaning

Name

Name of the connector which will be referenced in the rest of the configuration (of publishers and consumers). A freely chosen string.

Hostname

The hostname of the Kafka broker.

Port

The port of the Kafka broker.

ClientId

The client identifier.

UserName

Username of the Kafka broker.

Password

Password of the Kafka broker.

SslEnabled

Set to true if the Kafka broker uses SSL / TLS encrypted communication.

SslVersion

The SSL version.

Debug

Set to true to activate Debug logs from the underlying Kafka library.

SslCaCertificateLocation

The full path of the SSL CA certificate. This will be only used if the SslEnabled config is set to true.

ClientCertificateLocation

ClientCertificateKeyLocation

ClientCertificateKeyPassword

Enabled

Set to true if the connector will be used.

Publishers configuration

Snippet

"PublisherSettings": {
    "HubPublisher": {
        "Name": "HubPublisher",
        "Connector": "KafkaConnector",
        "MessageTimeoutMs": 10000,
        "Retries": 0,
        "EnableIdempotence": false,
        "Enabled": true`
    }
}

Property

Meaning

Default value

Name

Name used to identify a KafkaPublisher instance. Freely chosen string, is referenced in the channel configuration.

Connector

The name of the corresponding connector.

MessageTimeoutMs

The timeout for messages to be delivered and acknowledged by Kafka (0 = infinite).

30000

Retries

Setting a value greater than zero will cause the client to resend any record whose send fails with a potentially transient error.

EnableIdempotence

When set to true, the producer will ensure that messages are successfully produced exactly once and in the original produce order. See Kafka Docs.

Enabled

Set to true if the publisher will be used.

Consumers configuration

Snippet

"ConsumerSettings": {
    "connectivity-hub-consumers": {
        "GroupId": "connectivity-hub-consumers",
        "AutoOffsetReset": "Earliest",
        "AutoCommit": true,
        "Consumers": [
            {
                "Name": "HubConsumer1",
                "Connector": "KafkaConnector",
                "Enabled": true
            },
        ...
        ]
    }
},

Property	Meaning	Possible values
GroupId	The name of the Consumer Group. This property should be consistent through all the Information Router instance to guaranty the scalability of the Hub. See Kafka Docs
AutoOffsetReset	What to do when there is no initial offset in Kafka or if the current offset does not exist any more on the server	Latest Earliest None
AutoCommit	If true the consumer’s offset will be periodically committed in the background. See Kafka Docs

Property

Meaning

Possible values

GroupId

The name of the Consumer Group. This property should be consistent through all the Information Router instance to guaranty the scalability of the Hub. See Kafka Docs

AutoOffsetReset

What to do when there is no initial offset in Kafka or if the current offset does not exist any more on the server

Latest
Earliest
None

AutoCommit

If true the consumer’s offset will be periodically committed in the background. See Kafka Docs

The parameters mentioned above will be passed to all the consumers.

Property

Meaning

Name

The name of the Consumer. Freely chosen string, is referenced in the channel configuration.

Connector

The name of the corresponding connector.

Enabled

Set to true if the consumer will be used.

Channels configuration

Snippet

"Channels": {
    ...,
    "PpmpMachinev3": {
        "Consumer":
            "KafkaConsumer1",
            "SubTopic": {
                "Name": "^.*\\.ppmp\\.v3\\.message$"
            },
        "publisher":
            "KafkaPublisher",
            "PubTopic": {
                "Name": "{TenantId}.ppmp.v3.message.response"
            }
    },
    ...
},

Property

Meaning

Consumer

The name of the corresponding Consumer.

SubTopic Name

The regex pattern of the topic on which the Information Router subscribes for the request.

Publisher

The name of the corresponding publisher.

PubTopic Name

The name of the topic on which the Information Router publishes the response.

Topic Regex Pattern

In the current implementation, the solution uses one consumer per channel, and each consumer will use regex wildcard patterns to subscribe to different topics, which enables a consumer to read messages from different topics belonging to different tenants.

For example, a consumer subscribing with a topic pattern like "^.\\.ppmp\\.v3\\.message$" would be able to consume incoming messages from the following tenants: 7311ea8c-5d48-43fe-acf9-980eedf24b6c and baf04077-a3c0-454b-ac6f-9fec00b8e170

7311ea8c-5d48-43fe-acf9-980eedf24b6c .ppmp.v3.message
baf04077-a3c0-454b-ac6f-9fec00b8e170 .ppmp.v3.message

The topics following that pattern are managed by a C library underneath (librdkafka) which executes in background threads.

Tenants configuration

"Tenants": {`
    "Tenant1" : "7311ea8c-5d48-43fe-acf9-980eedf24b6c"
}

Scalability

And for scalability purposes, all of the Information Router Consumers will register themselves under one consumer group (i.e. using the same Group-Id), so that the messages get consumed only once from a topic. Every Information Router instance will use the same consumer group.

That would be following/fulfilling a Message Queue Pattern so to speak. On the other hand, other application interested in those messages can also consume from the same topic but from another consumer group (i.e. using a different Group-Id), i.e. following a PubSub Model.

To achieve parallelism, more partitions can be added to a topic, which should not go beyond the number of consumers of a topic.

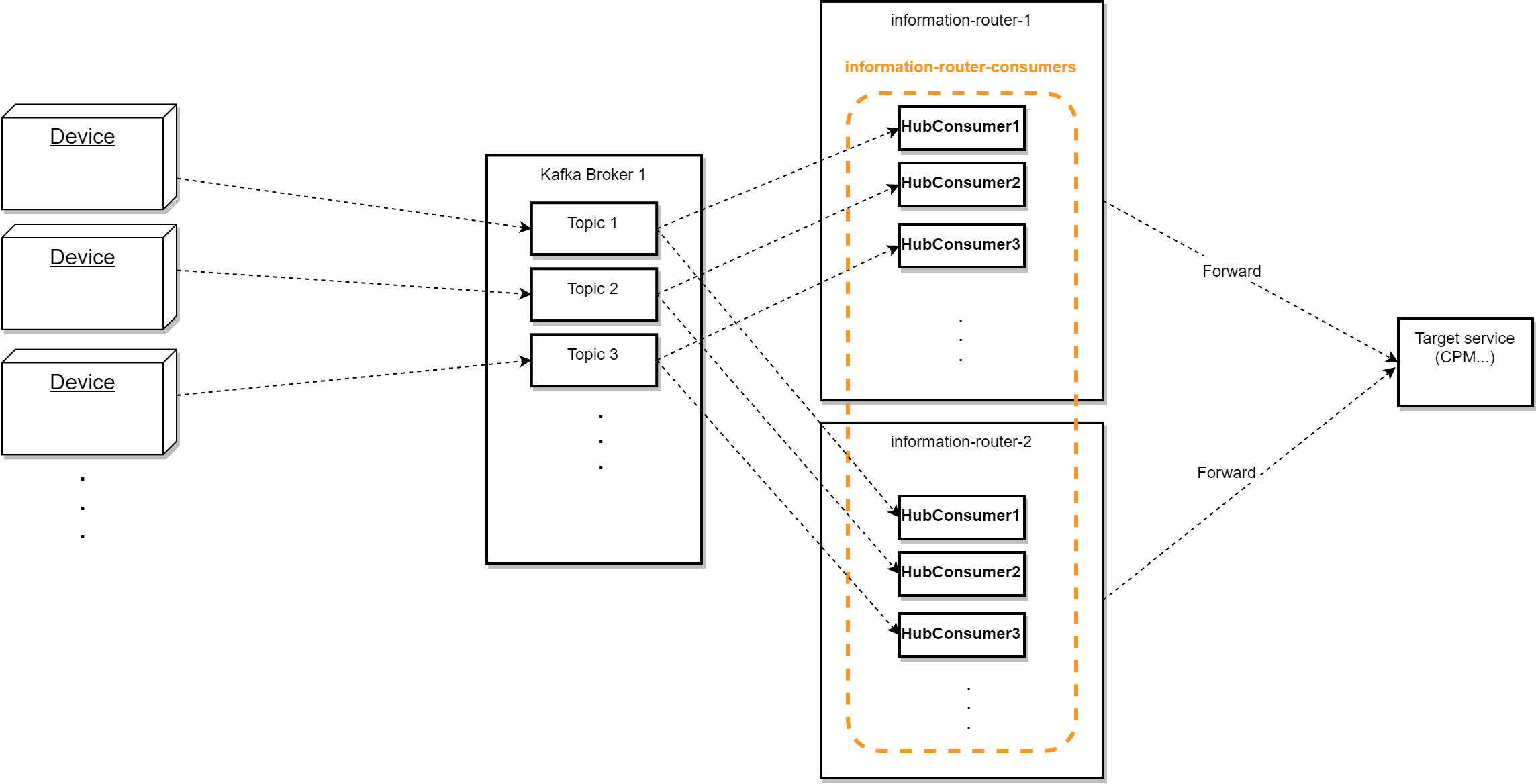

Figure 4. Scalable deployment

Reliability

Kafka uses a pull method, i.e. producers push messages to the broker in batches to minimize network overhead by reducing the number of requests, brokers then store these messages for consumers to pull at their own rate. This means that consumers don’t have to implement any kind of rate-limiting or similar. This is done on the broker side (please refer to the design quotas section in the Apache Kafka documentation for further information about this).

Kafka messaging use-case

For the moment, we are using the EnableAutoCommit config property (called AutoCommit in the appsettings.json) set to true to automatically commit the messages that are processed. In this case, it is done by the underlying Kafka library on a background thread which runs periodically every AutoCommitIntervalMs= 5000ms (default). This setup is the recommended one for most cases, but it doesn’t cover the shutdown exception when the application shuts down before the processed messages get committed - introducing duplicate processing. Alternatively, an offset corresponding to the message can also be successfully committed in the background thread while the process has not been successfully completed.

In other words, this setup can potentially belong to both the At-least-once and At-most-once use-cases. Refer to further_improvements_suggestions for information how to change/improve this.

Suggestions

One Suggestion would be to expose the AutoCommitIntervalMs config property in the foundation component so it be configured on the application (IR) level
Another Suggestion would be to expose EnableAutoOffsetStore and contribute to the foundation component library to add logic to check if this property is set to false and then store the offsets manually directly after the consumption of the messages, hence, covering the At-Least-once Use-case (see Kafka .NET Client docs for more information).

MQTT settings

Route settings

"Routes": {
    "machine_mqtt": {
        "ExecutionMode": "Sync",
        "ProcessingMode": "ProcessForwardProcess",
        "SourceProtocol": "Mqtt",
        "DestinationProtocol": "Rest",
        "DestinationProtocolRouteId": "machine",
        "PreProcessingMethod": "CheckUnknownDevice",
        "PostProcessingMethod": "ReportUnknownDevice"
    }
}

Above is a sample route - the source protocol needs to be set to MQTT.

MQTT settings

The MQTT settings contain the following sections:

Connectors configuration
Publishers configuration
Subscribers configuration
Channels configuration
Tenants configuration

Connectors configuration

Bellow is a sample connector configuration:

"Connectors": {
    "MqttConnector": {
        "Name": "MqttConnector",
        "Hostname": "localhost",
        "Port": 1883,
        "ClientId": "ConnectivityHubConnector",
        "UserName": "default",
        "Password": "default",
        "SslEnabled": false,
        "SslVersion": "None",
        "ClientCertificate": null
    }
}

The connectors configuration contains a dictionary of configured connectors. Each connector has the following properties.

Property

Meaning

Name

Name of the connector which will be referenced in the rest of the configuration (of publishers and subscribers). A freely chosen string.

Hostname

The hostname of the MQTT broker.

Port

The port of the MQTT broker.

ClientId

The client identifier.

UserName

Username of the MQTT broker.

Password

Password of the MQTT broker.

SslEnabled

MQTT makes it easy to encrypt messages using TLS and authenticate clients using modern authentication protocols, such as OAuth. This property governs that.

SslVersion

The SSL version.

ClientCertificate

Client certificate for the MQTT broker. Currently no certificate is used.

Publishers configuration

"Publishers": {
    "MqttPublisher": {
        "Connector": "MqttConnector",
        "Name": "ConnectivityHubPub",
        "QualityOfServiceLevel": "AtLeastOnce",
        "RetainMessages": false
    }
}

Property	Meaning	Possible Values
Connector	The name of the corresponding connector.
Name	The name of the publisher. Freely chosen string, is referenced in the channel configuration.
RetainMessages	Whether the message should be retained in the broker.
QualityOfServiceLevel	Reliability of message delivery is important for many IoT use cases. This is why MQTT has 3 defined quality of service levels	0 - at most once 1 - at least once 2 - exactly once

Property

Meaning

Possible Values

Connector

The name of the corresponding connector.

Name

The name of the publisher. Freely chosen string, is referenced in the channel configuration.

RetainMessages

Whether the message should be retained in the broker.

QualityOfServiceLevel

Reliability of message delivery is important for many IoT use cases. This is why MQTT has 3 defined quality of service levels

0 - at most once
1 - at least once
2 - exactly once

Subscribers configuration

"Subscribers": {
    "MqttSubscriber": {
        "Connector": "MqttConnector",
        "Name": "ConnectivityHubSub"
    }
}

Property

Meaning

Connector

The name of the corresponding connector.

Name

The name of the subscriber. Freely chosen string, is referenced in the channel configuration.

Channels configuration

"Channels": {
    ....
    "PpmpMachinev3": {
        "Subscriber": "MqttSubscriber",
        "SubQueue": {
            "Name": "{TenantId}/ppmp/v3/message"
        },
        "publisher": "MqttPublisher",
        "PubQueue": {
            "Name": "{TenantId}/ppmp/v3/message/response"
        }
    }
    ...
},

Property

Meaning

Subscriber

The name of the corresponding subscriber.

SubQueue Name

The name of the topic on which the Information Router subscribes for the request.

Publisher

The name of the corresponding publisher.

PubQueue Name

The name of the topic on which the Information Router publishes the response.

Tenants configuration

"Tenants": {
    "Tenant1": "7311ea8c-5d48-43fe-acf9-980eedf24b6c"
}

Contains a list of tenants whose devices send to the Information Router via MQTT.

Roles

The following roles are needed so that Information Router can send data to CPM and Error Statistics as well as communicate with MDM.

Internally used name in Playbook

Role name

Module

Description

module: mdm

nameL: Admin

MDM Administrator

Master Data Management

Has full access

module: ppm

nameL: BCI_PPM_USER

PPM Core User

Nexeed Condition and Process Monitoring

PPM Core User

module: easysmc

nameL: Admin

Admin

Nexeed Error Statistics

Has full access

An excerpt from the deployment playbook is given here ias-deployment-playbooks.

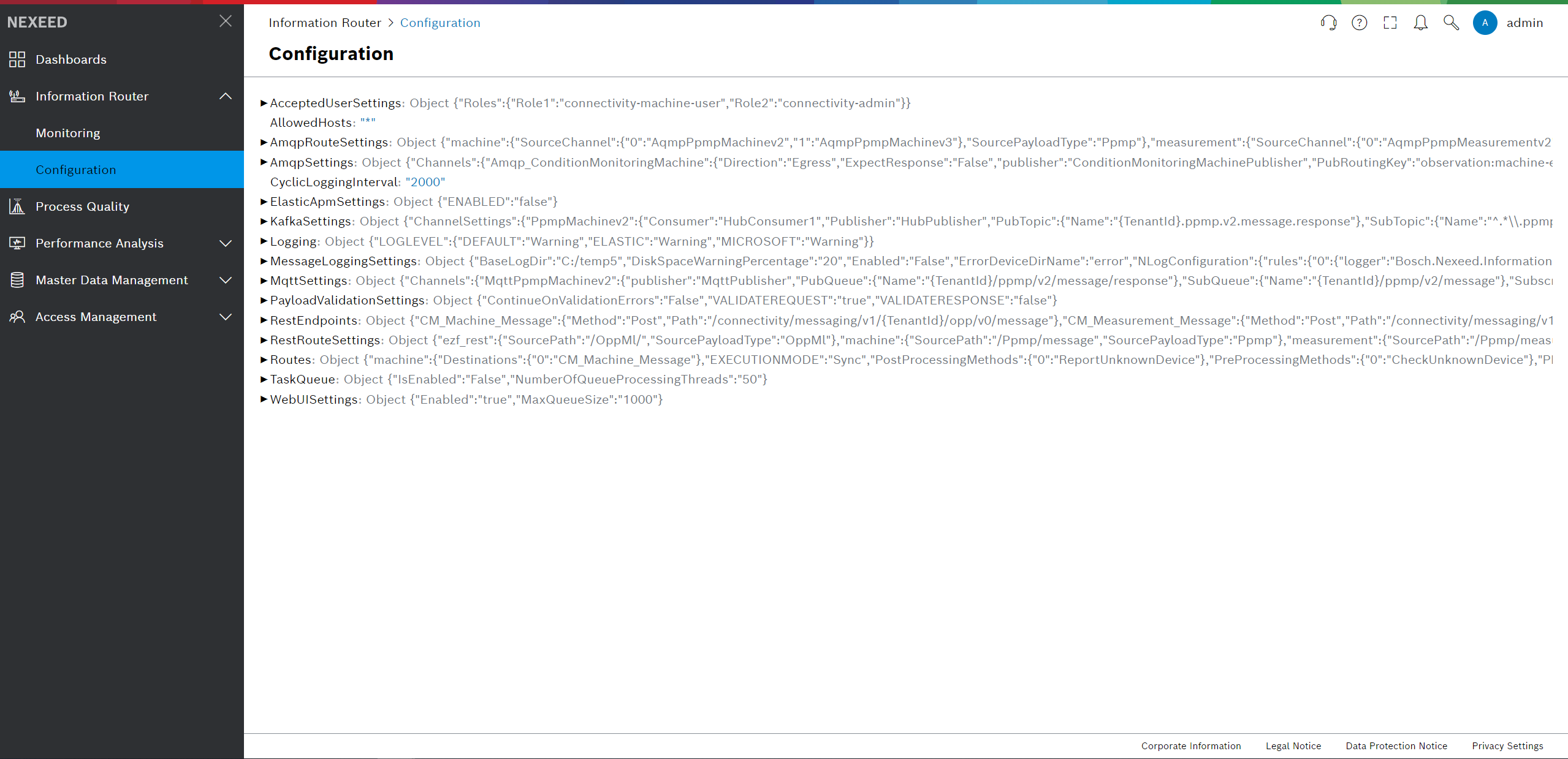

Configuration UI

The Configuration UI in the Web Portal can be found in > Information Router > Configuration. It provides an overview of the deployed configuration of Information Router.

The Configuration parts can be further expanded by clicking on the rows which contain triangular black errors at the beginning or the row itself. After fully expanding an element you can see the value which it is configured as.
