Known limitations

Manual deletion of queues

When the Deviation Processor module is removed from the system, the queues used by it will not be deleted automatically.

Deletion of entities in Master Data Management

The Deviation Processor synchronizes facilities (equipment), devices, device types, and error code definitions from Master Data Management (MDM) to the Deviation Processor database.
When an entity is deleted in MDM, it will not be automatically deleted from the Deviation Processor database. This is because deviations linked to deleted facilities should not be lost or orphaned.
As a result, the Deviation Processor will continue to display the deleted entity in the UI, which can lead to confusion or inconsistencies in the data presented to users.

Until a software-based solution is implemented, MDM entities in the Deviation Processor database must be manually deleted and then re-synchronized. This can be done as follows:

Business Impact Considerations

Before proceeding, ensure that the customer understands and approves the following:

  • Facilities deleted from MDM will also be removed from the Deviation Processor (used in filters and dropdowns)

  • Deviations linked to the deleted facilities will no longer be accessible in the UI

  • The synchronization process may take several hours depending on the amount of facilities and error definitions

  1. Obtain customer approval for the deletion of facilities in Deviation Processor (synchronization with MDM) as described in the warning above.

    Performance Impact During Synchronization

    During the sync process, users may temporarily not see all error codes, processes, devices, device types or facilities in UI dropdowns. However, the Deviation Processor will continue to function normally in the background, including creating deviations from module notifications and triggering actions. The UI remains available throughout the synchronization process.

  2. Delete the MDM synchronization job for the tenant in the database to stop the background synchronization for cleaning:

    SQL Server:

    DELETE FROM QRTZ_JOB_DETAILS WHERE JOB_GROUP = '<tenant_id>' AND JOB_NAME = 'MdmSyncJob';

    Oracle:

    DELETE FROM "QRTZ_JOB_DETAILS" WHERE "JOB_GROUP" = '<tenant_id>' AND "JOB_NAME" = 'MdmSyncJob';
  3. Remove all MDM data for the specific tenant from the following tables:

    • Device

    • DeviceFacility

    • DeviceType

    • Error

    • ErrorFacility

    • ErrorTranslation

    • Facility

    • FacilityTranslation

    • Process

    • ProcessFacility

    • ProcessTranslation

      Execute the following SQL commands, replacing <tenant_id> with the actual tenant ID:

      SQL Server:

      DELETE FROM DeviceType WHERE TenantId = '<tenant_id>';
      DELETE FROM DeviceFacility WHERE TenantId = '<tenant_id>';
      DELETE FROM Device WHERE TenantId = '<tenant_id>';
      DELETE FROM ErrorTranslation WHERE TenantId = '<tenant_id>';
      DELETE FROM ErrorFacility WHERE TenantId = '<tenant_id>';
      DELETE FROM Error WHERE TenantId = '<tenant_id>';
      DELETE FROM ProcessTranslation WHERE TenantId = '<tenant_id>';
      DELETE FROM ProcessFacility WHERE TenantId = '<tenant_id>';
      DELETE FROM Process WHERE TenantId = '<tenant_id>';
      DELETE FROM FacilityTranslation WHERE TenantId = '<tenant_id>';
      DELETE FROM Facility WHERE TenantId = '<tenant_id>';

      Oracle:

      DELETE FROM "DeviceType" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "DeviceFacility" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "Device" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "ErrorTranslation" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "ErrorFacility" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "Error" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "ProcessTranslation" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "ProcessFacility" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "Process" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "FacilityTranslation" WHERE "TenantId" = '<tenant_id>';
      DELETE FROM "Facility" WHERE "TenantId" = '<tenant_id>';

      Alternative for single-tenant databases:

      If the database contains only one tenant, use the following commands to delete all MDM data:

      SQL Server:

      TRUNCATE TABLE DeviceType;
      TRUNCATE TABLE DeviceFacility;
      TRUNCATE TABLE Device;
      TRUNCATE TABLE ErrorTranslation;
      TRUNCATE TABLE ErrorFacility;
      TRUNCATE TABLE Error;
      TRUNCATE TABLE ProcessTranslation;
      TRUNCATE TABLE ProcessFacility;
      TRUNCATE TABLE Process;
      TRUNCATE TABLE FacilityTranslation;
      TRUNCATE TABLE Facility;

      Oracle

      TRUNCATE TABLE "DeviceType";
      TRUNCATE TABLE "DeviceFacility";
      TRUNCATE TABLE "Device";
      TRUNCATE TABLE "ErrorTranslation";
      TRUNCATE TABLE "ErrorFacility";
      TRUNCATE TABLE "Error";
      TRUNCATE TABLE "ProcessTranslation";
      TRUNCATE TABLE "ProcessFacility";
      TRUNCATE TABLE "Process";
      TRUNCATE TABLE "FacilityTranslation";
      TRUNCATE TABLE "Facility";

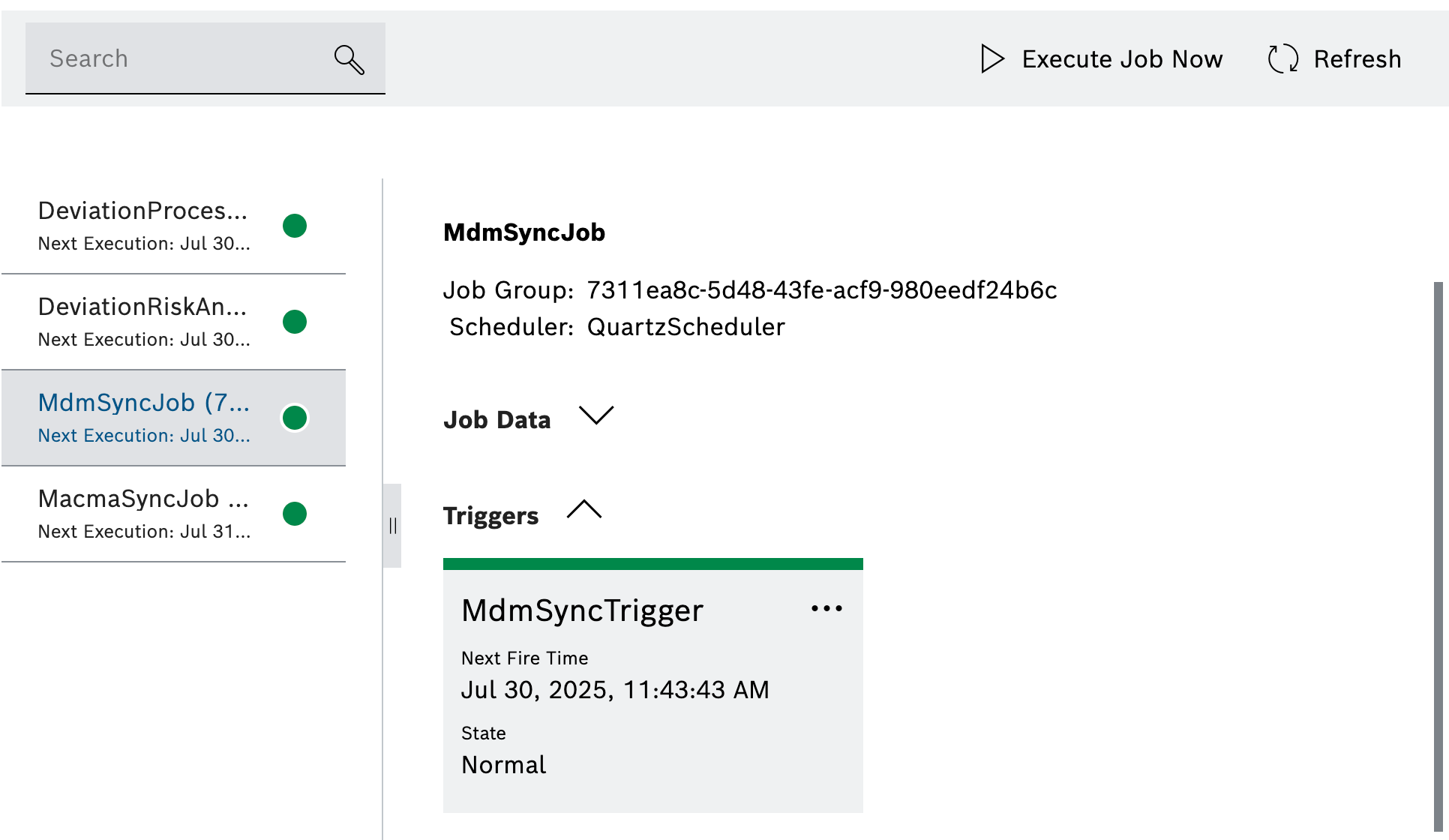

  4. Trigger the MdmSyncJob via the Quartz State Overview interface. Access this through the base tenant: <IAS domain>/deviationprocessor?appPath=%2Fbackground-jobs

    trigger job ui
  5. Verify that the MDM synchronization jobs for the tenant have been successfully recreated.

  6. Validate that the MDM synchronization ran successfully via the Quartz State Overview interface. If successful, the state of the MdmSyncTrigger should return to normal.
