System architecture and interfaces

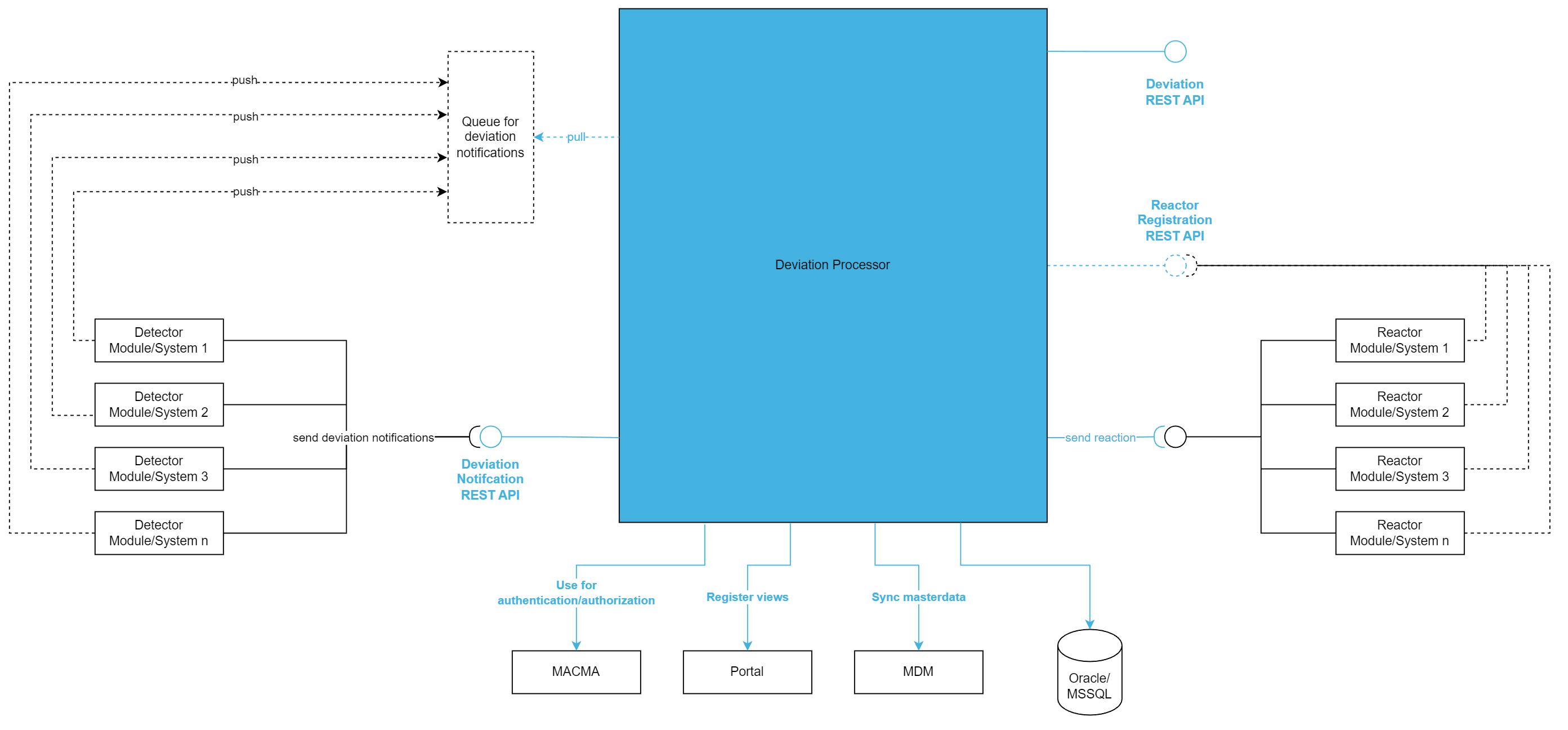

System overview

This overview shows how the Deviation Processor is integrated into the Nexeed IAS environment.

The blue parts represent the parts/components the Deviation Processor provides. The black parts are other components and modules from Nexeed IAS.

Network connections overview

Source Destination Protocol

Deviation Processor

MACMA

https

Deviation Processor

Portal

https

Deviation Processor

MDM

https

Deviation Processor

Ticket Management

https

Deviation Processor

Notification Service

https

Deviation Processor

RabbitMQ

AMQP 0.9.1 with TLS

Deviation Processor

RDBMS

TCP/IP with SSL
