Custom KPIs

The Custom KPIs feature allows displaying of up to six custom key performance indicators (KPIs) in the Part Count View of Andon Live. This is useful for tracking specific metrics that are individually relevant to the production process.

Prerequisites

  • Andon Live UI Admin role for content configuration of Part Count View

  • API access to provide the custom KPI as well as their data

Procedure

  1. Access the public API of Andon Live with a valid token.

  2. Provide the custom KPIs.

    A maximum of six KPIs can be provided. Each KPI provides an individual value for a line. It’s recommended to update all KPIs for all lines with one API call to reduce the load on the backend.

  3. Open the Shopfloor Management > Andon Live > Part Count View menu entry.

  4. Click on settings_icon in the top right corner.

    The Part Count View opens in configuration mode.

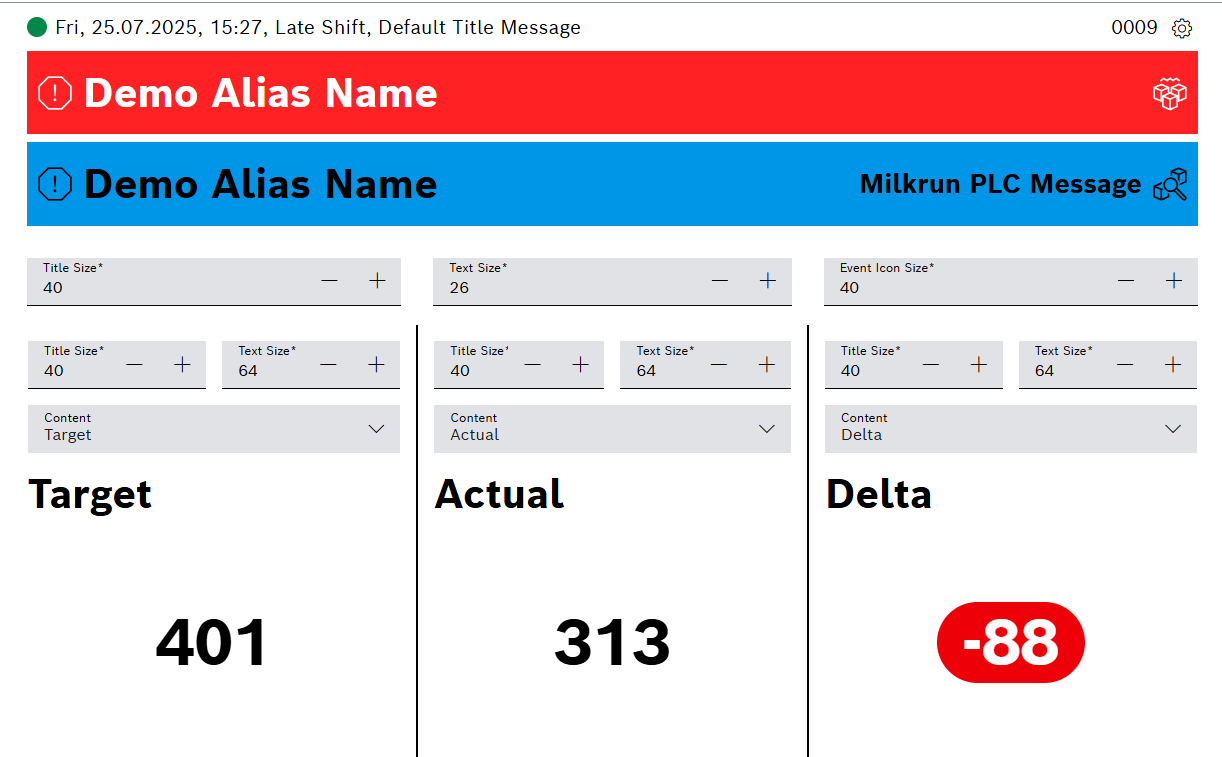

    Part Count View Configuration
  5. Configure the Content (shown KPIs) of the data squares.

    The settings are applied to all users of the currently selected terminal.

  6. Click on settings_icon.

    The Part Count View Configuration is saved, and the custom KPIs are shown in Part Count View.
