System architecture and interfaces

General Deployment View

  • interfaces inbound / outbound incl. protocols and ports (incl. infos if it can be configured or not)

  • connections between containers

  • connections between containers to external systems (other modules, IT Services, OT Services)

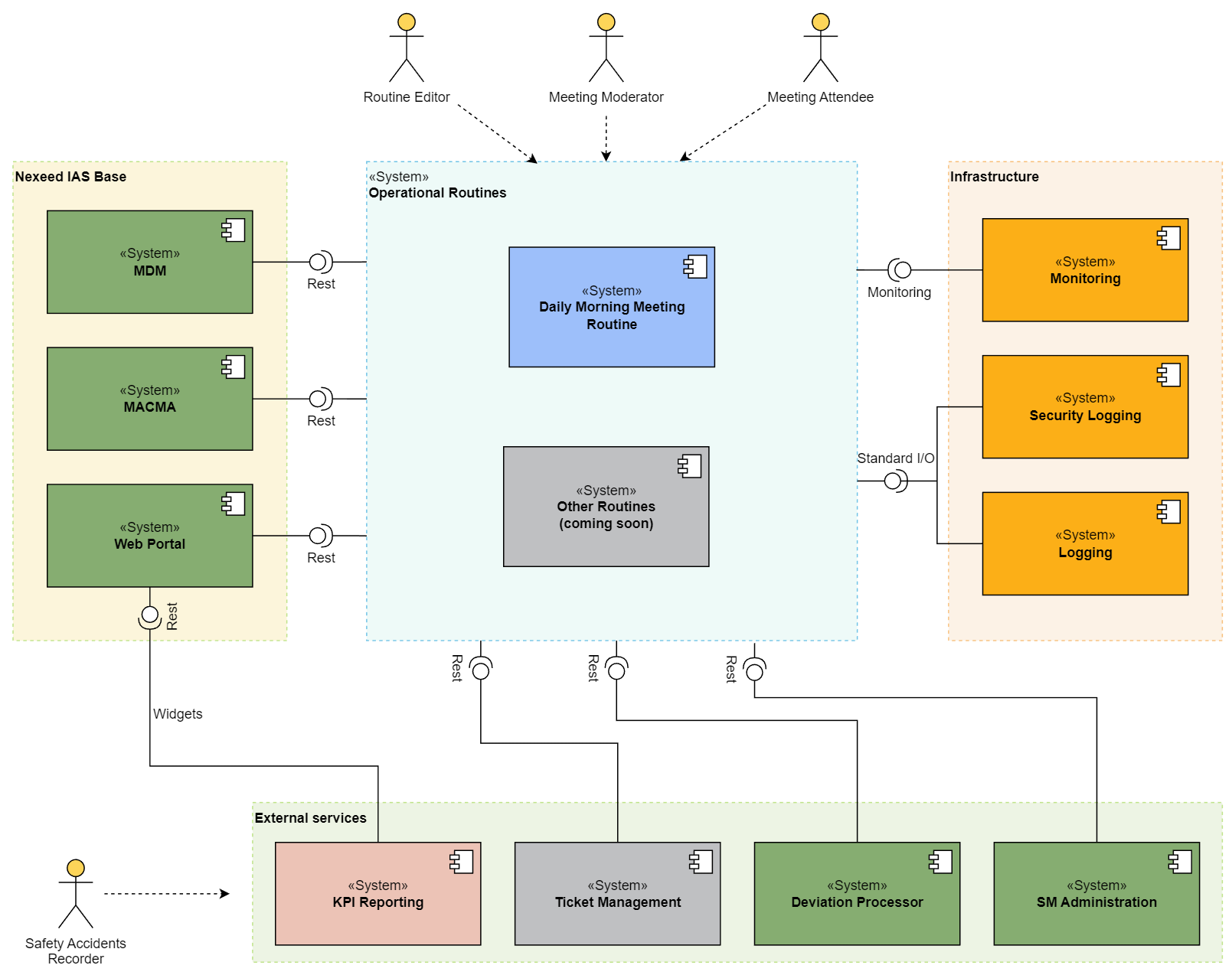

System overview

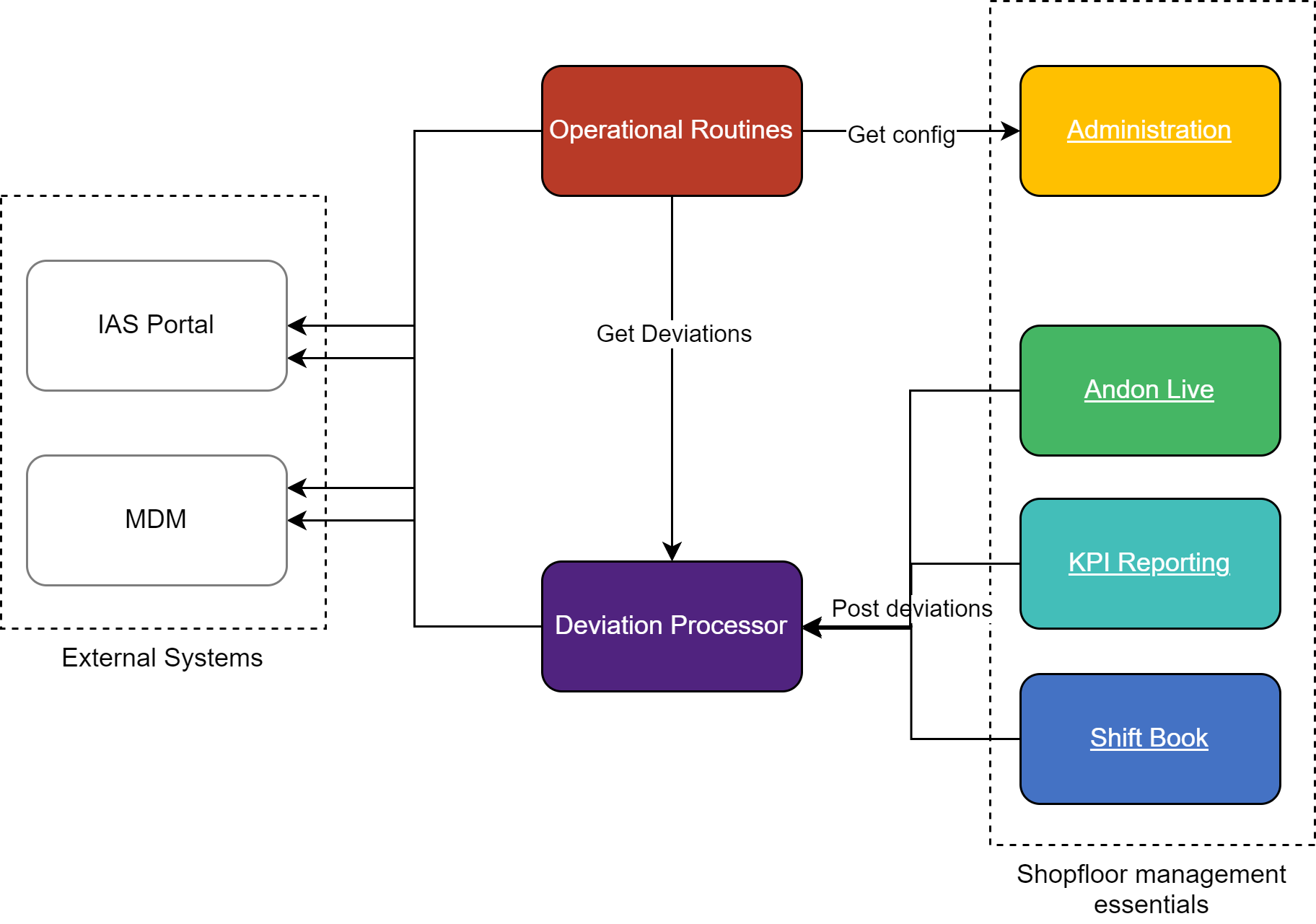

The communication with other Shopfloor Management modules is shown in the next image:

02 Communication with other SM modules

Network connections overview

Source Destination Protocol

Operational Routines

MACMA

https

Operational Routines

Portal

https

Operational Routines

MDM

https

Operational Routines

Deviation Processor

https

Operational Routines

Shopfloor Management KPI Reporting

https

Operational Routines

Shopfloor Management Administration

https

Operational Routines

RabbitMQ

AMQP 0.9.1 with TLS

Operational Routines

RDBMS

TCP/IP with SSL
