Unit load types
Overview: Load unit types
The load unit types are created and edited under Material flow data > Load unit types. Load units are used to transport the materials.
| Element/icon | Description |
|---|---|
|
Add load unit type. |
|

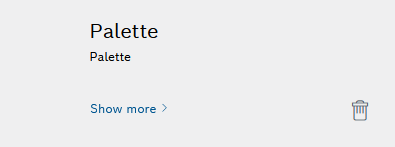

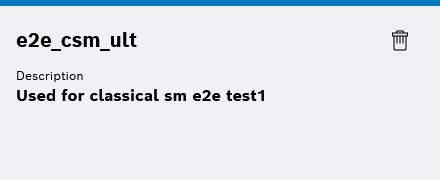

Tile of the load unit type To view details or edit the load unit type, click the tile of the unit type. |
More details > |
View details or edit the load unit type. |
|
Delete a unit load type. |
Creating or Editing Load Unit Type
Prerequisite
Role Transport Management Administrator or Transport Management Logistik Planer or Stock Management Administrator or Stock Management Logistik Planer
Procedure
-
Open the Material flow data > Unit load types menu.
-
Add a load unit type with
New load unit type.
Or:
To edit a load unit type, click the tile of the load unit type.
-

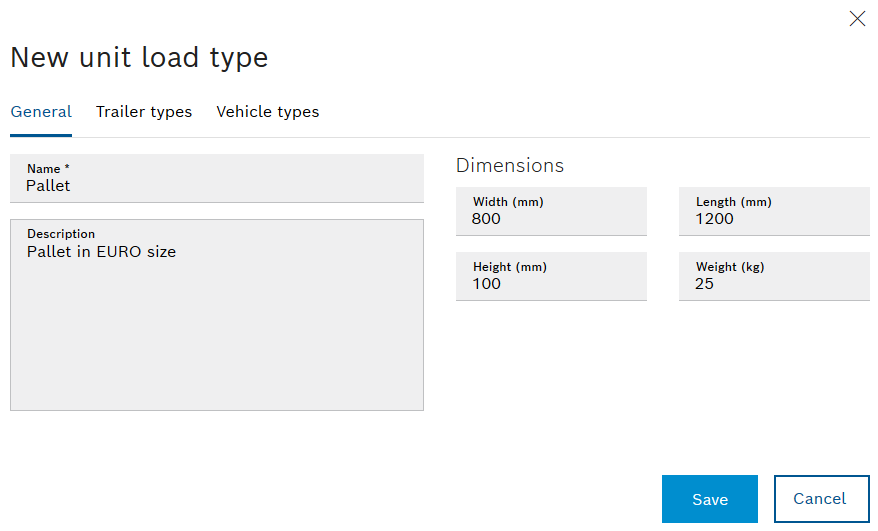

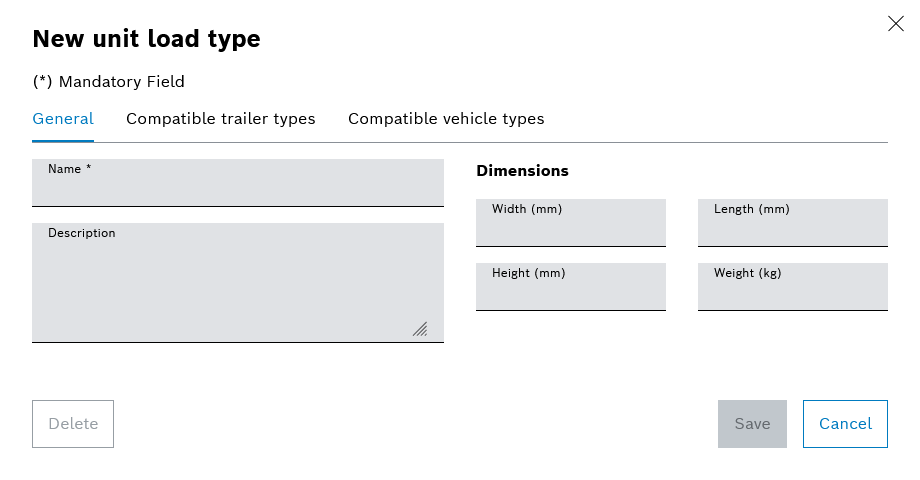

Make entries in the General tab.
-

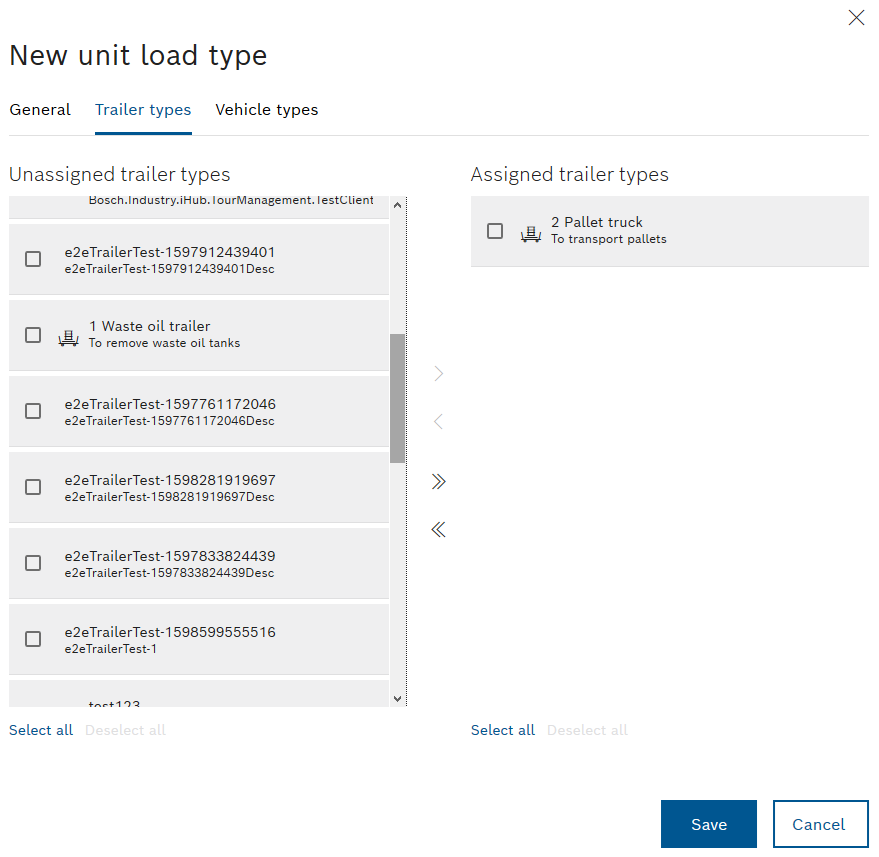

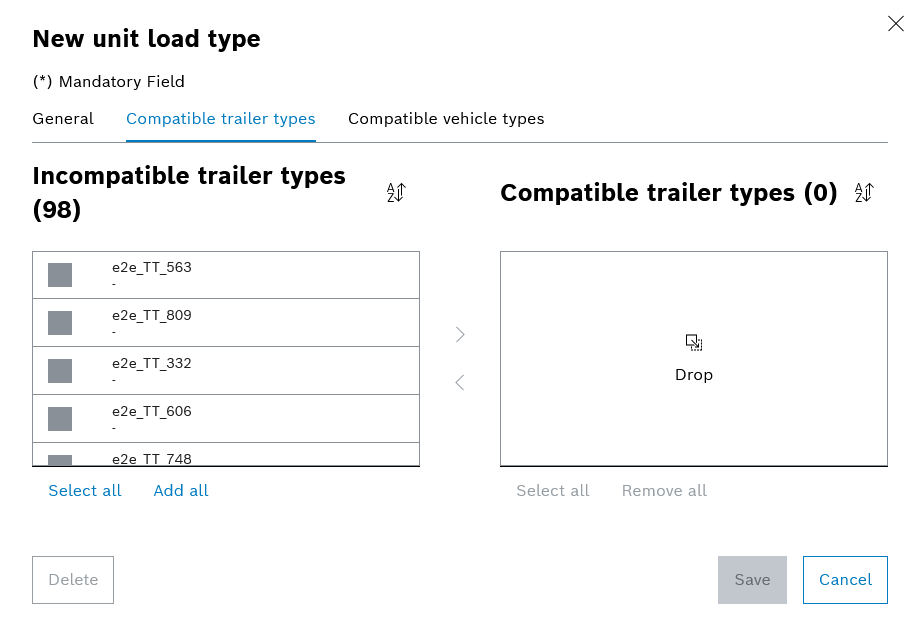

To select compatible trailer types, select the Compatible trailer types tab.
-
Select compatible trailer types:
-
: Move all trailer types to the Compatible trailer types area. -
: Move all trailer types to the Incompatible trailer types area. -
Select all : Select all trailer types in the Incompatible trailer types or Compatible trailer types area.
-
Delete selection: Deselect all trailer types in the Incompatible trailer types or Compatible trailer types area.
-
: Move selected trailer types to the Compatible trailer types area. -
: Move selected trailer types to the Incompatible trailer types area.
-
-

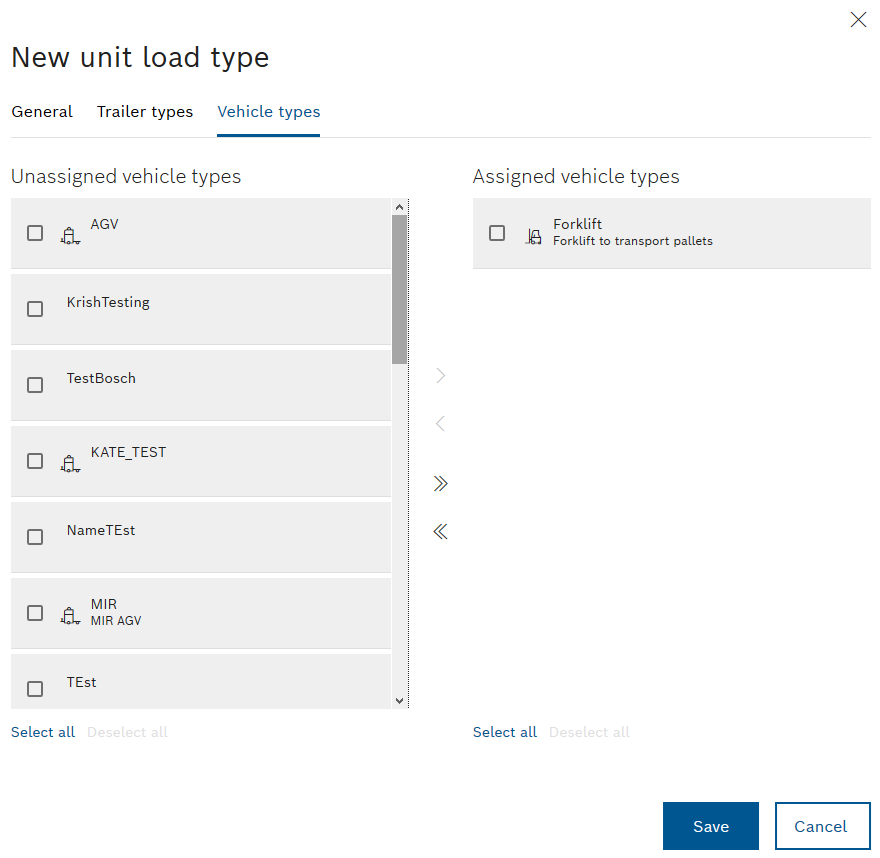

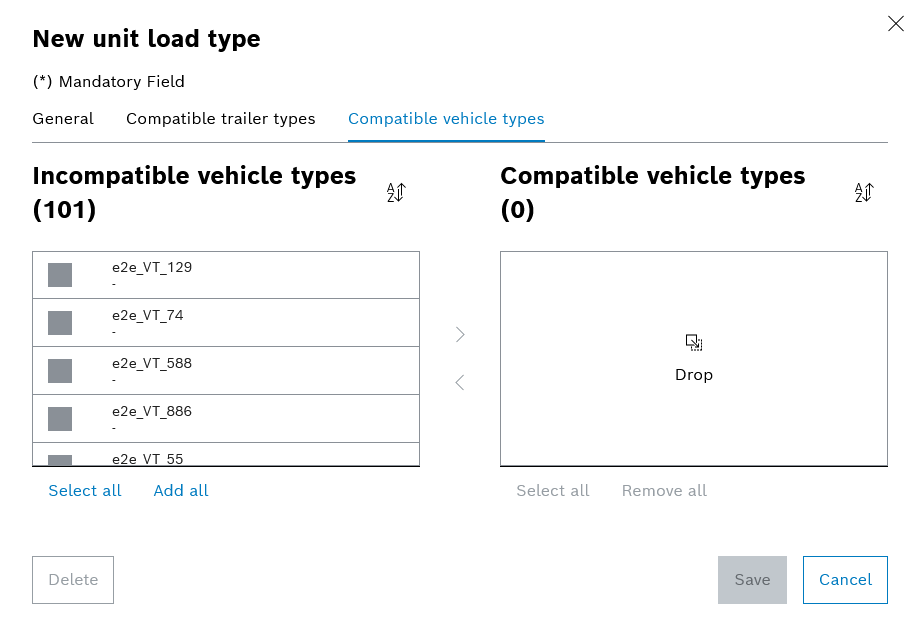

To select compatible vehicle types, select the Compatible vehicle types tab.
-
Select compatible vehicle types:
-
: Move all vehicle types to the Compatible vehicle types area.
-
: Move all vehicle types to the Incompatible vehicle types area.
-
Select all : Select all vehicle types in the Incompatible vehicle types or Compatible vehicle types area.
-
Delete selection: Deselect all vehicle types in the Incompatible vehicle types or Compatible vehicle types area.
-
: Move selected vehicle types to the Compatible vehicle types area.
-
: Move selected vehicle types to the Incompatible vehicle types area.
-
-
Use Save to create a load unit type or save changes.
The new or edited load unit type appears in the Material flow data > Load unit types menu.
Deleting a unit load type
Prerequisite
Role Transport Management Administrator or Transport Management Logistik Planer or Stock Management Administrator or Stock Management Logistik Planer
Procedure
-
Open the Material flow data > Unit load types menu.
-
Delete the unit load type with
.Or:
Select the unit load type and in the Unit load type - <Name> dialog box, click Delete to delete the unit load type.
-
In the unit load type dialog box, click Delete to permanently delete it.
The unit load type is deleted and no longer appears in Material flow data > Unit load types.
