Coupling/Decoupling
The handling times for coupling and decoupling trailers are displayed in the Work steps > Coupling/Decoupling menu. The trailer type and location (building, hall, station, storage location) are used as criteria for the time specification. Handling times can be created, edited, and deleted.
Description of the Interaction Elements: Coupling/Decoupling
The following table describes the columns that are available with handling times for coupling and decoupling trailers.
| Column | Description |
|---|---|
Trailer type |
Name of the trailer for which the handling time is valid. |
Building |
Name of the building for which the handling time is valid. |
Hall |
Name of the hall for which the handling time is valid. |
Station |
Name of the station for which the handling time is valid. |
Storage location |
Name of the storage location for which the handling time is valid. |
Coupling time (sec) |
Time (seconds) for coupling a trailer. |
Decoupling time (sec) |
Time (seconds) for decoupling a trailer. |

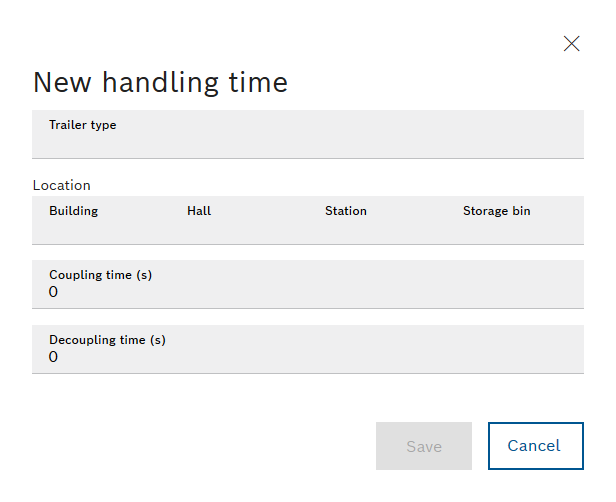

Creating a New Handling Time for Coupling/Decoupling
New handling times for coupling and decoupling trailers can be created and shown in the overview of handling times for coupling and decoupling.
|
If the handling times for coupling and decoupling are not dependent on the location where the handling takes place, no location must be specified when defining the handling time. If the handling times in a hall (e.g. hall 101) deviate from the general handling times due to local circumstances, only Hall 101 must be specified when defining the handling time. New handling times can be defined without selecting a trailer type and location. These handling times are generally valid and are always used if there are no specific handling times for the trailer type or location of the transport order. |
Prerequisite
Transport management administrator role
Procedure
-
Call up the Work steps > Coupling/Decoupling menu.
-
Use
to create a handling time.
-
Select a trailer type from the Trailer Type drop-down list.
-
Select the building from the Building drop-down list.
-
Select the hall from the Hall drop-down list.
-
Select the station from the Station drop-down list.
-
Select the storage location from the Storage location drop-down list.
-
To define the time for coupling, enter the value in the Coupling Time (s) input field.
-
To define the time for decoupling, enter the value in the Decoupling Time (s) input field.
-
Confirm the settings with Save.
The handling time is created and appears in the Work steps > Coupling/Decoupling menu.

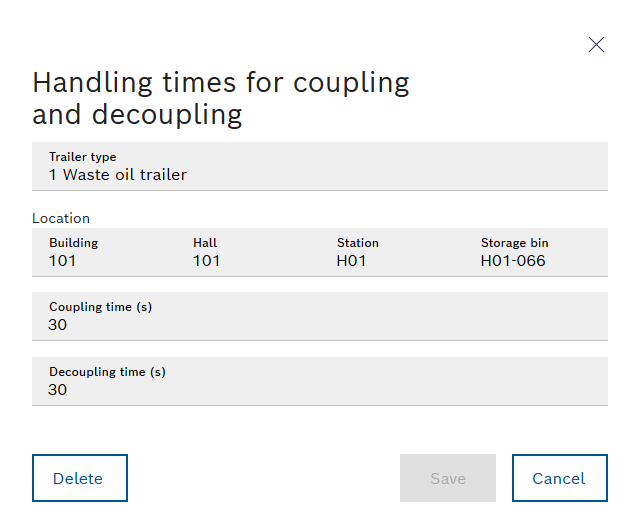

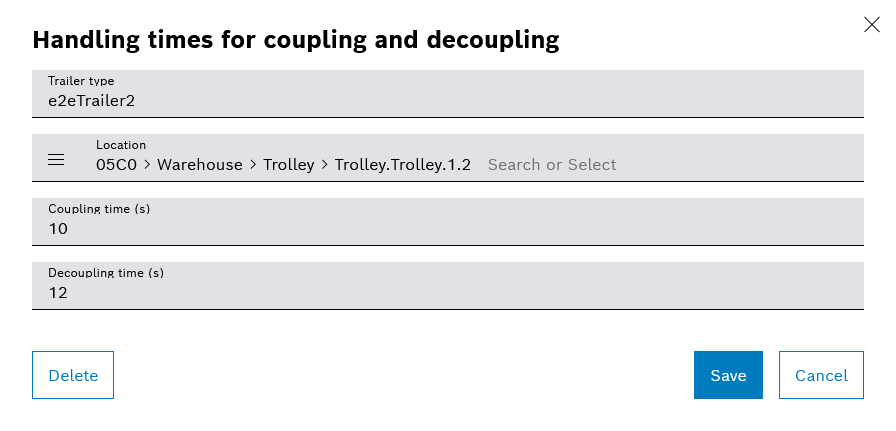

Editing a Handling Time for Coupling/Decoupling
|
If the handling times for coupling and decoupling are not dependent on the location where the handling takes place, no location must be specified when defining the handling time. If the handling times in a hall (e.g. Hall 101) deviate from the general handling times due to local circumstances, only Hall 101 must be specified when defining the handling time. New handling times can be defined without selecting a trailer type and location. These handling times are generally valid and are always used if there are no specific handling times for the trailer type or location of the transport order. |
Prerequisite
Role Transport Management Administrator
Procedure
-
Call up the Work steps > Coupling/Decoupling menu.
-
Use
to edit handling time.
-
Select a trailer type from the Trailer Type drop-down list.
-
Select the building from the Building drop-down list.
-
Select the hall from the Hall drop-down list.
-
Select the station from the Station drop-down list.
-
Select the storage location from the Storage location drop-down list.
-
To define the time for coupling, enter the value in the Coupling Time (s) input field.
-
To define the time for decoupling, enter the value in the Decoupling Time (s) input field.
-
Confirm the entries with Save.
The handling time for coupling/decoupling is changed.
Deleting a Handling Time for Coupling/Decoupling
Prerequisite
Role Transport Management Administrator
Procedure
-
Call up the Fleet data > Coupling/Decoupling menu.
-
Filter by trailer type, if necessary.
-
Delete handling time:
-
To delete a handling time, click
in the row containing the handling time. -
To delete multiple handling times, enable the checkboxes for the handling times and click
in the header. -
To delete all displayed handling times, activate the checkbox in the title bar of the list and click
in the header.
-
-
Click Delete in the dialog box to permanently delete the handling time.
The handling time is deleted and removed from the handling time list.

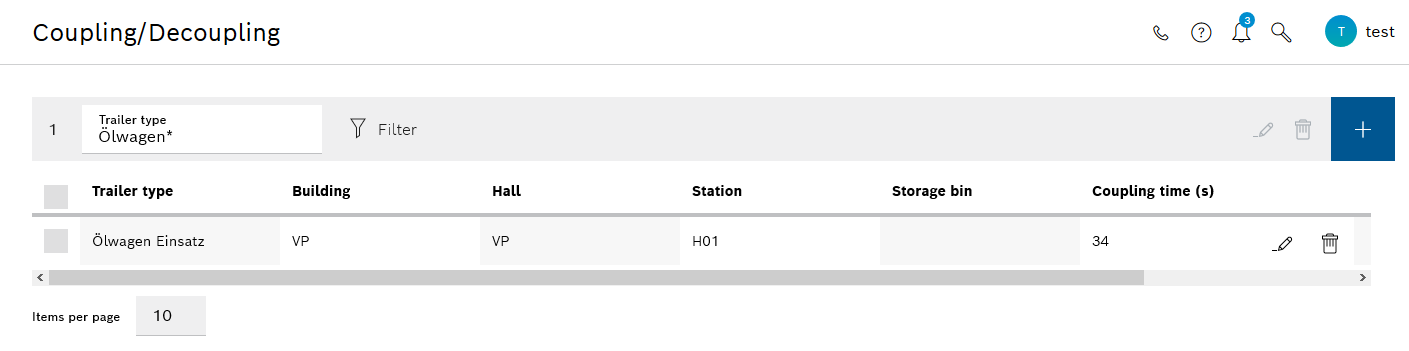

Filtering the Content of the Table
The contents of the table can be filtered by the name of a trailer type.
Prerequisite
Transport management administrator or Transport management logistics planner or Transport management read rights or Transport management shopfloor associate role
Procedure
-
Call up the Fleet data > Coupling/Decoupling menu.
-
To filter the table by the name of a trailer type, enter all or part of the trailer name into the Trailer type input field.
-
Apply the set filters with Filter
.
The table displays only the content that matches the applied filters.
