Display target cycle time history

Each target cycle time is linked to a time stamp. A target cycle time is valid for an unlimited period as of its time stamp, but its validity can be limited by entering additional target values in the future. The resulting target cycle time history is displayed in a table.

Prerequisites

Administration: User or Administration: Admin role
The Cycle Times tab opens. Cycle Times tab

Procedure

Move the mouse over the row of the type group or the process number and click on the target cycle time history icon history that appears.

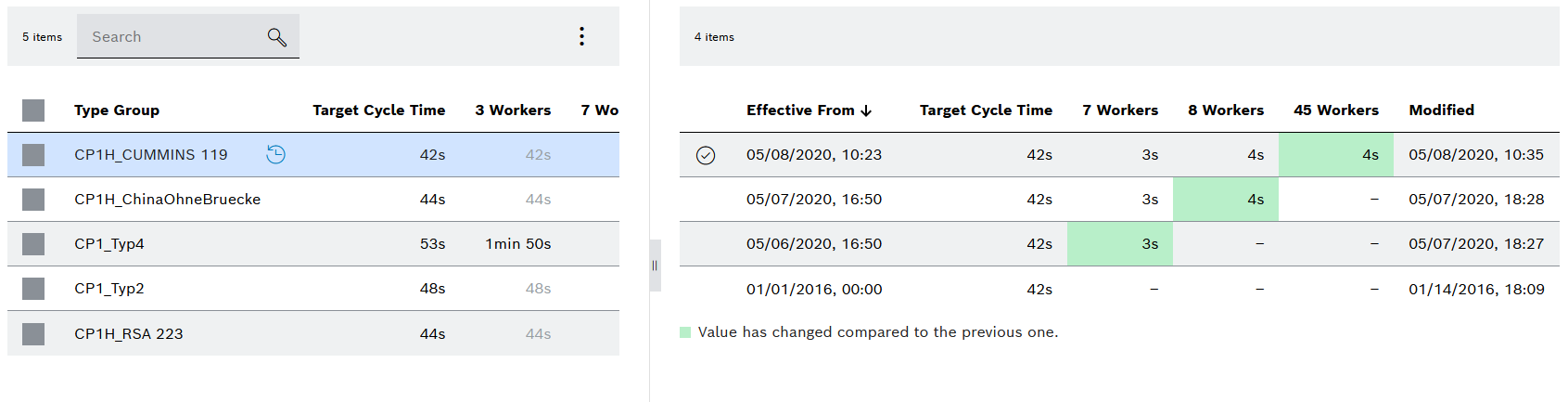

In addition to the type group table, the target cycle time history of the selected type group is displayed with all previously defined target cycle times:

history-orange A permanently visible, orange-colored history symbol indicates that the target cycle times displayed in the type group table will be overwritten by other target cycle times in the future.

alert_success_black Marking for the currently valid target cycle time of the type group or process number based on the selected time stamp in the filters. Cells in light green indicate changes to the target cycle time history.
