Station error blocklist

The Station Error Blocklist section is used to manage station error events that are to be blocked for each facility. Although these station error events are still saved, they are only displayed optionally as pseudo errors in the KPI Reporting module. Station error events that have no influence on production should typically blocked.

Prerequisites

Administration: Admin role
The Configuration tab is open. Configuration tab

Procedure

Select the Station Error Blocklist section from the section drop-down list options .

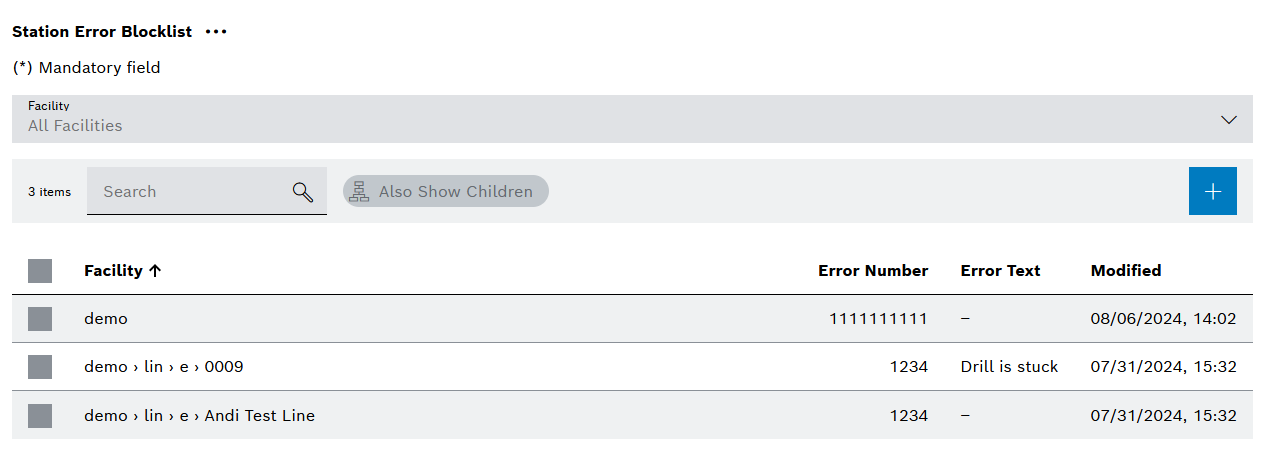

The Station Error Blocklist section opens.

Search for station error blocklist items

Station error event blocklist items can be searched for using the search field. The station error blocklist displays the search results as station error event blocklist items that contain the search expression as facility name, error number or error text.

Prerequisites

Administration: Admin role
The Station Error Blocklist section is open. Station error event blocklist section

Procedure

Enter the station error number or parts of it in the search field.

All station error event blocklist items that contain the search expression and that correspond to the remaining filter criteria ( Filter station error event blocklist items ) are displayed.

Filter station error event blocklist items

Prerequisites

Administration: Admin role
The Station Error Blocklist section is open. Station error event blocklist section

Procedure

Select the desired facility from the Facility drop-down list.
To display all station error event blocklist items, click Also show children.

By default, station error event blocklist items with facilities and their children are displayed.

All station error event blocklist items for the selected facilities and their children are displayed.

Add station error event item

Prerequisites

Administration: Admin role
The Station Error Blocklist section is open. Station error event blocklist section

Procedure

Click .

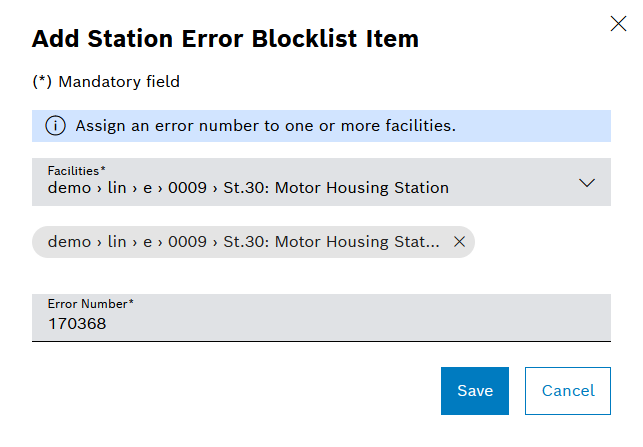

The Add station error blocklist item dialog opens.
Enter information.

To add the same station error blocklist item for more than one faclility at a time, select multiple facilities from the Facility drop-down list.
Click Save.

The station error event item is added to the blocklist.

Delete station error event items

Prerequisites

Administration: Admin role
The Station Error Blocklist section is open. Station error event blocklist section

Procedure

Search for or filter for one or more station error event items. Search for station error blocklist items , Filter station error event blocklist items
Select one or more station error event items by activating the checkbox at the beginning of the relevant row(s).
Click Delete.

The Delete station errors from blocklist? dialog opens.
Click Delete.

The station error event blocklist items are deleted.
