History

History tab

Under Order Management > History , the order management history is displayed in a table in the History tab. The history can be customized using various filters and selecting the table columns.

om_history_history_overview

Header

Element Description

Time Filter Period

Preset the time range for which you want to display the history.

Time Filter Preset

Provides a selection of predefined time ranges for quick data filtering.

Order Numbers

Filter history by orders.

Enter the complete order number or part of it.

Lines

Filter by lines.

Enable the required lines in the list box.

filter

Filter the display by actions, part numbers, and type variants.

Filtering history

export

Export the history as a CSV file (e.g. an Excel table).

Export the history

setting

Select table columns to display.

Setting up the history display

Table columns

Element Description

Order Number

Number of the order

Line

Line name

Type Number

Type number of the part

Type Variant

Designation of the type

Quantity

Quantity that is planned to be produced.

Cycle Time

Time in seconds required to produce a single part.

Action

Action refers to the changes made to the order.

Order Status

Shows the status of the order.

Old Position

Indicates the previous position in the order list when an order is moved.

New Position

Indicates the new position in the order list when an order is moved.

Created on

Shows when the entry was created.

Log history tab

Under Order Management > History , the Log history tab displays the history of messages for a line in a table. The history can be customized using various filters and selecting the table columns.

om_history_log_history_overview

Header

Element Description

Time Filter Period

Preset the time range for which the log history is to be displayed.

Time Filter Preset

Provides a selection of predefined time ranges for quick data filtering.

Lines

Filter by lines.

Enable the required lines in the list box.

filter

Filter the display by actions, part numbers, and type variants.

Filtering history

export

Export the history as a CSV file (e.g. an Excel table).

Export the history

setting

Select table columns to display.

Setting up the history display

Table columns

Element Description

Line

Line name

Station

Station of the line

Order number

Number of the order

Type number

Type number of the part

Type variant

Designation of the type

Setup

Designation of the setup required for production

Message code

Identification number of the message

Message

Message text

Produced on

Date and time of the message

Additional Information

Additional message text

Material calculation history tab

The Order Management module can calculate and provide the material demand needed for the production of an order (SrS). A connection to the Material Management , Product Setup Management and ERP Connectivity modules is required.

Under Order Management > History , the Material calculation history tab displays the material calculation history for the order on the line.

The display is divided into two parts:

  • Master view

    This shows information on material calculations for all lines.

  • Detail view

    If entries are available, detailed information on a selected material calculation for a line is displayed here. To access the detail view, select a row that has entries and click on the arrow on the far right.

om_history_material_calculation_history_summary_overview

Header

Element Description

Time Filter Period

Preset the time range for which the log history is to be displayed.

Time Filter Preset

Provides a selection of predefined time ranges for quick data filtering.

Lines

Filter by lines.

Enable the required lines in the list box.

export

Export the history as a CSV file (e.g. an Excel table).

Export the history

setting

Select table columns to display.

Setting up the history display

Master view: Table columns

Element Description

Line

Line name

Line Number

Number of the line

Number of Entries

Number of entries

Calculation Time

Time at which the material demand was calculated.

forward-right

Call up details on the material calculation.

Detail view: Table columns

Element Description

Material Number

Number of the material

Setup

Setup that must be installed for the material.

Station

Station where the material is required.

Position

Position of the station where the material is required.

Initial Material Need

Amount of the material that must be provided for production.

Mounted Material

Quantity of the material that is on the line.

Material in Storage

Quantity of the material that is in the storage.

Material in Climatic Cabinet

Quantity of the material that is in the climatic chamber.

Material To Be Delivered

Quantity of the material ordered and confirmed by the ERP system.

Splice Reserve

Minimum amount of material that must be set up in order to splice on new material and thus avoid an interruption in production.

Order Quantity

Quantity of the material that needs to be ordered by the ERP system.

Order Numbers

Number of the order

Forecast Time

Specifies the time period to be covered by the material calculation (in minutes).

This value is configured in the Forecast Duration setting.

It can be defined globally or for a specific line. If both are set, the line-specific setting takes precedence.

Forecast time can be changed for a specific material number using Configuration Rules.

Material to be Ordered

checkbox-default-checked = Material is requested automatically via the ERP system

checkbox-default = Material is not requested automatically

Active Blacklist(s)

Shows the blacklists that have been applied to the material.

Setting up the history display

Table columns can be displayed and hidden in the history.

  1. Go to the Order Management > History > History tab.

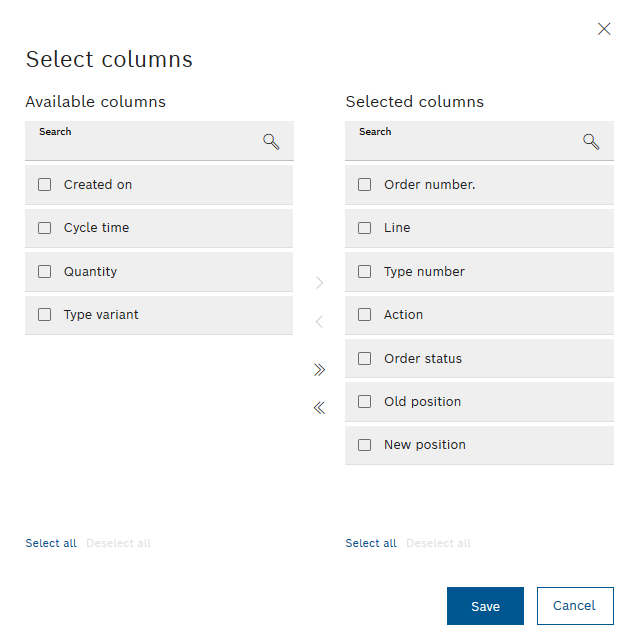

  2. In the header, click on setting to open the Select columns dialog window.

    om_history_history_select_columns

    The Available columns area contains the columns hidden in the history, and the Selected columns area contains the columns that are displayed in the history.

  3. Setting up the history display:

    • forward-right-double : Move all columns to the Selected columns area.

    • back-left-double : Move all columns to the Available columns area.

    • Select all : Select all columns in the Selected columns or Available columns area.

    • Deselect all : Deselect all columns in the Selected columns or Available columns area.

    • forward-right : Move selected columns to the Selected columns area.

    • back-left : Move selected columns to the Available columns area.

  4. In the Selected columns area, use drag and drop to arrange the columns in the required sequence.

  5. Apply the changes by clicking on Save.

The history contains the required columns in the required sequence.

Filtering history

Under the History menu item, filters for actions in order management, type numbers and type variants can be set in the History and Log history tabs.

  1. Call up the Order Management > History menu item and select the desired tab.

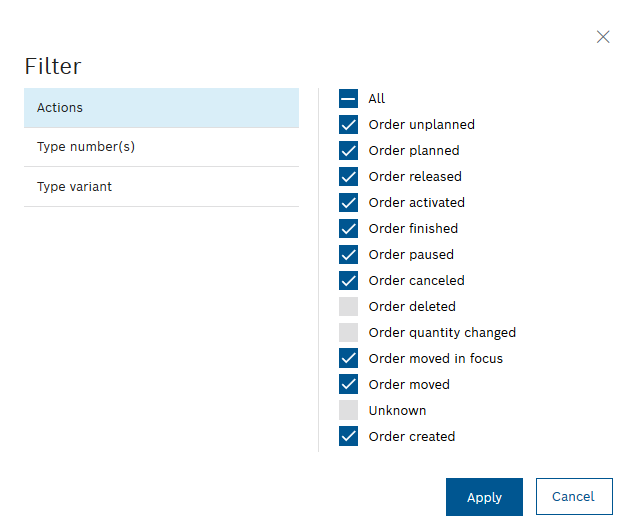

  2. Open the Filter dialog window in the header with filter Filter.

    om_history_filter_actions

  3. To set filters for actions, select the required actions in the dialog window.

    To show all actions, click on All.

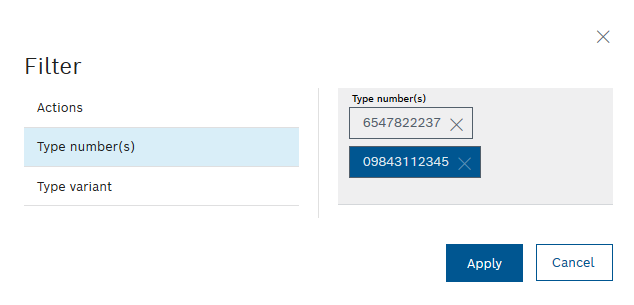

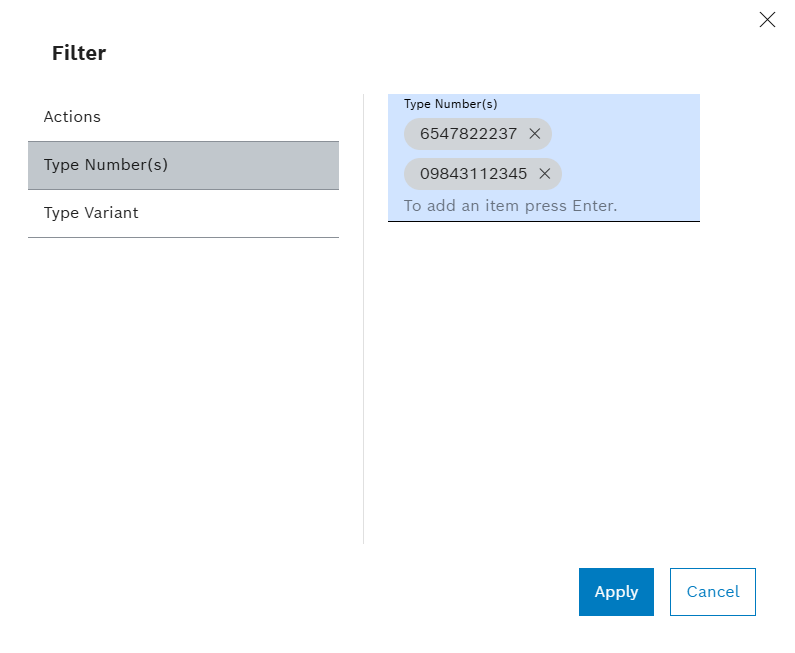

  4. Set filters for type numbers:

    om_history_filter_part_numbers

    • Click on Type number(s).

    • In the text box, enter a type number in full.

    • If necessary, press [Enter] and enter another type number.

      To delete a type number from the filter, click on close.

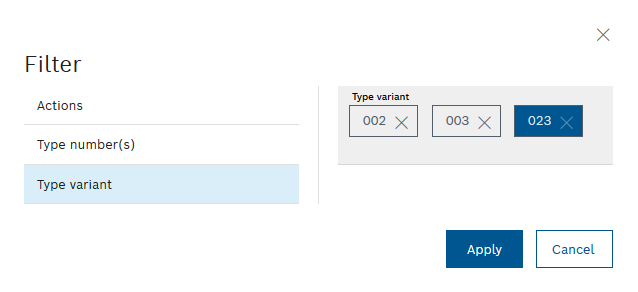

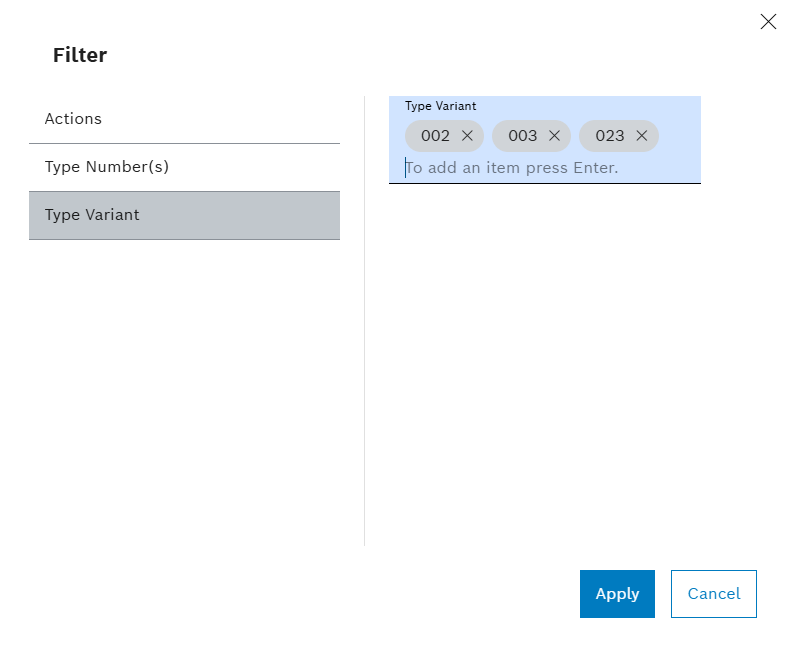

  5. Set the filter for type variants:

    om_history_filter_

    • Click on Type variant.

    • In the text box, enter a variant in full.

    • If necessary, press [Enter] and enter another variant.

      To delete a type variant from the filter, click on close.

  6. Click Apply to apply the selected filters.

The history shows all entries for the selected filters.

Export the history

Under the History menu item, tables can be exported in all tabs (History , Log history and Material calculation history).

  1. Call up the Order Management > History menu item and select a tab.

  2. If necessary, set up the history display or filter the history.
    Setting up the history display
    Filtering history

  3. In the header, click on export to open the Open order history.csv dialog window.

  4. Choose whether to open or save the file.

  5. Export the history by clicking on OK.

The exported history is opened in the required application or stored in the web browser downloads.
