Scope management

Under Line Control > Configuration , scopes are created and edited in the Scope Management tab.

The Scoping Concept for Line Control makes IAS Line Control fit for scalability. With this enhancement we delete the necessary step to redeploy the Line Control solution every time we want to migrate the next assembly line to IAS Line Control. Furthermore Line Control comes today with a highly complex deployment that is hard to understand and thus error prone which leads to broken installation and wrong behavior of the Line Control solution. The Scope configuration concept allows us to get rid of all of these mentioned points. The Scoping of the databases is a way to provide maximum scalability based on many database instances.

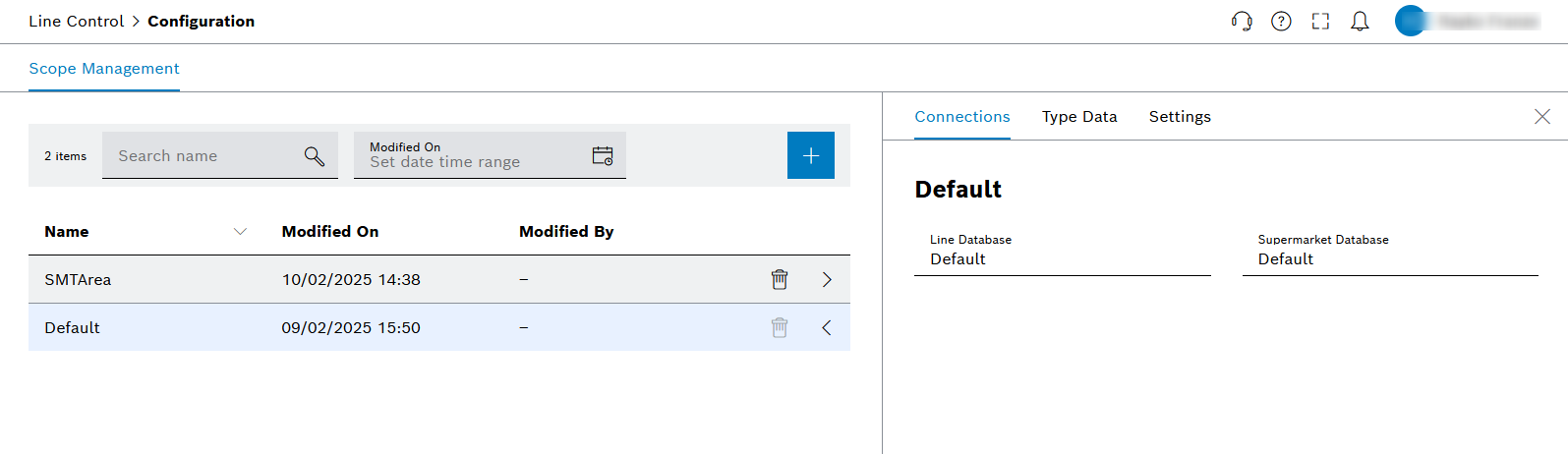

The scopes are listed in the Scope Management tab. The details area displays information about the connections and settings of the selected scope. The default scope is the scope defined by the Helm deployment. It’s Line Control database and Supermarket database are both default. And this scope can’t be deleted.

Header

Element/icon	Description
*<nnn>*	Total number of entries found
	Search by name. Enter the search term in full or in part.
	Display scopes for a selected time period. Enter the start and end dates and time to obtain the exact time range.
	Create a scope. Create scope

Element/icon

Description

<nnn>

Total number of entries found

Search by name.

Enter the search term in full or in part.

Display scopes for a selected time period.

Enter the start and end dates and time to obtain the exact time range.

add_border

Create a scope.

Create scope

Scope item

Element/icon	Description
	Delete scope

Element/icon

Description

delete

Delete scope

Create scope

Prerequisite

LC admin role

Procedure

Click on the _Line Control > Configuration > Scope Management tab.
In the header, click on to add a scope.

lc_configuration_create_new_scope_step_1

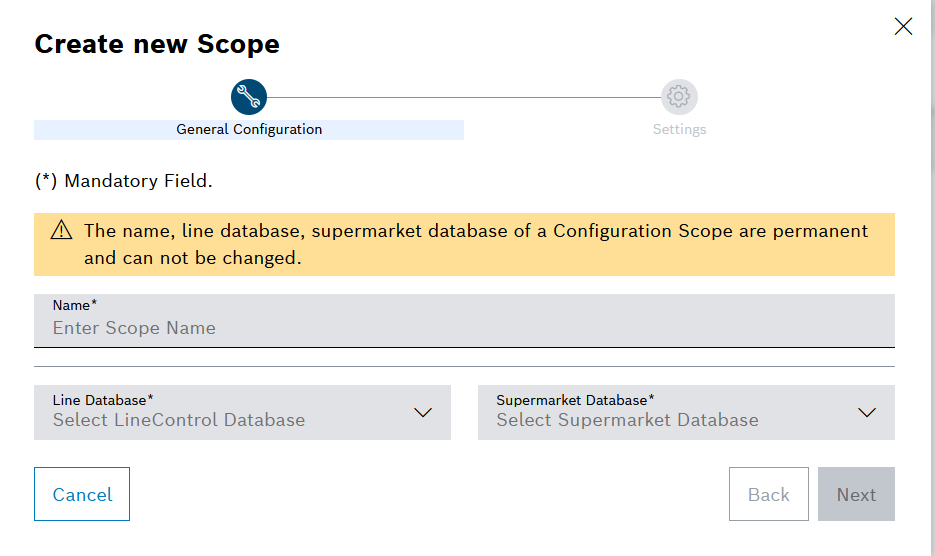

In the Create new scope dialog window, enter the name of the scope, and select Line Control database and Supermarket database.
Click Next to Setting page.

lc_configuration_create_new_scope_step_2

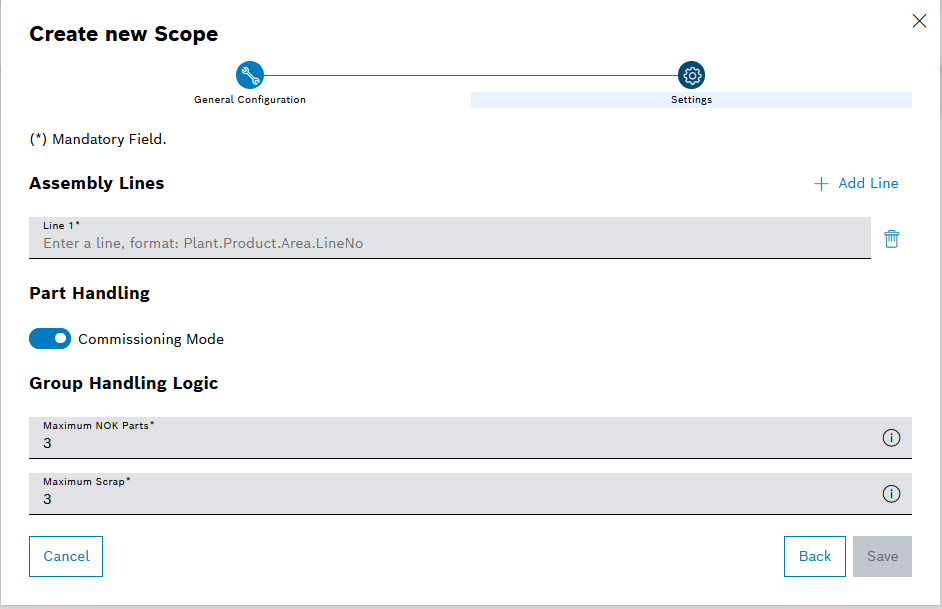

Add assembly lines following this format: Plant(1-4 digits).Product(1-3 digits).Area(1 digit).LineNo(1-4 digits).
Select whether open or close commissioning mode of part handling. It is open by default.
Enter the number of maximum NOK parts, the default number is 3. If the number of parts with NOK state higher than the defined limit, the whole group is considered NOK.
Enter the number of maximum scrap, the default number is 3. If the number of parts with Scrap state higher than the defined limit, the whole group is considered Scrap.
Use Save to create new scope.

The scope appears with the information in the Scope Management tab.

To delete the scope, continue with Delete scope

Delete scope

Prerequisite

LC admin role

Procedure

Click on the Line Control > Configuration > Scope Management tab.
In the row of the entry to be deleted, use to delete the scope, the default scope’s delete button is disabled.
To delete the scope permanently, click Delete in the dialog window.
- The scope is removed from the Line Control module and no longer appears in the Scope Management tab.

Type Data

In order to make use of timers and counters in Line Control, you need to specify timer and counter defintions. The timer and counter definitions are stored product related in the Module Nexeed IAS Setup Specs.

Line Control can be configured to replicate the necessary timer and counter specifications/definitions to its own databases so that these definitions can be used when Line Control serves the production line requests.

The configuration for this type data replication can be done in the section Type Data of the Scope Management Tab.

Products can be defined multiple times in Setup Specs. Line Control collects all timer and counter definitions from all configured areas and product families. If a timer or counter is defined multiple times in Setup Specs, the timer or counter definition that comes first in the sorting order is used.

Create Type Data Configuration

Prerequisite

LC admin role

Procedure

Click on the _Line Control > Configuration > Scope Management tab.
select the scope you want to configure
the scopes configuration will be displayed on the right side
on the right side select the tab Type Data

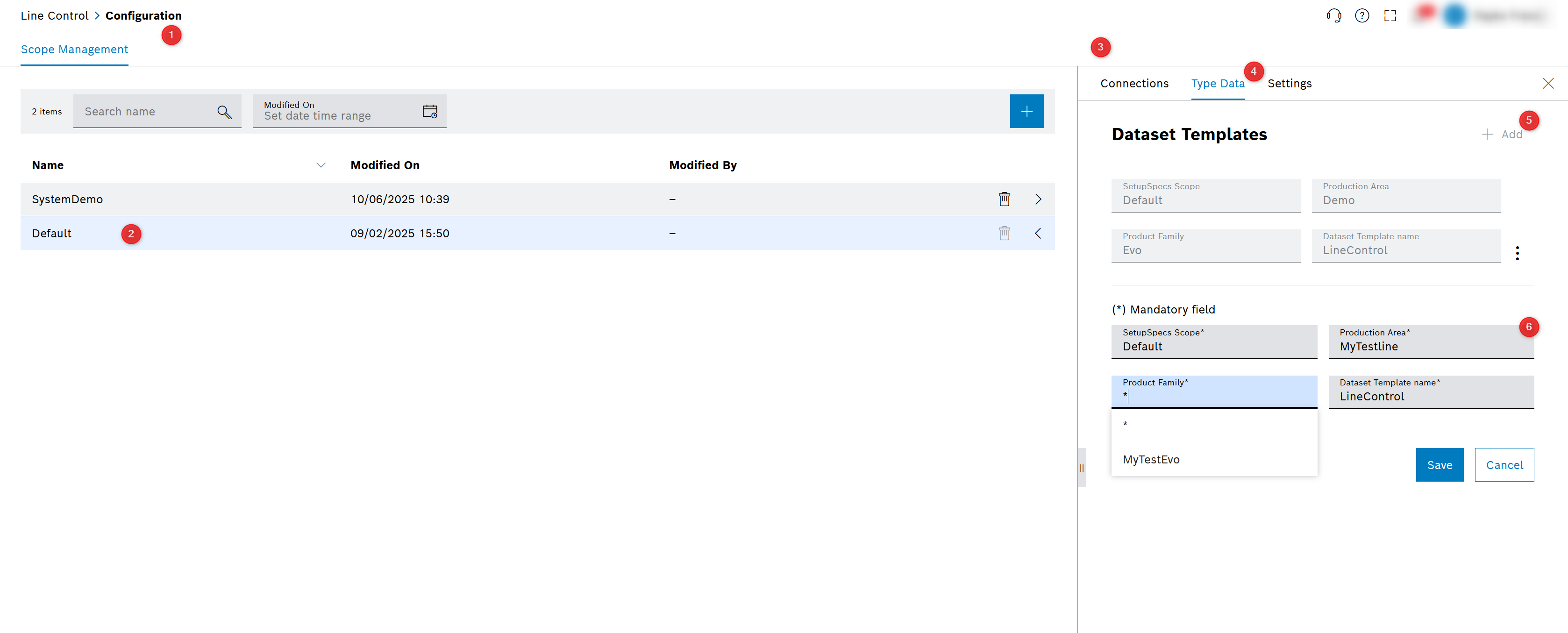

on the tab Type Data click on the to add a new row for a configuration.
in the fields select the:
1. Scope of Setup Specs
2. Production Area
3. Product Family
4. Dataset Template Name

of setup Specs to be used for retrieving the timer and counter definitions from setup Specs.

Import Type Data from Setup Specs

Prerequisite

LC admin role

Procedure

Click on the _Line Control > Configuration > Scope Management tab.
select the scope you want to configure
the scopes configuration will be displayed on the right side
on the right side select the tab Type Data

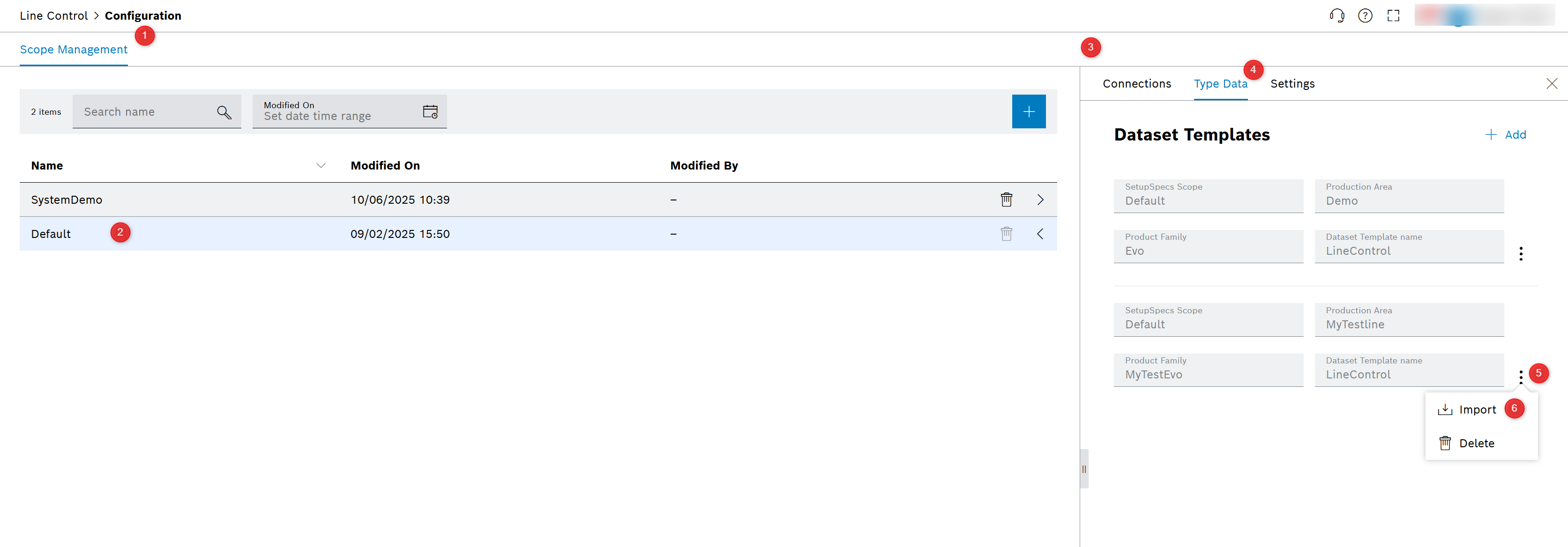

on the tab Type Data click on to open the options menu
click on Import to import the timer and counter definitions from setup Specs

Delete Type Data Configuration

Prerequisite

LC admin role

Procedure

Click on the _Line Control > Configuration > Scope Management tab.
select the scope you want to configure
the scopes configuration will be displayed on the right side
on the right side select the tab Type Data

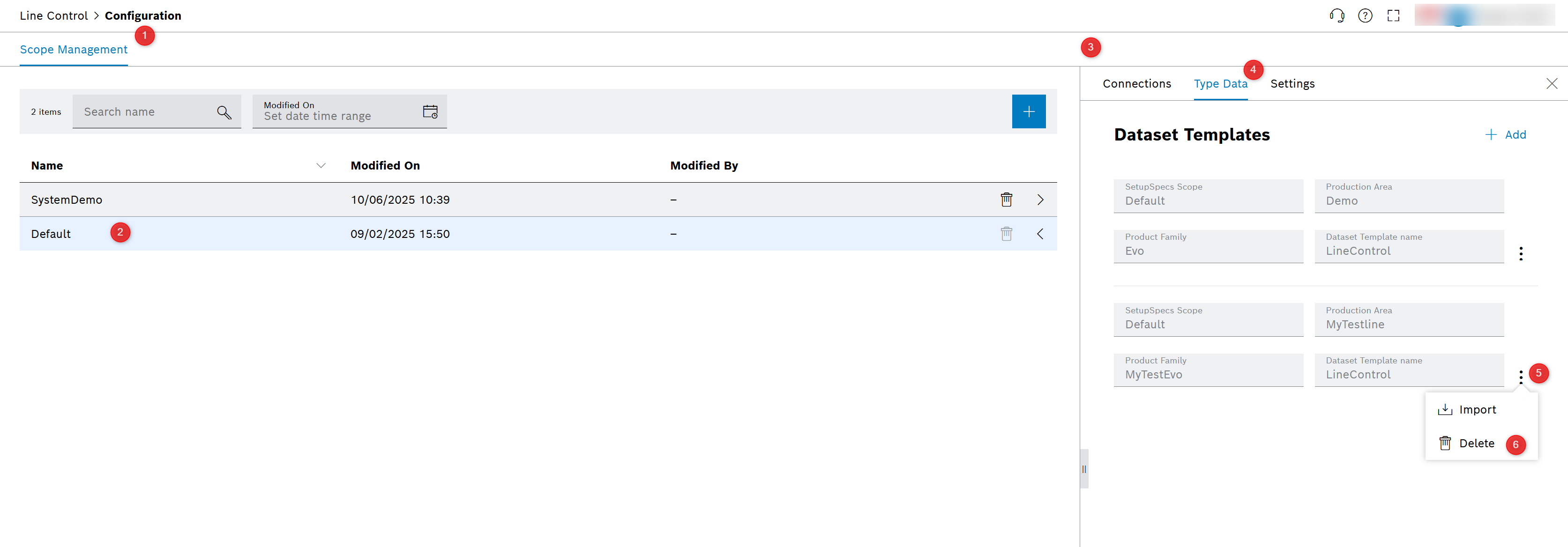

on the tab Type Data click on to open the options menu
click on Delete to delete the configuration
